Our Products
Presentation Boards, Equipment & Accessories
1 Products availableCamera

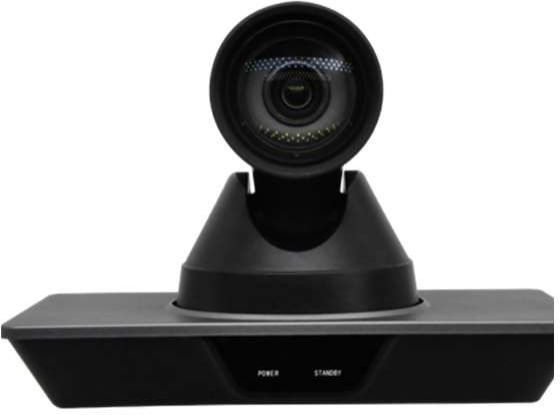

1 Products availableWe offer the best product range of Maxhub Pan Tilt Zoom Camera, Promark 4K Pan Tilt Zoom Camera and Promark HD Pan Tilt Zoom Camera.
Enjoy remote meetings with, "in-person experience" by Promark's PTZ Cameras Promark’s PTZ Cameras are high-quality video conferencing tools that offer crystal clear audio and video for remote meetings. With their advanced features, including pan tilt, and zoom controls, Promark PTZ Cameras make it easy to collaborate with remote team members and clients.
Specifications
| CAMERA | |
|---|---|
| Video Resolution | HDMI(Optional):4K60fps, 4KP29.97fps, 4KP25, 1080P30, 1080P29.29, 1080P25 |
| Sensor | 1/2.5", CMOS, Effective Pixel: 8.5M |
| Lens | 12x, f4.4mm ~ 52.8mm, F1.8 ~ F2.6 |
| Minimal Illumination | 0.5 Lux @ ( F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| White Balance | Automatic, indoor, outdoor, one-button, manual, specified color temperature |
| Backlight Compensation | Support |
| Digital Noise Reduction | 2D & 3D Digital Noise Reduction |
| Signal-to-noise ratio | 55dB |
| Vertical Angle of View | 71˚ ~ 8.2˚ |
| Horizontal Rotation Range | 42.7˚ ~ 4.5˚ |
| Vertical Rotation Range | ±170° |
| Pan Speed Range | -30˚ ~ +90˚ |
| Tilt Speed Range | 1.7˚ ~ 100˚/s |
| H & V Flip | 1.7˚ ~ 69.9˚/s |
| Image Freeze | Support |
| PoE power Supply | Support |
| Humanoid Tracking | Support (optional) |
| Number of Preset | 255 |
| USB FEATURES | |
| Support Operating System | Window 7, Window 8, Window 10, Mac OS X, Linux, Android |
| Color space/compression | YUY2/MJPEG/H.264/H.265 |
| Video Format | YUY2:up to 1080p/30; H.264 AVC: up to 2160p/60; H.264 SVC: up to 2160p/60; MJPEG: up to 2160p/30; H.265: up to 2160/60; |
| USB Audio | Support |
| USB Video Communication Protocol | UVC 1.1 ~ 1.5 |
| UVC PTZ Control | Support |
| NETWORK CHARACTERISTICS | |
| Video Coding Standard | H.264/H.265/MJPEG |
| Video Stream | The first stream, the second stream |
| Resolution of the second stream | 3840x2160, 1920x1080, 720x576, 720x480, 320x240 |
| Video bitrate Rate Control |
32 kbps ~ 102400 kbps Variable bit rate, fixed bit rate |
| Frequency | 50 Hz: 1fps ~ 50fps,60 Hz: 1 fps ~ 60fps |
| Audio compression Standard | AAC, G711A |
| Audio Bit Rate | 96Kbps, 128Kbps, 256Kbps |
| Supporting Agreement | TCP/IP, HTTP, RTSP, RTMP/RTMPS, Onvif, DHCP, SRT, GB/T28181, multicast etc |
| INPUT/OUTPUT INTERFACE | |
| HD Output | 1 channel, HDMI: version 2.0; |
| Network interface | 1 Channel, RJ45:10M/100M/1000M, adaptive Ethernet: support PoE power suppl |
Stay connected with crystal-clear video and audio: the PTZ Video Conferencing Camera High-quality video and audio performance, ensuring clear and natural communication, pan tilt, and zoom capabilities, allowing users to focus on different areas of the room and adjust the view as needed.
Specifications
| CAMERA, LENS PARAMETERS | |
|---|---|
| Image Sensor | 1/3inch HDCMOS |
| Min Lux | 0.1Lux(F1.2) |
| Zoom | 20X Optical & 12X Digital |
| Shutter Speed | 1 to 1/10000s |
| Horizontal Field of View | 61° (W) 3.64°(T) |
| Frame Rate | 1920×1080,1280×720, 640×480 |
| Focus Mode | Auto |
| Aperture Mode | Auto |
| Backlight Compensation | Support |
| Wide Dynamic | Support |
| Picture Adjustment | Brightness, Chroma, Saturation,Contrast Acutance |
| MICROPHONE PARAMETERS | |
| MIC Array Quantity | 4 |
| MIC Array Form | Linear |
| Microphone Spacing | 45.8mm |
| MIC Array Quantity | 4 |
| MIC Array Form | Linear |
| Microphone Spacing | 45.8mm |
| Sampling Rate | 16KHz/48KHz |
| Sensitivity | -26dBFs |
| Far-field Pick up Voice Distance | 0-10meters |
| Horizontal Voice Pick up Angle | Horizontal 180° |
| SNR | 65.5dB |
| Communicati on Mode | full duplexuplex |
| NTERFACE PARAMETERS | |
| Video Interface | USB3.0 HDMI |
| Video Compressed Format | MJPG/H.264 |
| Control Interface | RS-232, USB2.0, UVC |
