FUEL COMPARISON CHART
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
---|---|---|---|---|---|---|---|---|---|
FUEL |
Unit
|
Combustion Efficiency
|
Total Efficiency B X Heat transfer efficiency |
Useable Fuel Qty/ Unit A X C |
Kcal / Unit |
Useable Kcal
D X E |
Price Rs. / Unit |
Cost Paisa/Kcal
G F
|
Additional Expanse |
COAL |
1 Kg |
75% |
57% (B X 75%) |
0.57 Kg |
3500 |
1995 |
16 |
0.8 Paisa |
ID Fan extra running electricity cost + Ash handling on hourly basis + Man power |
GAS |
1 Kg |
95% |
71.25% (B X 75%) |
0.71 Kg |
9000 |
6390 |
80 |
1.25 Paisa |
NA |
Electricity |
1kW |
98% |
98% (B X 100%) |
0.98 kW |
860 |
842 |
8 |
0.9 Paisa |
NA |
The offered assortment of quality products is a result of complete quality inspections done at varied stages of sourcing raw material, which plays a vital role in delivering the finest products. Renowned for our outstanding patron care support, we have become a distinguished supplier of Triple Pass Air Heater in the market.
Applicatios :
Features :
Advantages :
Technical Specifications
Description | Unit | FLW-50 | FLW-100 | FLW-150 | FLWC-200 |
---|---|---|---|---|---|
Heat Output | Kcal/hr KWS |
50000 58 |
100000 116 |
150000 174 |
200000 232 |
Hot Air Temperature | oC | 80/150/250 | 80/150/250 | 80/150/250 | 80/150/250 |
Process Air Flow AT STP (1.2 KG/M3 Air Density) |
m3/hr | 3500/1460 | 7000/2920 | 10500/4380 | 14000/5040 |
Temperature Rise | oC | 50/120 | 50/120 | 50/120 | 50/120 |
Thermal Efficiency | - | 75% + 2% | 75% + 2% | 75% + 2% | 75% + 2% |
Fuel Consumption Max. @ 3500 KCal / Kg. |
Kg. / hr. | 18 kg. | 36 kg | 54 kg | 72 kg |
Electric Supply | 50Hz 3 Phase 4 Wire | ||||
Electric Load | HP | 3 | 5 | 7.5 | 10 |
Temperature Control | ON - Off Type | ||||
Dimensions (mm) | W | 800mm | 1200mm | 1500mm | 1750mm |
L | 800mm | 1200mm | 1500mm | 1750mm | |
H | 2600mm | 3100mm | 3100mm | 3300mm |

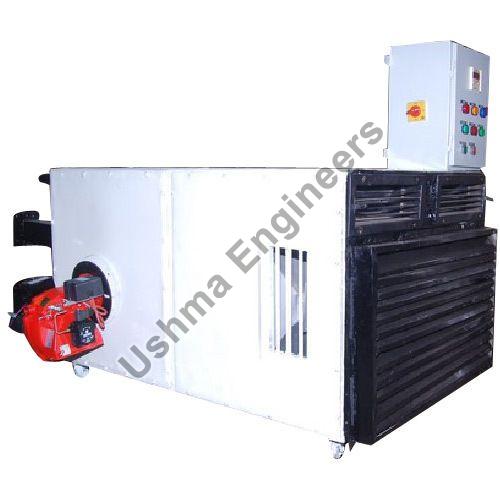

Since we have years of knowledge, our organization has arose as foremost suppliers of Cozy Air Heater The quality analysis system, we have, is headed by a pool of professional quality experts having rich domain experience.
Features :
We are backed by the most sophisticated transit system, thus buyers can stay rest assured for timely delivery of the orders. The company laid its foundation stone in Delhi(India) and caters to the market with its wide range.
Features :
Our products are the most sought after in the market, as they are specifically made as per global and domestic quality managements systems. With us, clients can stay assured for the quality of the products as we make use of the first class raw material that is tested on several measures prior to product manufacturing.
Associated with a diligent professionals and smart packaging facility, we are capable to undertake standard as well as tailored packaging requirements of the clients. Ours is a quality-driven organization that is engaged in offering only high-quality products. Thus, we use superior grade raw materials for the fabrication of our entire range.
Technical Specifications
Description | Unit | Fl-15 For 6 Colour Flexo |
Fl-25 | FL-50 | FL-100 |
---|---|---|---|---|---|
Heat Output | Kcal/hr kws |
(Sufficient for 6 colour Flexo |
25,000 29 |
50,000 58 |
1,00,000 116 |
Hot Air Temperature | 0 C | 60o C | 80/150 | 80/150 | 80/150 |
Process Air Flow At STP (1.2 kg/M3 air Density) |
m3/hr | 1500 m3/hr | 1750/730 | 350/1460 | 7000/2920 |
Temperature Rise | 0 C | 30oC | 50/120 | 50/120 | 50/120 |
Thermal efficiency | - | 92 -+2% | 92% -+ 2% | 92% -+ 2% | 92% -+ 2% |
Fuel Consumption (HSD) | kg/hr | 1.5 | 2.75 | 5.5 | 11 |
Electric Supply | - | - | 415 -+6% | 50hz -+ 3% | 3 Phase 4wire |
Electric Load | HP | 1 | 2 | 3 | 5 |
Temperature Control | Automatic | ||||
Dimensions (mm) | W | 610 | 915 | 1050 | 1145 |
L | 610 | 1500 | 1500 | 1525 | |
H | 1320 | 2000 | 2300 | 2400 |
One-stop destination for presenting quality Space Heater, we are a notable supplier in this field. We keep in consideration that the inputs (raw material) used are of incredible quality and meet the set industrial norms. Thus, the final products are as per the globally accepted quality standards.
Features :
