Unimac Control Systems Ahmedabad, Gujarat

This Gear Operated Double Flange Type Butterfly Valve manufactured by us is known for the long service life and efficiency it offers. This product prevents pressure loss and regulates the flow of various liquids and gases in the pipeline. A manufactured using high quality raw material, this product has a sturdy and corrosion resistant body. The products we offer in the market are highly appreciated for their quality. Thus in order to maintain the standard of quality, we send this product, supplied by us, for a number of quality tests.

With its swing type disc and a bolted cover, this Swing Check Valve is widely known for the performance it provides. Owing to its high quality and reasonable price, this product is manufactured by us is highly asked for in the market. The manufacturing process involves using high quality raw materials and a post the production process the end products are sent for a number of quality checks. This product has a sturdy and durable construct and is used in several industries for the purpose of controlling the flow of a number of liquids and gases.

With the assistance of our hard working professionals, we are able to provide our clients an extensive range of Water Check Valves. Available at most competitive prices, these valves are abrasion resistant and offered in various specifications to cater to diverse requirements of our clients. Known for accurate design, these valves are used in chemical and power plants.

Features :

• Wear resistance
• Capacity to withstand High temperature
• Durability

We offer an wide range of stainless steel gate valves. Following are the design features of Stainless Steel Gate Valves.

Features :

• Design according to API 600, BS EN ISO 10434 and ANSI B 16-34
• Bolted bonnet, O.S.& Y
• Solid or flexible wedge
• Full range of body and bonnet materials
• Renewable seats
• Rising stem – Non rising Handwheel
• Flanges according to ANSI B 16.5 from 2” to 24”
• Flanges according to ANSI B 16.47 from 26”
• Bw ends according to ANSI B 16.25
• Face to face according to ANSI B 16.10

Testing according to :

• API 598
• BS EN ISO 12266 Part 1

Material Range :

• Valves are also available in Super Austenitic Duplex and Super duplex Steels
• Nickel based Alloys
• Titanium and Molybdenum 6

This Y Type Strainer manufactured by us is known for its necessity in a pipeline system. This product clears the impurities in the fluid that passes through it. This product is used in several industries like chemical, caustic soda, ammonia liquid, dairy, etc. Manufactured using high quality raw materials and a number of advanced machinery, this product is known for its sturdiness and durability. The product is further sent for a number of quality checks in order to assure quality.

Features :

• Design according to ANSI B 16.34
• Full range of body and screen materials
• Bolted cover
• Flanges according to ANSI B 16.5 from 2" to 24" Flanges according to ANSI B 16.47 from 26" Bw ends according to ANSI B 16.25
• Face to face according to ANSI B 16.10
• Standard screen perforation 1.5 mm round holes
• Other perforation or wire cloth are available on request
• Ratio between filtering area and piping section 2:1 minimum

Testing according to :

• API 598
• BS EN ISO 12266 PART 1

We are one of the leading manufacturers and suppliers of a wide range of high quality Disc Check Valves. These valves are used in chemical and power plants for effective regulations the flow of various fluids. Keeping in mind the budgetary constraints of our clients, these valves are offered at most competitive prices. These products are known for their dimensional accuracy and compact design. These products are fully tested before being dispatched to our valuable customers.

Features :

• Smooth finishing
• Excellent reliability
• Dimensional accuracy
• Robust construction
• Longer life

Standard of shut off :

• Standard Valves conform to DIN 3230 Part .BN 2. Soft seated versions give zero leakage provided a
• differential pressure exists

Note - Disc Check Valves are not suitable for use where heavily pulsating flow exists, such as close to a compressor.

Standards :

• Designed and manufactured in accordance with BS 7438

Special Design Features :

• Robust
• Light Weight
• Compact
• Economical
• Quick open and close action
• Can be mounted both vertical and horizontal position
• Low pressure drop
• High Cv value
• Soft seated options available
• Viton (for oil and gasses) - Temp.limits - 15º C to 250º C
• Epdm (for water) - Temp.limits - 50º C to 150º C

Limits :

• Maximum body design PN 40
• PMO - Maximum operating pressure 40 bar g
• TMO - Maximum operating temperature
• 300º C with standard/heavy duty spring
• 400º C without spring
• Maximum cold hydraulic test 60 bar g
• Minimum operating temperature - 500º C

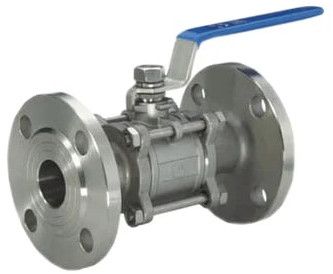

UNIMAC Ball Valves are designed and manufactured as per the latest international standards considering maximum safety, performance and long life.

UNIMAC three piece design ensures online maintanance, which saves time, energy and money. UNIMAC Ball Valves are provided with blow-out prof stem. Specially designed Stem Seal ensures Zero passing through the glandThe ball is enclosed in the body by an insert fitted along the valve's axis. This eliminates the possibility of body joint leakage and any chance of disconnection whilst in service, but when maintenance is required, the whole valve has to be removed from the pipeline.In order to insert the ball into the body, three different types of assembly exist. Not only does the type affect the ease of assembly, but it also influences the maintainability of the valve.

Our range of Lubricated Plug Valves is extensively used in chemical and oil & gas industries. These are simple to maintain and available in various specifications to cater to different needs of our clients. Acclaimed for high corrosion resistance, these valves can also be designed as per the specifications detailed by our clients.

Features :

• Fine finish
• Rugged construction
• Resistance against rust

This Y Type Strainer manufactured by us is known for its necessity in a pipeline system. This product clears the impurities in the fluid that passes through it. This product is used in several industries like chemical, caustic soda, ammonia liquid, dairy, etc. Manufactured using high quality raw materials and a number of advanced machinery, this product is known for its sturdiness and durability. The product is further sent for a number of quality checks in order to assure quality.

Features :

• Design according to ANSI B 16.34
• Full range of body and screen materials
• Bolted cover
• Flanges according to ANSI B 16.5 from 2" to 24" Flanges according to ANSI B 16.47 from 26" Bw ends according to ANSI B 16.25
• Face to face according to ANSI B 16.10
• Standard screen perforation 1.5 mm round holes
• Other perforation or wire cloth are available on request
• Ratio between filtering area and piping section 2:1 minimum

Testing according to :

• API 598
• BS EN ISO 12266 PART 1

This Wafer Type Gear Operated Butterfly Valve manufactured by us finds its application in various industries like sewage treatment, water supply, drainage, petroleum, etc. This equipment is used for the purpose of regulating water, gas, or oil in the pipeline. Manufactured using high quality raw materials and advanced machines, this product is highly preferred in the market. We send this product to our team of quality analysts for the purpose of checking it for manufacturing defects.

Manufactured as per API/BS/DIN/IS standards, our High Performance Butterfly Valves are provided with weather sealing. For longer life and optimum performance, these are designed with integrally molded elastomer body sleeve. These valves are also provided with integrally molded sleeves that resist friction caused between sleeve and disc.

Features :

• Hand lever
• Gear operation
• Pneumatic /Electrical actuators

We being one of the leading manufacturers of the Butt Weld Valves, manufacture them using high quality raw materials. Quality is something we do not compromise upon and thus process all our products through a number of quality checks. These valves have a strong construction and are dimensionally accurate. These products are used for managing the flow of gases and liquids. We provide these quality products at market leading prices.

We also offer Dual Plate Check Valves, which are manufactured in compliance with defined industry standards. Fine in finish, these are appreciated by clients not only for corrosion resistance but also for dimensional accuracy. Prior to delivery, we check these valves on well defined quality parameters.

Features :

• Great efficiency
• High durability
• Corrosion-resistance
• Excellent strength
• Smooth finish

The ball is inserted through a bonnet in the top of the valve. This facilitates in-line maintenance.We are the supplier and trader of wide range of offering an extensive range of Top entry valves. These are extensively said to regulate the flow of fluid through different pipes. These are manufactured using high grade material and latest technology under the guidance of our professionals. In addition to this, we also assure to deliver our products in a stipulated time frame.

Hydraulic valves control and direct the oil from the time it leaves , the pump until it starts on its return to the reservoir in a hydraulic circuit. The relief valve is almost always the first one encountered by the oil after it leaves the pump. From that point on throughout the circuit, the type of valve employed depends upon the design of the circuit. In a very simple circuit the second and only other valve used will probably be the master control valve. In a complex circuit the oil may flow through a sequence valve, master control valve, reducing valve, flow control valve, check valve and several others before it finally returns to the reservoir.

Spool Monoblock Hydraulic Direct Control Valve Ways 4 NPT Inlet/Outlet 3/4 Inch Flow Capacity 25 GPM Maximum Pressure 3000 PSI NPT Port 1/2 Inch Relief Valve Range 1500-3000 PSI Factory Preset Relief Valve Setting 2000 PSI @ 10 GPM Spool Action Spring Center to Neutral and 4th Position Detent Spring Center to Neutral Spools 2 Height 3 1/4 Inches Length 10 15/16 Inches Width 7 5/8 Inches

Spool Monoblock Direct Control Valve Ways 4 NPT Inlet/Outlet 3/4 Inch Flow Capacity 20 GPM Maximum Pressure 3000 PSI NPT Port 1/2 Inch Relief Valve Range 1000-2750 PSI Factory Preset Relief Valve Setting 1500 PSI @ 12 GPM Spool Action 3 Position Detent Spools 1 Height 2 3/8 Inches Length 8 Inches Width 3 7/8 Inches

• Compact construction. Low pressure drop.
• Long service life. High efficiency.
• Choice of various operation methods, such as manual, pneumatic, hydraulic, and electro-hydraulic.
• Choice of various ports and circuit valves.
• Spring return.
• High accuracy spool is hardened for long term accuracy.
• Sub-plate mounting.
• Handle shift operation.

• Butterfly Valves & Controls, as the exclusive USA Representative of Value Valves Co., supplies resilient seated wafer and lug butterfly valves, along with high-performance, triple eccentric and AWWA butterfly valves. In-house assembly of valves with lever or gear operators, electric or pneumatic actuators.
  CL600 and above with splined shaft
• Cryogenic / extension valves (NPS 3 to 54 up to CL900).
• Erosive / Corrosive service valves (e.g.: slurry service).
• Fire sentry actuator special designs
• Geothermal application valves.
• High Pressure CL150/150 up to CL2500.
• High pressure (CL600, 900, 1500) Class 5 metal seal designs.
• Inlayed T-slots
• Large size butterfly valves to NPS 96
• Noise attenuation
• Nuclear Service

The water control ball valve helps you control the flow rate of your water in-line. By turning the ball valve to the desired aperture you can regulate the discharge side of your pump for the exact flow you desire. Allows for complete shut-off for the system during maintenance.

• Approximate Inlet Measure: 3/8" I.D. (Inside Diameter)
• Approximate Outlet Measure: 1/2" I.D. (Inside Diameter)

Temperature Control Valve - Series 36R
Self-Contained Valve/Actuator/Sealed Thermal System in One Compact Unit, Direct-Acting/Reverse-Acting
Control Valve - Series Hi-Flow
Linear Characteristics, 1/2" to 4" Sizes, 2-way or 3-way
Pneumatic Pilot Valve - Series 2V
2-way or 3-way, Ideal for Air/Water/Gas/Steam Service, Bronze Body

Flow Control valvescan also work with hydraulic actuators (also known as hydraulic pilots). These types of valves are also known as Automatic Control Valves. The hydraulic actuators will respond to changes of pressure or flow and will open/close the valve. Automatic Control Valves do not require an external power source, meaning that the fluid pressure is enough to open and close the valve. Automatic control valves include: pressure reducing valves, flow control valves, back-pressure sustaining valves, altitude valves, and relief valves. An altitude valve controls the level of a tank. The altitude valve will remain open while the tank is not full and it will close when the tanks reaches its maximum level. The opening and closing of the valve requires no external power source (electric, pneumatic, or man power), it is done automatically, hence its name.

Flow Control Valve with an easy to read micrometer dial offers an amazing 1100 precise set points to accurately control flow of gases or liquids. The extremely high CV of the Magna Flow control valve enables very high flows for whatever media is being controlled, up to 200 PSIG pressure or full vacuum. Linear flow characteristics provide easy to set and precise metering of gases and liquids for almost any application where accurate results are required.

Our state of the art infrastructure and our stock of quality raw materials help us manufacture quality the Wafer Type Lever Operated Butterfly Valve we provide to our clients. This product is manufactured using high quality raw materials and a number of modern machines. This product is used in a number of industries like water treatment, sewage, oil, etc. This product is used for the purpose of regulating and cutting the supply of water, oil, or gas in the pipelines. This product, manufactured by us, is offered to our clients at a very reasonable rate.

With state of the art production facilities, we offer optimum quality valves. We are tagged as reputed manufacturer and exporter of high qualitydiaphragm valve, accurately designed and constructed with international conditions and norms. It is widely used in handling of corrosive fluids. We offer size ranges from to 14. We also offer accurate customization.

Keep in the mind the operational area of valve; we make use of the best grade material. It is used to offer throttling application for hostile liquids. It is constructed as per ASA, BS, DIN ND-10/16. We follow manufacturing standard BS 5156 and testing standard BS 6755 and API 598.

Our efficient range ofdiaphragm valvesfound its applications for viscous and sticky fluids. It is reliably used for hazardous fluids. It offers tight shut off. It is also used for slurries and water. It can be reliably used for the both, abrasive and corrosive applications. it is efficiently used for modulating.

We are known as one of the leading manufacturers and suppliers of this Wafer Type Knife EDGE Gate Valve. This product finds its application in pollution control plants, scale type power plants, paper industries etc. The materials used in the manufacturing of this product are of high quality, and post production this product is processed through a number of quality checks for the purpose of quality assurance.
