Hybridization Oven

• “TEMPO” make hybridization oven are with the forced air circulation provided by means of the motorized blower on the backside of the oven for recirculation of air which ensures a homogenous hot air mixture and exact temperature control.

Standard Models

• Inside SS with mirror polish & outside mild steel powder coated.

GMP Models

• Inside SS with mirror polish & outside stainless steel with the dull buff finish.
• Construction
• The hybridization oven is constructed with double walled and backside had triple wall in construction. The unit is insulated with high grade glass wool. The single door is fitted on the heavy hinges with inbuild silicon door gasket rotator. The racks are provided to hold the glass tubes which are various sizes and rotate at variable speed.

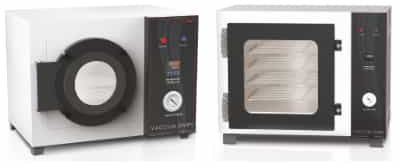

“TEMPO” make vacuum oven are designed & manufactured to comply with the requirements of the industry. It is widely applicable for drying & sterilization in fields of biochemistry, pharmacy, medicine, health, agriculture & scientific research and environment protection. It is designed especially for the drying of material which is thermos sensitive or decompounded and oxidative easily.

Standard ModelsInside SS 304 with mirror polish & outer made from mild steel (CRCA) with powder coated.

GMP ModelsInside SS 316 with mirror finish and outside made from SS 304 with the dull buff finish.

Construction“TEMPO” make vacuum oven is made of stainless steel (SS 304) inner and thick gauge mild steel (CRCA) sheet duly epoxy powder coated outer body. 4” high grade glass wool insulation for rectangular model & 3” high grade glass wool insulation for the circular model to minimized heat loss. Shelf system stainless steel trays improve heat conduction to samples.

Technical Specification

• Controlling System : Microprocessor based autotune PID temperature controller with a dual display of set value & process value for precise control of temperature.
• Heating System : Heating element made from best quality Kanthal DSD wire is used to develop unique temperature inside the chamber.
• Insulation : 4” high grade glass wool insulation for rectangular model & 3” high grade glass wool insulation for the circular model to minimized heat loss.

Features

• The toughened glass window in the door to allow viewing of samples inside the chamber.
• Secure door latch & silicon gasket on the vacuum chamber to tight seal & maintain leak rate less than 1Hg. per 24 hour period.
• Specially designed stainless steel rod trays ensure uniform temperature distribution.

Safety FeaturesSafety cum standby thermostat to cut off the heater supply in case of overshoot of temperature.

Optional Features

• Data logger
• CFR 21 part 11 compliance software for data logger
• Safety digital temperature controller
• Timer

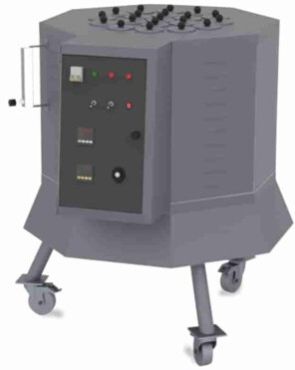

“TEMPO” make multicell ageing oven suitable for ageing test of PVC & rubber as per BS 903 part A 19 method A for rubber. BS 6746 (1976) method E for PVC. It confirms to IS 3400 (Part IV) 1978.

Standard ModelsInside S.S. 304 with mirror polish & outside mild steel powder coated.

GMP ModelsInside S.S. 316 with mirror polish & outside stainless steel 304 with the dull buff finish.

ConstructionSolid cast aluminum main body.

Technical Specification

• Controlling System : Imported microprocessor based autotuned PID controller with CE mark & dual display of set value & process value for precise control of temperature.
• Thyristor Drive : An additional Thyristor Circuit reduces energy consumption with results into decrease in electricity bills.

FeaturesSafety cum stand by a thermostat to cut off the Heater supply in case of temperature overshoot.
Diaphragm pump at bottom of the chamber develops unique preheated airflow system which ensures maximum uniform temperature condition inside each cell changes per hour through all the cells. Rotameter with needle value to control the rate of flow of air. A small brushless diaphragm pump, no chance of generating ozone. Airflow is regulated through a rotameter of suitable range. The unit is supplied with castor wheels for ease of movement. Supplied complete with a diaphragm pump, rotameter & air filter. Each cell is provided with a double lid.

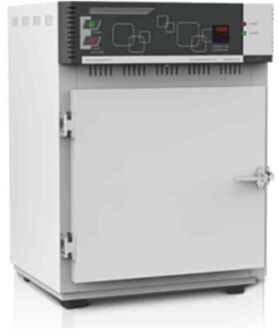

Natural convection ovens are ideal for sterilization, drying, and thermal storage tasks which do not require high drying rates or special time parameters. These ovens are made of double walled construction. The unit is insulated with 3” thick high grade glass wool insulation. Single door is tted on heavy duty hinges. The unit is provided user friendly adjustable stainless steel rod trays.

Standard ModelsInside SS 304 with mirror polish & outside mild steel powder coated.

GMP ModelsInside SS 316 with mirror polish & outside stainless steel 304 with the dull buff finish.

ConstructionThe double wall construction. The 3” thick glass wool insulation ensures stable temperature with reduced energy consumption. Heating elements made from the best quality Kanthal DSD wire are used on refractory supports.

Technical SpecificationThe temperature is controlled by means of imported microprocessor based autotuned PID controller to avoid overshoot. CE marked & dual display for set value & process value.

Safety FeaturesAdditional safety thermostat is used to cut off the heater supply in case the temperature is overshot. The single door is fitted on the heavy hinges and specially designed stainless steel rod trays are used to ensure uniform temperature distribution.

Hot air ovens use dry heat sterilization. “TEMPO” make lab precision oven (hot ait oven) uses forced air circulation method to get the desired temperature profile. In the dry heat sterilization process, the material used for heating has the characteristics of a high melting point and it will not catch fire or changes its form while heating at a higher temperature. To ensure the homogeneous hot air mixture inside the oven, a motorized blower is fitted on the top of the chamber which ensures the exact temperature inside the chamber.

Standard ModelsInner chamber made of stainless steel (SS304) mirror finish and outer GI duly powder coated.

GMP ModelsInner chamber made of stainless steel (SS304) mirror finish and outer GI duly powder coated.

Construction “TEMPO” laboratory precision oven (hot air oven) is made up of triple-walled construction. The cabinets are made using stainless steel material. A single door is provided which is fitted on the heavy hinges and provided the required gasket to reduce the leakage. The 3″ thick glass wool insulation is provided to prevent heat loss. The heat is generated inside the oven using the tubular air heaters fitted on both sides of the chamber. The air circulation is achieved by using the fan which is run by using the motor. The specially designed stainless steel rod trays are provided to place the material for heating. The microprocessor-based autotune PID controller is used to maintain the desired temperature range during the operation. It helps to protect your oven from temperature overshoot. A timer is provided to showcase the results.

Technical Specification

• Controlling System : Imported microprocessor-based autotune PID controller with CE mark and dual display of set value and process value.
• Heater : SS tubular heating elements used on sidewalls to maintain uniform condition inside the chamber.
• Air Circulation : Motorized blower on the top side of the chamber develops a unique airflow system which ensures maximum uniform temperature distribution inside the chamber. The unique airflow ensures that there is a quick recovery after the doors are opened.

FeaturesSingle door fitted on the heavy cast and chromium-plated hinges with spring and roller type latch with an asbestos gasket to avoid heat loss. Specially designed stainless steel rod trays ensure uniform temperature distribution.

Safety FeaturesSafety standby thermostat to cut off the heater supply in case of overshoot of temperature.

Optional Features

• Data logger
• Data scanner complete with sensor
• CFR 21 part 11 compliance software for data logger/scanner
• Safety digital temperature controller
• Timer

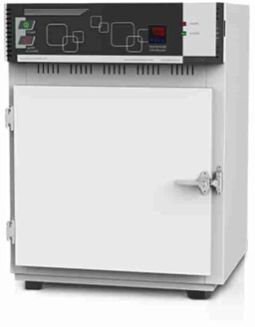

Lab Precision Oven 300°C

• “TEMPO”make lab precision ovens are provided with the forced air circulation provided by means of motorized blower fitted on the oven for recirculation of air to maintain the uniformity of temperature inside the chamber.

Standard Models

• Inside SS 304 with mirror polish & outside mild steel powder coated.

GMP Models

• Inside SS 316 with mirror polish & outside stainless steel 304 with the dull buff finish.

Construction

• Ovens are made of double wall with backside triple. The unit is insulated with 3″ high grade glass wool. The door is fitted on heavy hinges. The unit is provided with adjustable stainless steel rod trays.

Technical Specification

Controlling System

• Microprocessors based autotune PID temperature controller with a dual display of set value & process value for precise control of temperature with PT 100 sensor is used for temperature.

Air Circulation

• The motorized blower with the insulated shaft at the backside of the chamber develops a unique airflow system which ensures maximum uniform temperature inside the chamber. The unique airflow ensures quick recovery after the door opening.

Heating System

• SS tubular heating elements are used on the back walls to maintain uniform condition inside the chamber.

Features

• Safety cum stand by a thermostat to cut off the heater supply in case of temperature overshoot. The specially designed stainless steel ensures uniform temperature distribution.

Optional Features

• CFR 21 part 11 compliance software for data logger
• Data scanner complete with sensor
• Data logger
• Safety digital temperature controller
• Timer
• Documentation IQ, OQ and PQ provided with validation

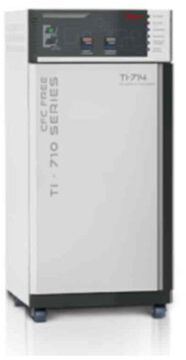

Humidity Oven

• “TEMPO” make humidity ovens are manufactured and design for electrical & electronic industries for testing components and equipment as per ISO 9000:2015 Testing cement, batteries, cigarettes, or any other material demanding controlled temperature & humidity. It is also used in industries like pharmaceutical for accelerating ageing, food & beverage, packing, department of botany, cytology, plant & animal breeding.

Standard Models

• Inside SS 304 with mirror polish & outside mild steel powder coated.

GMP Models

• Inside SS 316 with mirror polish & outside stainless steel 304 with the dull buff finish.

Construction

• “TEMPO” make humidity oven is double walled constructed with backside as a triple wall. The 3” thick PUF insulation ensures a stable temperature and humidity & also a reduction in energy consumption. The motorized blower is at the back side of the chamber to develops a unique air flow system which ensures maximum uniform temperature & humidity condition inside the chamber. The unique air flow assures quick recovery after door openings.

Technical Specification

Controlling System

• The temperature is controlled by means of imported microprocessors based autotune PID controller with CE mark & dual display of set value & process value. The humidity is controlled by means of imported microprocessors based autotune PID controller with CE mark & dual display of set value & process value with direct %RH.

Air Circulation

• The motorized blower at the backside of the chamber develops a unique air ow system which ensures maximum uniform temperature and humidity condition inside the chamber. The unique airflow assures quick recovery after the doors are opened.

Heating System

• High-quality U shape SS tubular heaters are used for better heating.

Humidity System

• Steam injection system (non-condensing type) & reservoir tank with water level arrangement with indicator.

Features

• The full view observation glass/acrylic door a gasket is provided to observe sample inside the chamber. The interior working area is illuminated.
• The specially designed adjustable stainless steel rod trays ensure uniform temperature distribution.

Safety Features

• Additional safety thermostat to cut of dry heater supply in case temperature of overshoot. Float switch to cut off the wet heater supply in case of low water level. Audio & visual alarm are provided.

Optional Features

• CFR 21 part 11 compliance software for data logger
• Data logger
• Data scanner complete with sensor
• SMS mobile alert system
• Door access security system
• Safety digital temperature controller
• Timer
