Tempo Instruments Private Limited

Mira Road, Mumbai, Maharashtra

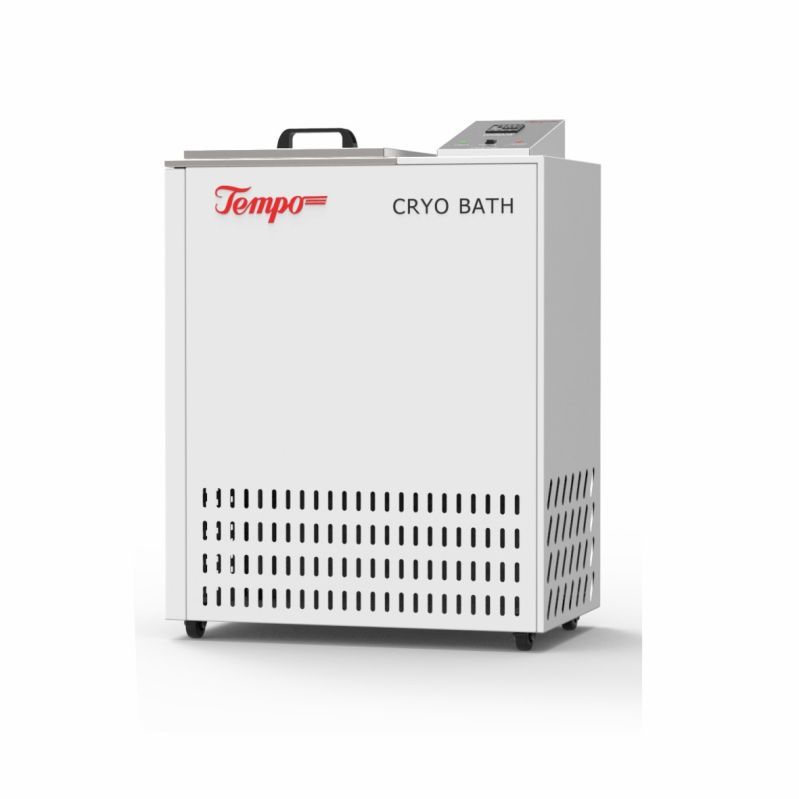

TEMPO” make cryo baths are designed for research work with the desired temperature with high accuracy. The temperature is controlled by means of microprocessor based PLD controller with an accuracy of 1°C. The unit is provided with a circulating pump to ensure uniform temperature.
“TEMPO” cryo bath offers a combination of contemporary cabinet design, advanced microcontroller and a range of accessories to suit your specific laboratory or process application. The baths are provided with high strength cabinet construction with stainless steel interior tanks withstand the most critical applications in demanding environments. The unit is mounted on castor wheels for ease of mobility.

Standard ModelsInside SS 304 and outside mild steel powder coated.

GMP ModelsInside SS 316 and outside stainless steel 304 with the dull buff finish.

ConstructionDouble walled construction with inner SS argon welded one-piece pot to avoid leakages. 2″ thick insulation ensures stable temperature with reducing energy consumption. CFC free hermetically sealed Emerson Copland make compressor for better cooling with R134 A (eco friendly) refrigerant with time delay to safeguard the compressor.

FeaturesSafety alarm with temperature overshoot and undershoot. Compressor ON delay timer (2 min) to safeguard the compressor.

Optional Features

• Data logger
• CFR 21 part 11 compliance software for data logger
• Safety digital temperature controller
• Timer

“TEMPO” low temperature baths are designed for research work at the desired temperature with high accuracy. The temperature is controlled by microprocessor based PID controller with an accuracy of ±1°C. The unit is provided with a circulation pump to ensure uniform temperature.

Low temperature bath offers a combination of contemporary design, advance microcontroller and a range of accessories to suit your specific laboratory or process application. High strength cabinet construction with stainless steel interior tanks withstand the most critical applications in demanding laboratory environments. The unit is mounted on castor wheels for ease of mobility.

Standard Models

• Inside SS 304 with mirror polish & outside mild steel powder coated.

GMP Models

• Inside SS 316 with mirror polish & outside stainless steel 304 with the dull buff finish.

Construction

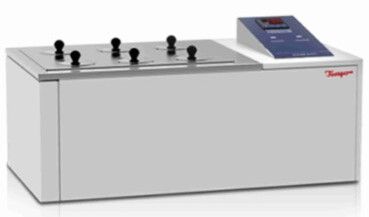

“TEMPO”  made MBRT water bath are made up of the double wall. The interior is made from SS 304 an exterior from MS duly powder coated. The temperature is controlled by means of PID controller cum indicator.

Features

• Lower water level cut off system
• Flat lid
• Pyramidal lid
• Test tube rack to hold 30 test tubes
• Stirring mechanism

Details

• Tempo Water Bath have S.S. 316 Interior and S.S. 304 exterior.
• Temperature Range is from 5°C above ambient to 99°C max.
• Temperature is controlled by PID controller.
• Equipment is supplied with Pyramidal Lid.

Features

• Safety temperature controller
• Low water level indicator
• Timer with alarm
• European plug
• Stainless Steel water drainage
• IP20 protection for control panel
• Drain for water supply
• Inlet nozzle for water filling

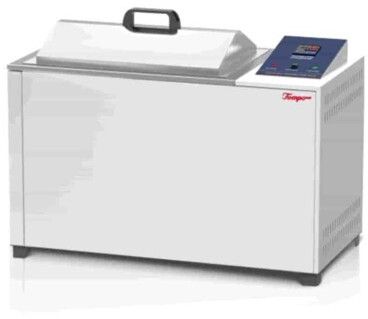

“TEMPO” make constant temperature water bath are ideal for application in refractometry, polarimetry, rotational viscometry, in biotechnology laboratories for the development of culture applications & general laboratory work. Besides it, these constant temperature water baths are useful in the chemical industry, biology, pharmacy, environmental protection, hygiene & disease control, academies and other science research and producing areas.

Standard Models

• Inside SS 304 with mirror polish & outside mild steel powder coated.

GMP Models

• Inside SS 316 with mirror polish & outside stainless steel 304 with the dull buff finish.

Construction

• Constant temperature water bath is double walled in construction. The units are insulated with high grade glass wool/PUF.

Technical Specification

Controlling System

• Two separate imported microprocessors based autotune PID controller with CE mark & dual display of set value & process value for precise control of temperature.

Heating System

SS tubular heaters (water immersion type) is used at the bottom for better heat distribution.

Water Circulation

The water circulation pump is provided for better uniformity of temperature instead of the stirrer. The side mounted circulating pump provides the minimum capacity of 15 ltr per min.

Features

• Inner SS argon welded one piece pot which avoids leakages. 2” thick insulation ensures stable temperature & reduce energy consumption.
• The circulation pump is provided for better uniformity of temperature instead of the stirrer. The side mounted circulating pump provides 15 ltr/min of capacity. The lid mounted on top is removable. The circulation pump is used for the drain (do not dry run the circulations pump).

Optional Features

• Safety digital temperature controller
• Timer
