“TEMPO” make muffle furnace are designed and manufactured to comply with the requirements of laboratory and industrial applications. It is used for engineering tests of soils and aggregates, cement testing, ashing organic and inorganic samples, gravimetric analysis, ignition tests, etc. “TEMPO” make a muffle furnace in a horizontal/rectangular model. Insulation is provided with high-grade insulation material.

Standard Models

• Outside mild steel with hammertone paint

GMP Models

• Outside stainless steel 304

Construction

• Reach 930°C for high temperature applications in a short time. This laboratory furnace is designed to operate under high temperature with minimal maintenance and higher efficiency. The high temperature ceramic fibre insulation with an advanced graded design ensures fast heat-up time and resistance to the thermal shock. The natural cooling of the outer surface reduces exterior shell temperatures and improve energy efficiency and operator safety.

• The thermocouples compensated lead wire and polarized plug for measures accurate high-temperature with a longer self-life. Removable panels for easy access to replaceable heating elements and thermocouples. The heating is achieved by silicon carbide element with easy mounting and assembly.

Technical Specification

Sensor

• The R type sensor is used for sensing the temperature.

Heating System

• High quality elements are used for better and uniform heating.

Features

• Double shell air circulating chamber for ambient skin temperature is design with lightweight insulation boards.
• Optional Features
• Data logger
• CFR 21 part 11 compliance software for data logger
• Safety digital temperature controller
• Timer

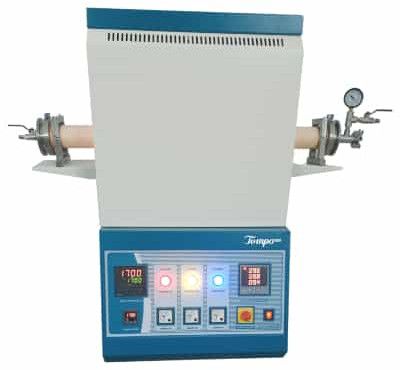

ApplicationTube Furnace is designed for R&D labs, Educational institutions, Medicine and Industry, Chemical Industries, Ceramics Industry, Biomedical Industry, Pharma Industry, Thermal Process Technology, Advanced Materials for following applications- Purification, Coating, Drying, Hardening or Ageing of samples, Annealing, Brazing, Calcination, Degassing, Sintering, Tempering, Thermocouple calibration, Testing of fuel cells, Catalyst research, Inorganic and Organic purication, Coating etc.

Features

• Maximum operating temperature range up to 1800°C.
• Available in, Horizontal operation, Vertical operation, universal operation.
• Compact design for minimum space requirement.
• Rugged and durable Construction.
• Outer casing is made up thick mild steel with duly powder coated or thick buffed stainless steel, gives long service life with extremely resistant.
• Multilayer insulation with vacuum formed ceramic fibre or refractory bricks with low thermal mass.
• Alumina/Quartz/Metal tube with two fibre plugs included.
• Inner diameter of the tube from 20 mm to 150 mm.
• Heated Length from 100 mm to 1000 mm.
• Furnace design with powerful heating elements i.e. FeCrAl, SiC and MoSi2 in all sides of the work tube providing fast heating rate.
• Fast heat up and cool down rates.
• Temperature uniformity +/- 5°C.
• Temperature control with PID controllers.
• Power control with solid state relays or Thyristor units for very precise temperature Control, wear-free and noiseless.
• High mechanical durability, short heating cycle and low power consumption.

Optional Features

• Multi-zone temperature control.
• Touchscreen temperature controller.
• Over Temperature Limiter.
• Vacuum pump with fittings.
• Gas and Vacuum Compatible Flanges, Water cooled flanges with chiller.
• Door flanges with hinges.
• Gas mixing system.
• Digital/Analog flow meters.
• Port for additional thermocouple on the flange.
• Process observation window on flange.
• Buzzer, Digital timer, Emergency shut down.
• Data Recorder.
• RS232/RS485/USB interface.
• Calibration of temperature measurement systems.
• Table/Stand for supporting the systems.
• Data Acquisition System (DAS) through software.
• UPS Systems.
• Customization as per user requirement

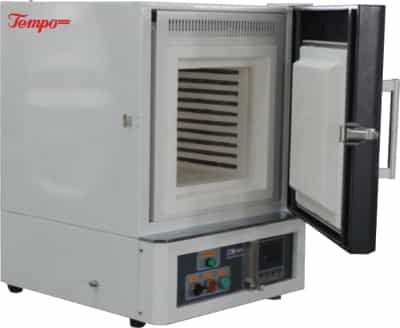

ApplicationMuffle Furnace is designed for R&D labs, Educational institutions , Medicine and Industry, Chemical Industries, Plastic Industry, Moulding Industry, Glass Industry, Rubber Industry, Ceramics Industry, Biomedical Industry, Paint Industry, Textile Materials, Pharma Industry, Dental Labs, Thermal Process Technology, Advanced Materials for following applications, Testing, Analysing, Ashing, Drying, Sintering, Annealing, Melting, Tempering, Hardening, Dental Porcelain, and Crystalizing etc.

Features

• Maximum operating temperature range up to 1700°C.
• Dimensions from 1 up to 200 litres.
• Rugged and durable construction.
• The outer casing is made up of thick mild steel with duly powder coated or thick buffed stainless steel, gives long service life with
• extremely resistant.
• Multiplayer insulation with vacuum formed ceramic fibre or refractory bricks with low thermal mass.
• Parallel guided swing aside door design.
• Furnace design with powerful heating elements i.e. FeCrAl, SiC and MoSi2 on both sides providing a fast heating rate.
• Fast heat up and cool down rates.
• Temperature uniformity +/- 5°C.
• Temperature control with PID controllers.
• Power control with solid-state relays or Thyristor units for very precise temperature Control, wear-free and noiseless.
• High mechanical durability, short heating cycle and low power consumption.

Optional Features

• Over Temperature/Over Current Limiter
• Touchscreen temperature controller
• Port for additional thermocouple.
• Process observation window.
• Chimney for forced air extraction.
• Additional ceramic/SiC bottom plate.
• Buzzer, Digital timer, Emergency shut down.
• Data Recorder.
• RS232/RS485/USB interface.
• Calibration of temperature measurement systems.
• Gas purging facility Table for supporting the systems.
• Data Acquisition System (DAS) through software.
• UPS Systems.
• Customization as per user requirement.
• Caster wheels with brakes.
• Door safety switch.

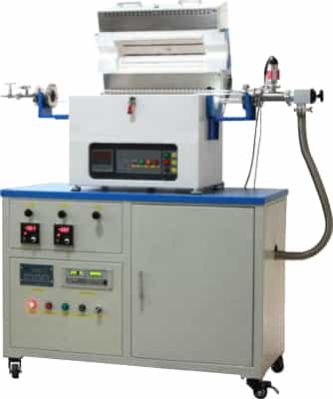

ApplicationCVD Furnace is designed for R&D labs, Educational institutions, Medicine and Industry, Aerospace industry, Semiconductor industry, Chemical Industries, Biomedical Industry, Pharma Industry, glass Industry, Thermal Process Technology, Advanced Materials for following Chemical analysis, Graphene, Optical Fibre, Composition, Deposition, Diffusion, Coating, Degassing, Sintering, Catalyst research, Carbon nanotechnology process etc.

Features

• Maximum operating temperature range up to 1200°C.
• The CVD furnace workstation consists Split Tube/Tube furnace, a precision mass ow gas control station, a high vacuum station, and other assembling parts.
• The mass fow gas control station mixes multiple gases together and allows the mixed gas to ow into a fused quartz tube inside
• the furnace.
• Processing tube is included Inner diameter of the tube from 40mm to 150mm, with vacuum stainless steel anges, Vacuum compatible sample puller rod, vacuum valves, Viton O-rings, Pirani/Penning gauge and Mechanical pressure gauge.
• Heated Length from 100mm to 1000mm.
• Capable of 10 mbar vacuum in a clean empty work tube. -5
• High vacuum station consists turbo molecular pump/Rotary vane pump with related vacuum fittings.
• Mass flow gas control station consists multiple Mass ow controllers, Gas mixing system and related pipe fittings.
• Compact design for minimum space requirement.
• Rugged and durable Construction.
• Outer casing is made up thick mild steel with duly powder coated or thick buffed stainless steel, gives long service life with extremely resistant.
• Multilayer insulation with vacuum formed ceramic bre or refractory bricks with low thermal mass.
• Furnace design with powerful heating elements i.e. FeCrAl and SiC in all sides of the work tube providing fast heating rate
• Fast heat up and cool down rates.
• Temperature uniformity +/- 5°C.
• Temperature control with PID controllers.
• Power control with solid state relays or Thyristor units for very precise temperature Control, wear-free and noiseless.
• High mechanical durability, short heating cycle and low power consumption.

Optional Features

• Multi-zone temperature control
• Touchscreen temperature controller
• Over Temperature Limiter.
• Door flanges with hinges.
• Water cooled flanges with chiller.
• Digital/Analog flowmeters.
• Port for additional thermocouple on the flange.
• Process observation window on flange.
• Buzzer, Digital timer, Emergency shut down.
• Data Recorder.
• RS232/RS485/USB interface.
• Calibration of temperature measurement systems.
• Data Acquisition System (DAS) through software.
• UPS Systems.
• Customization as per user requirement.
• Caster wheels with brakes.

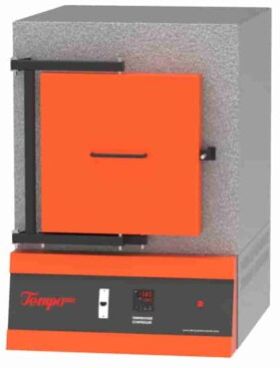

“TEMPO” laboratory furnaces are designed for higher temperature applications. The design is based on the highest standards for quality with efficient high-temperature use and minimal maintenance. Silicon carbide element with easy assembly. These lab furnaces are Ideal for rapid cycling over extended periods.
The advance design feature provides fast heat up and recovery with excellent uniformity and energy efficiency, increased resistance to thermal shock, ideal for rapid cycling over extended periods.

Standard ModelsOutside mild steel with hammertone paint

GMP ModelsOutside stainless steel 304

ConstructionThis laboratory muffle furnace is designed to operate under high temperature with minimal maintenance and higher efficiency. The high-temperature ceramic fibre insulation with an advanced graded design ensures fast heat-up time and resistance to the thermal shock. The natural cooling of the outer surface reduces exterior shell temperatures and improve energy efficiency and operator safety.
The thermocouples compensated lead wire and polarized plug for measures accurate high-temperature with a longer self-life. Removable panels for easy access to replaceable heating elements and thermocouples. The heating is achieved by silicon carbide element with easy mounting and assembly.

Temperature ControlThe temperature is controlled by means of an imported microprocessor-based autotuned PID controller to avoid overshoot. CE marked and a dual display for set value and process value.

Optional Features

• CFR 21 part 11 compliance software for data logger
• Safety digital temperature controller
• Data logger
• Timer

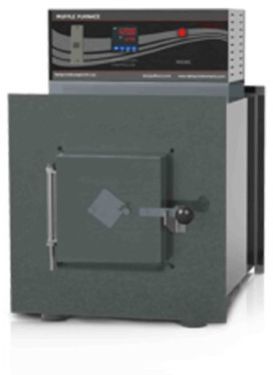

“TEMPO” laboratory furnaces are designed for higher temperature applications. The design is based on the highest standards for quality with efficient high-temperature use and minimal maintenance. Silicon carbide element with easy assembly. These lab furnaces are Ideal for rapid cycling over extended periods.
The advance design feature provides fast heat up and recovery with excellent uniformity and energy efficiency, increased resistance to thermal shock, ideal for rapid cycling over extended periods.

Standard ModelsOutside mild steel with hammertone paint

GMP ModelsOutside stainless steel 304

ConstructionThis laboratory muffle furnace is designed to operate under high temperature with minimal maintenance and higher efficiency. The high-temperature ceramic fibre insulation with an advanced graded design ensures fast heat-up time and resistance to the thermal shock. The natural cooling of the outer surface reduces exterior shell temperatures and improve energy efficiency and operator safety.
The thermocouples compensated lead wire and polarized plug for measures accurate high-temperature with a longer self-life. Removable panels for easy access to replaceable heating elements and thermocouples. The heating is achieved by silicon carbide element with easy mounting and assembly.

Temperature ControlThe temperature is controlled by means of an imported microprocessor-based autotuned PID controller to avoid overshoot. CE marked and a dual display for set value and process value.

Optional Features

• CFR 21 part 11 compliance software for data logger
• Safety digital temperature controller
• Data logger
• Timer

“TEMPO” laboratory furnaces are designed for higher temperature applications. The design is based on the highest standards for quality with efficient high-temperature use and minimal maintenance. Silicon carbide element with easy assembly. These lab furnaces are Ideal for rapid cycling over extended periods.
The advance design feature provides fast heat up and recovery with excellent uniformity and energy efficiency, increased resistance to thermal shock, ideal for rapid cycling over extended periods.

Standard ModelsOutside mild steel with hammertone paint

GMP ModelsOutside stainless steel 304

ConstructionThis laboratory muffle furnace is designed to operate under high temperature with minimal maintenance and higher efficiency. The high-temperature ceramic fibre insulation with an advanced graded design ensures fast heat-up time and resistance to the thermal shock. The natural cooling of the outer surface reduces exterior shell temperatures and improve energy efficiency and operator safety.
The thermocouples compensated lead wire and polarized plug for measures accurate high-temperature with a longer self-life. Removable panels for easy access to replaceable heating elements and thermocouples. The heating is achieved by silicon carbide element with easy mounting and assembly.

Temperature ControlThe temperature is controlled by means of an imported microprocessor-based autotuned PID controller to avoid overshoot. CE marked and a dual display for set value and process value.
Optional Features

• CFR 21 part 11 compliance software for data logger
• Safety digital temperature controller
• Data logger
• Timer
