Our Products
Melting Furnaces
2 Products availableLaminar Air Flow
2 Products availableDeep Freezer
2 Products availableLaboratory Chamber
2 Products availableLeading Manufacturer, Supplier & Retailer of Stability Chamber, Photo Stability Chamber, Bod Incubator, Bacteriological Incubator and Humidity Stability Chamber.

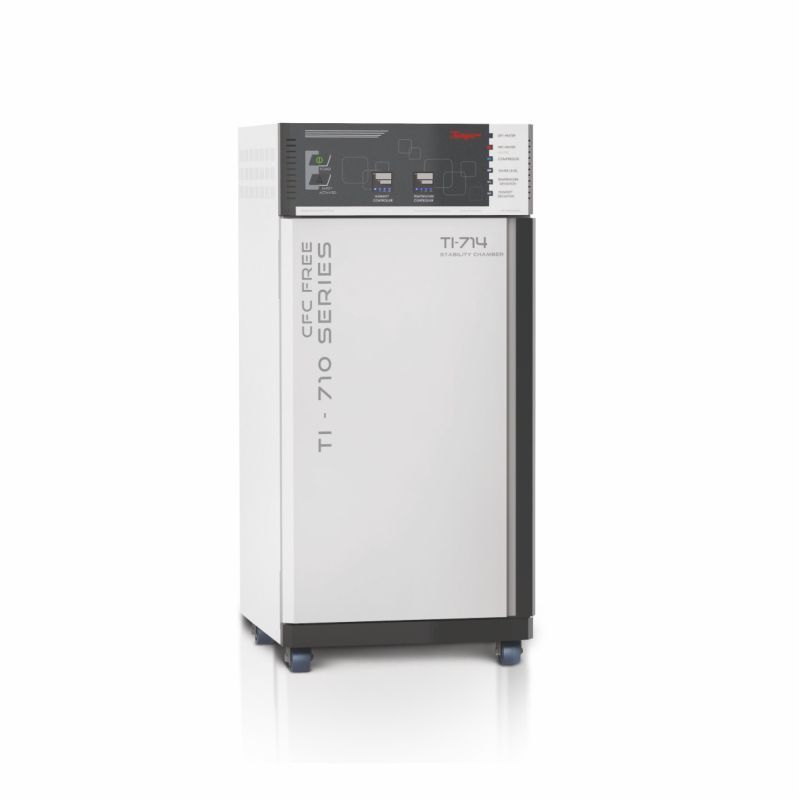

Whether your testing is for R&D, clinical trials or ongoing stability, “TEMPO” stability chamber provide a stable temperature & humidity condition environment for worry-free operations with a control system that is easy to operate. “TEMPO” make stability chamber is designed as per ICH guidelines and are manufactured to comply with requirements in the industries. Stability testing is an integral part of formulation development. It helps to generate information, which permits well-considered proposals to be made for the shelf life of drug substances and products and recommended storage condition.
The purpose of stability testing is to provide evidence on how the quality of a drug substance or drug product varies with time under the influence of a variety of environmental factors such as temperature, humidity, and light, and to establish a re-test period for the drug substance or product under recommended storage conditions. Hence, pharmaceutical stability chamber serves as an important quality attribute for the product.
Standard ModelsInside S.S. 304 with mirror polish & outside mild steel powder coated.
GMP ModelsInside S.S. 316 with mirror polish & outside stainless steel 304 with the dull buff finish.
ConstructionDouble walled construction with backside triple walled 3” thick PUF insulation ensures stable temperature with humidity & reduced energy consumption. Motorized Blower is fitted at the backside of the chamber.
The unit is provided with an adjustable stainless steel rod mesh tray. The equipment is mounted on caster wheels for easy movement.
Technical Specification
Features50 mm validation porthole with silicon rubber seal to insert sensors for validation. Full view observation Acrylic door with a gasket to observe the sample inside the chamber. Interior illumination for working area.Specially designed stainless steel rod trays ensure uniform temperature distribution.
Safety FeaturesAdditional safety thermostat to cut of dry heater supply in case temperature of overshoot. Float switch to cut off the wet heater supply in case of low water level. Audio & visual alarm. Compressor ON delay timer (2 min.) to safeguard the compressor. Inbuilt overload protector provided for a hermetically sealed compressor.
Optional Features
Specifications
| Models | Capacity (litres) | Internal Dimensions H × W × D (cm) |
Trays |
|---|---|---|---|
| TI – 710 S / G | 100 | 50 × 50 × 40 | 2 |
| TI – 711 S / G | 170 | 70 × 60 × 40 | 2 |
| TI – 712 S / G | 200 | 60 × 60 × 60 | 2 |
| TI – 713 S / G | 285 | 80 × 60 × 60 | 3 |
| TI – 714 S / G | 325 | 90 × 60 × 60 | 4 |
| TI – 715 S / G | 400 | 110 × 60 × 60 | 4 |
| TI – 716 S / G | 600 | 125 × 70 × 70 | 4 |
| TI – 717 S / G | 800 | 125 × 80 × 80 | 5 |
| TI – 718 S / G | 1000 | 157 × 80 × 80 | 5 |
| TI – 719 S / G | 1500 (Double door) | 146 × 150 × 69 | 10 |
| TI – 720 S / G | 2000 (Double door) | 146 × 150 × 92 | 10 |

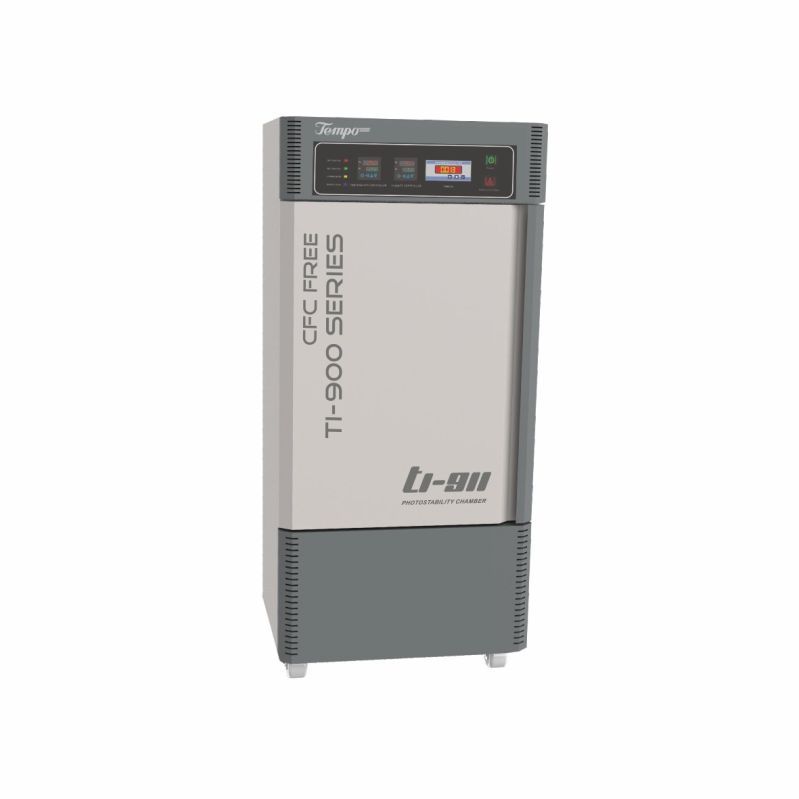

“TEMPO” make photostability chamber is used for confirmatory studies, the samples should be exposed to light providing an overall illumination of not less than 1.2 million lux hours and an integrated near ultraviolet energy of not less than 200 watt hours/square meter to allow direct comparison to be made between drug substance & drug product.
Standard ModelsInside SS 304 with mirror polish & outside mild steel powder coated.
GMP ModelsInside SS 316 with mirror polish & outside stainless steel 304 with the dull buff finish.
Construction“TEMPO” make photostability chamber are made of double walled construction with backside as triple walled. The fluorescent light & UV light fitted on the top side of the chamber. Full view inner tough glass door & a front door with magnetic gasket & lock. The motorized blower is fitted on the backside for uniform temperature & humidity. The 3” thick PUF insulation to ensure stable temperature & humidity. The unit is provided with the adjustable stainless steel rod trays. The equipment is mounted on caster wheel for easy movement.
Technical Specification
Features50 mm validation porthole with silicon rubber seal to insert sensors for validation. Full view observation acrylic door with a gasket to observe the sample inside the chamber. Interior illumination for working area. Specially designed stainless steel rod trays ensure uniform temperature distribution.
Safety FeaturesAdditional safety thermostat to cut of dry heater supply in case temperature of overshoot. Float switch to cut off the wet heater supply in case of low water level. Audio & visual alarm. Compressor ON delay timer (2 min.) to safeguard the compressor. Inbuilt overload protector provided for a hermetically sealed compressor. After opening the door UV light is automatically switch off.
Optional Features
Specifications
| Models | Capacity (litres) | Internal Dimensions H × W × D (cm) |
Trays |
|---|---|---|---|
| TI – 910 S / G | 120 | 50 × 60 × 40 | 1 |
| TI – 911 S / G | 170 | 70 × 60 × 40 | 1 |
| TI – 912 S / G | 200 | 60 × 60 × 60 | 1 |
| TI – 913 S / G | 285 | 80 × 60 × 60 | 2 |
| TI – 914 S / G | 325 | 90 × 60 × 60 | 2 |
“TEMPO” make BOD incubators are manufactured to comply requirement of industries. Specifically designed for the long term and stable continuous operation ideal for pharmaceuticals, biotechnology and research institutions for storage and incubation studies. Incubators to provide a condition for optimal growth of microbiology cultures, biological labs for the preservation of vaccines, serological and complement fixation tests, General low temperature uses in physical /chemical labs, R&D centre, quality control laboratory, general laboratories of industries, pharmaceuticals, chemicals, petrochemicals, oil & gas, cement, pulp and paper, fertilizers, defence, railways, paint etc.
Standard ModelsInside S.S. 304 with mirror polish & Outside mild steel powder coated.
GMP ModelsInside S.S. 316 with mirror polish & Outside stainless steel 304 with dull the buff finish.
ConstructionBOD Incubator is made of double walled construction with thick high grade PUF insulation. Full view inner acrylic door & front door with gasket & locking arrangement. The motorized blower at backside of the chamber develops a unique air ow system to maintain uniform temperature condition inside the chamber. Unique air ow assures quick recovery after door openings. The unit is provided with a user friendly adjustable specially designed S.S rod trays ensure uniform temperature distribution. The equipment is mounted on castor wheels for easy movement.
Technical Specification
FeaturesFull view observation Acrylic door with a gasket to observe the sample inside the chamber. Interior illumination for working area. Specially designed stainless steel rod trays ensure uniform temperature distribution.
Safety FeaturesSafety standby thermostat to cut off heater supply in case of overshoot of temperature. Inbuilt overload protector provided for the hermetically sealed compressor. Compressor ON delay timer (2 min) to safeguard the compressor.
Optional Features
Specifications
| Models | Capacity (litres) | Internal Dimensions H × W × D (cm) |
Trays |
|---|---|---|---|
| TI – 500 S / G | 100 | 50 × 50 × 40 | 2 |
| TI – 501 S / G | 170 | 70 × 60 × 40 | 2 |
| TI – 502 S / G | 200 | 60 × 60 × 60 | 2 |
| TI – 503 S / G | 285 | 80 × 60 × 60 | 3 |
| TI – 504 S / G | 325 | 90 × 60 × 60 | 4 |
| TI – 505 S / G | 400 | 110 × 60 × 60 | 4 |
| TI – 506 S / G | 600 | 125 × 70 × 70 | 4 |
| TI – 507 S / G | 800 | 125 × 80 × 80 | 5 |
| TI – 508 S / G | 1000 | 157 × 80 × 80 | 5 |
| TI – 509 S / G | 1500 (Double door) | 146 × 150 × 69 | 10 |
| TI – 510 S / G | 2000 (Double door) | 146 × 150 × 92 | 10 |

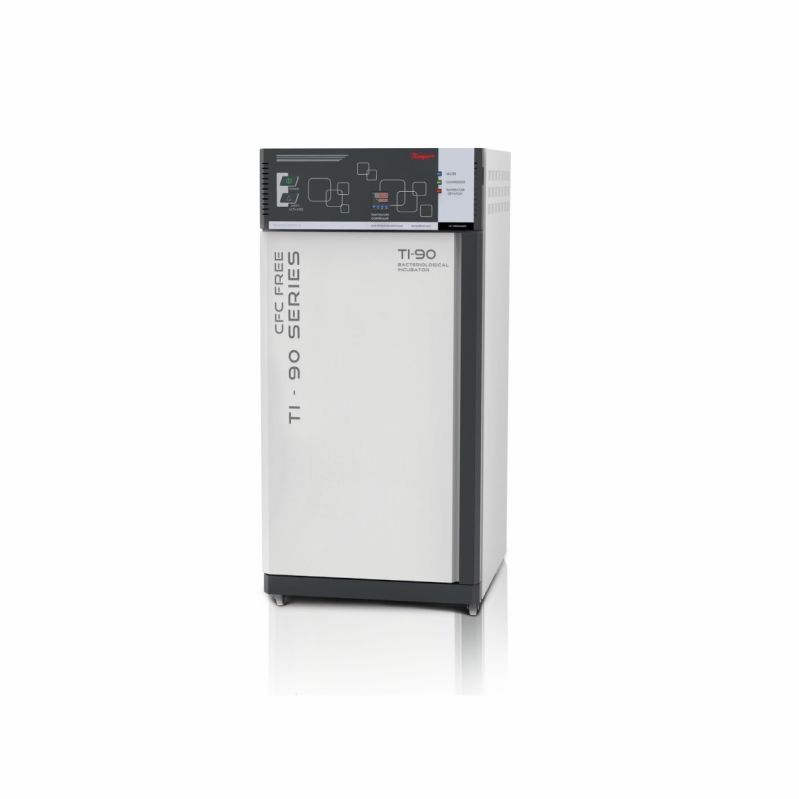

“TEMPO” make bacteriological incubator are specially designed for research laboratories, engineering lab, pharmaceutical lab, cosmetic industry, chemical lab, clinical lab, microbiological determination, pharmaceutical stability assays, food processing, QC, etc.
Standard ModelsInside SS 304 with mirror polish & outside mild steel duly powder coated.
GMP ModelsInside SS 316 with mirror polish & outside stainless steel 304 with the dull buff finish.
Construction“TEMPO” make bacteriological incubator are made up of double walled construction. Full view inner acrylic door & front door with gasket & lock. The motorized blower is fitted on the backside for uniform temperature (only forced air circulation model). Insulation is provided by means of suitable PUF insulation. The unit is provided with adjustable stainless steel rod trays.
Technical Specification
FeaturesFull view observation acrylic door with a gasket to observe the sample inside the chamber. A specially designed stainless steel rod trays ensure uniform temperature distribution.
Safety FeaturesSafety standby thermostat to cut off heater supply in case of overshoot of temperature.
Optional Features
Natural Convention Model
| Models | Capacity (litres) | Internal Dimensions H × W × D (cm) |
Trays |
|---|---|---|---|
| TI – 90 A | 43 | 35 × 35 × 35 | 2 |
| TI – 90 B | 91 | 45 × 45 × 45 | 2 |
Forced Air Circulation Model
| Models | Capacity (litres) | Internal Dimensions H × W × D (cm) |
Trays |
|---|---|---|---|
| TI – 90 A S/G | 43 | 35 × 35 × 35 | 2 |
| TI – 90 B S/G | 91 | 45 × 45 × 45 | 2 |
| TI – 90 C S/G | 100 | 50 × 50 × 40 | 2 |
| TI – 90 D S/G | 170 | 70 × 60 × 40 | 2 |
| TI – 90 E S/G | 200 | 60 × 60 × 60 | 2 |
| TI – 90 F S/G | 285 | 80 × 60 × 60 | 3 |
| TI – 90 G S/G | 325 | 90 × 60 × 60 | 4 |
| TI – 90 H S/G | 400 | 110 × 60 × 60 | 4 |
| TI – 90 I S/G | 600 | 125 × 70 × 70 | 4 |
| TI – 90 J S/G | 800 | 125 × 80 × 80 | 5 |
| TI – 90 K S/G | 1000 | 157 × 80 × 80 | 5 |
| TI – 90 L S/G | 1500 (double door) | 146 × 150 × 69 | 10 |
| TI – 90 M S/G | 2000 (double door) | 146 × 150 × 92 | 10 |

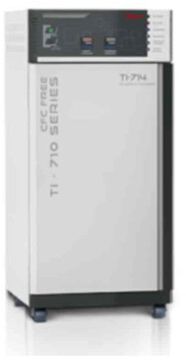

Whether your testing is for R&D, clinical trials or ongoing stability, the “TEMPO” stability chamber provide a stable temperature & humidity condition environment for worry-free operations with a control system that is easy to operate. “TEMPO” make stability chamber is designed as per ICH guidelines and are manufactured to comply with requirements in the industries. Stability testing is an integral part of formulation development. It helps to generate information, which permits well-considered proposals to be made for the shelf life of drug substances and products and recommended storage conditions.
The purpose of stability testing is to provide evidence on how the quality of a drug substance or drug product varies with time under the influence of a variety of environmental factors such as temperature, humidity, and light, and to establish a re-test period for the drug substance or product under recommended storage conditions. Hence, the pharmaceutical stability chamber serves as an important quality attribute for the product.
Standard ModelsInside S.S. 304 with mirror polish & outside mild steel powder coated.
GMP ModelsInside S.S. 316 with mirror polish & outside stainless steel 304 with the dull buff finish.
ConstructionDouble-walled construction with backside triple-walled 3” thick PUF insulation ensures stable temperature with humidity & reduced energy consumption. Motorized Blower is fitted at the backside of the chamber.
The unit is provided with an adjustable stainless steel rod mesh tray. The equipment is mounted on caster wheels for easy movement.
Technical Specification
Features
Safety FeaturesAdditional safety thermostat to cut of dry heater supply in case temperature of overshoot. Float switch to cut off the wet heater supply in case of low water level. Audio & visual alarm. Compressor ON delay timer (2 min.) to safeguard the compressor. Inbuilt overload protector provided for a hermetically sealed compressor.
Optional Features
Specifications
| Models | Capacity (litres) | Internal Dimensions H × W × D (cm) |
Trays |
|---|---|---|---|
| TI – 710 S / G | 100 | 50 × 50 × 40 | 2 |
| TI – 711 S / G | 170 | 70 × 60 × 40 | 2 |
| TI – 712 S / G | 200 | 60 × 60 × 60 | 2 |
| TI – 713 S / G | 285 | 80 × 60 × 60 | 3 |
| TI – 714 S / G | 325 | 90 × 60 × 60 | 4 |
| TI – 715 S / G | 400 | 110 × 60 × 60 | 4 |
| TI – 716 S / G | 600 | 125 × 70 × 70 | 4 |
| TI – 717 S / G | 800 | 125 × 80 × 80 | 5 |
| TI – 718 S / G | 1000 | 157 × 80 × 80 | 5 |
| TI – 719 S / G | 1500 (Double door) | 146 × 150 × 69 | 10 |
| TI – 720 S / G | 2000 (Double door) | 146 × 150 × 92 | 10 |
