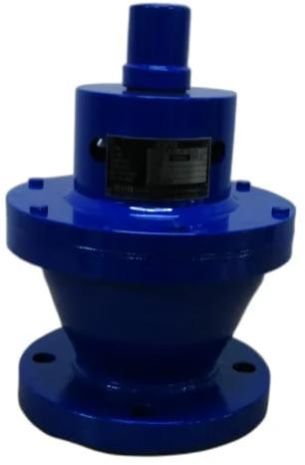

Clients can avail from us a distinct assortment of Vacuum Relief Valve. Guaranteed of its optimum quality, the offered range of valve is manufactured under the strict vigilance of our experienced professionals using the utmost-grade raw material.

Features :

• Anti-corrosive
• Low maintenance
• Excellent design

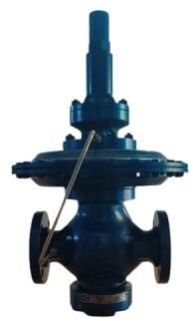

Self Actuated Pressure Control Valves without any need for external power or or supply. Body CS/SS/CI and internals in SS. Sizes : ‘A”, 3/4″, &2″Screwed, 1″, 11/2″, 2″, 3″, & 4″ Flanged with PTFE, Neoprene & Phosphor bronze.

Features :

• Compact design
• Constant outlet pressure.
• Very high flow rates.
• Positive shut-off

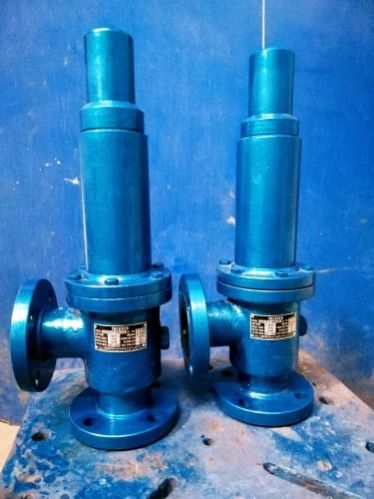

Features :

• Compact design.
• Constant outlet pressure.
• Very high flow rates.
• Positive shut-off

Applications :

• A reduction in the capital cost of equipment.
• Water/Steam/Gas pressure Is directly related to temperature
• Controlling the pressure will therefore automatically control the temperature avoiding the need ror additional temperature controlequipment.
• The flexibility to supply steam/Gas at the optimalpressure for each individual application.
• The pressure reducing valve range is designed for use on Water/Steam/Gas applications and for installations which have varying inlet pressures and capacities. It ls particularly suitable where positive shut-off is required under "no llow"conditions and where compact size and economy are essential.
• The pressure regulator Is operated by a spring loaded piston and has a balanced main valve which ensures valve which ensures that the outlet dead-end pressure is unaffected by changes of inlet pressure.
• The valve is opened by the load on the adjusting spring and closed by reduced pressure on the underside of the diaphragm.Under normal working conditions, the balance of these two forces gives the forces gives the degree of valve opening for the required reduced pressure.

Steam Theory1. Basics of Steam2. Steam Heating3. Basics of Steam Traps4. Steam Trap Selection5. Steam Trap Problems6. Steam Trap Management7. Water Hammer8. Risk Mitigation9. Steam Quality10. Steam Distribution11. Condensate Recovery12. Energy Efficiency13. Compressed Air / Gas14. Other ValvesTypes of Manual ValvesBypass ValvesCheck Valve Installation and BenefitsPressure Reducing Valves for SteamPressure Reducing Valves for SteamContents:Reducing Steam PressureAdvantages of Pressure Reducing ValvesTypes of Pressure Reducing Valves for SteamDirect Acting (Non-piloted)Pilot-OperatedSummaryIn a steam-using plant, steam is often generated at high pressures and reduced locally to provide heat for each steam user. This is usually done to minimize the diameter of steam distribution piping and enable more cost-efficient steam delivery.

Reducing Steam PressureA common way of lowering pressure is by throttling down the size of the steam passageway. For the most basic pressure reduction, it is possible to simply use a conventional globe valve in a fixed partly-open position, or by inserting an orifice plate into the flow of steam. However, any fluctuation in flow rate would be accompanied by a corresponding fluctuation in pressure. To avoid such circumstances, pressure reducing valves (PRVs) can be used to provide precise control of downstream pressure. They automatically adjust the amount of valve opening to allow the pressure to remain unchanged even when the flow rate fluctuates.

Advantages of Pressure Reducing ValvesWhile it is possible to maintain a constant pressure by using the combination of an actuated control valve, a pressure sensor, and a controller, a pressure reducing valve offers the advantage of being able to control pressure through fully-automatic self-contained operation, requiring no type of external power source. It can offer the further advantage of extremely rapid response action by immediately sensing and adjusting based on the downstream pressure.

Reducing Steam Pressure

Fig. 1 Heating processes usually benefit from using steam at a lower pressure than that supplied by the boiler. Thus, pressure reducing valves are often used to reduce steam pressure to the set point value required by the process.

Types of Pressure Reducing Valves for SteamIn pressure reducing valves, the mechanism that automatically adjusts the downstream pressure typically uses the balance of forces between the steam pressure and an adjustment spring. At present, this is a universal concept on almost all manufactured pressure reducing valves. However, there are two different ways in which this mechanism is implemented to control the amount of valve opening:

Non-piloted, Direct Acting Valve: Adjustment spring places downward pressure setting force directly on the main valve.Pilot-Operated Valve: Adjustment spring places downward pressure setting force directly on a pilot valve, which is smaller and different from the main valve.The following is an overview of the features of each type of PRV.

Direct Acting (Non-piloted)Used for small loads where extremely close pressure control is not needed.

Pros: Compact size, low price, easy to install.Cons: Higher droop (variation from set pressure) than Pilot-operated PRV.Direct Acting Pressure Reducing Valve

Pressure Reducing Valves for SteamFig. 2 Delivered steam pressure is regulated by balancing forces acting directly on the valve itself: the downward force caused by compression of the adjustment spring against the upward force from the secondary pressure acting against the underside of a bellows or diaphragm.

Note: The movements in the animation are slowed and exaggerated in order to show the opening and closing of the valve.

In direct acting pressure reducing valves, the amount of valve opening is determined directly by the movement of the adjustment spring. If the spring is compressed, it creates an opening force on the valve which increases flow. As pressure builds downstream, equalizing occurs by feeding the downstream pressure to the underside of the adjustment spring (usually against a bellows or diaphragm) where its upward force counter-balances against the spring compression. Spring compressive force which opens the valve is limited to allow sufficient spring sensitivity to equalize with downstream pressure changes. The net result is simple pressure control through a valve orifice where high flow rates can cause pressure droop.

Pilot-OperatedUsed for larger loads where close pressure control is required

Pros: Close pressure control, fast response to load variation, may be used across a broader range of flow rates than the direct acting types.Cons: Larger size, higher price.Pilot-Operated Pressure Reducing Valve

Pressure Reducing Valves for SteamFig. 3 Delivered steam pressure is regulated in a similar manner as direct acting PRVs, however indirectly via a pilot valve. As the pilot valve is actuated, it provides the opening flow to the larger main valve which can supply significantly higher flow rates than the pilot itself. The pilot valve is then equalized by the secondary pressure, which correspondingly controls the opening flow to the main valve.

Note: The movements in the animation are slowed and exaggerated in order to show the opening and closing of the valve.

In pilot-operated pressure reducing valves, a pilot valve is used to load a piston or diaphragm that increases the downward force used to open a larger main valve. This enables larger flow capacity with a lower pressure offset (droop). The opening and closing of the pilot valve is controlled by the balance of force between the adjustment spring and the secondary pressure in the same manner that a direct-acting valve operates. However, in a pilot-operated PRV, this opening and closing of the pilot valve purposely delivers pressure to the main valve piston or diaphragm. This pilot flow pressure then causes a downward force that is amplified by the area of the piston or diaphragm to enable opening of a much larger main valve, which in turn provides the ability for very high flow rates.

Because the downward force is amplified through the use of a piston or diaphragm, a small change in the opening on the pilot valve can result in a large change in flow and downstream pressure through the main valve. As a result, there is little change needed in adjustment spring force on the pilot to accomplish quick response over a wide range of steam flow rates. Quick response and tight delivered pressure control represent the main advantages of this type of valve over the direct-acting type.

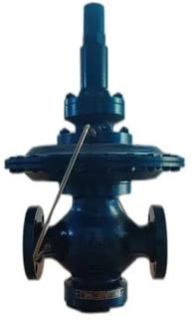

Features :

• Automatically reduces a higher inlet pressure to a constant lower outlet pressure.
• The regulator will reduce the upstream pressure to a constant downstream pressure regardless of the change in flow rates/or inlet pressure

Clients can avail from us a distinct assortment of Vacuum Relief Valve. Guaranteed of its optimum quality, the offered range of valve is manufactured under the strict vigilance of our experienced professionals using the utmost-grade raw material.

Features :

• Anti-corrosive
• Low maintenance
• Excellent design

Self Actuated Pressure Control Valves without any need for external power or or supply. Body CS/SS/CI and internals in SS. Sizes : ‘A”, 3/4″, &2″Screwed, 1″, 11/2″, 2″, 3″, & 4″ Flanged with PTFE, Neoprene & Phosphor bronze.

Features :

• Compact design
• Constant outlet pressure.
• Very high flow rates.
• Positive shut-off

Features :

• Compact design.
• Constant outlet pressure.
• Very high flow rates.
• Positive shut-off

Applications :

• A reduction in the capital cost of equipment.
• Water/Steam/Gas pressure Is directly related to temperature
• Controlling the pressure will therefore automatically control the temperature avoiding the need ror additional temperature controlequipment.
• The flexibility to supply steam/Gas at the optimalpressure for each individual application.
• The pressure reducing valve range is designed for use on Water/Steam/Gas applications and for installations which have varying inlet pressures and capacities. It ls particularly suitable where positive shut-off is required under "no llow"conditions and where compact size and economy are essential.
• The pressure regulator Is operated by a spring loaded piston and has a balanced main valve which ensures valve which ensures that the outlet dead-end pressure is unaffected by changes of inlet pressure.
• The valve is opened by the load on the adjusting spring and closed by reduced pressure on the underside of the diaphragm.Under normal working conditions, the balance of these two forces gives the forces gives the degree of valve opening for the required reduced pressure.

Steam Theory1. Basics of Steam2. Steam Heating3. Basics of Steam Traps4. Steam Trap Selection5. Steam Trap Problems6. Steam Trap Management7. Water Hammer8. Risk Mitigation9. Steam Quality10. Steam Distribution11. Condensate Recovery12. Energy Efficiency13. Compressed Air / Gas14. Other ValvesTypes of Manual ValvesBypass ValvesCheck Valve Installation and BenefitsPressure Reducing Valves for SteamPressure Reducing Valves for SteamContents:Reducing Steam PressureAdvantages of Pressure Reducing ValvesTypes of Pressure Reducing Valves for SteamDirect Acting (Non-piloted)Pilot-OperatedSummaryIn a steam-using plant, steam is often generated at high pressures and reduced locally to provide heat for each steam user. This is usually done to minimize the diameter of steam distribution piping and enable more cost-efficient steam delivery.

Reducing Steam PressureA common way of lowering pressure is by throttling down the size of the steam passageway. For the most basic pressure reduction, it is possible to simply use a conventional globe valve in a fixed partly-open position, or by inserting an orifice plate into the flow of steam. However, any fluctuation in flow rate would be accompanied by a corresponding fluctuation in pressure. To avoid such circumstances, pressure reducing valves (PRVs) can be used to provide precise control of downstream pressure. They automatically adjust the amount of valve opening to allow the pressure to remain unchanged even when the flow rate fluctuates.

Advantages of Pressure Reducing ValvesWhile it is possible to maintain a constant pressure by using the combination of an actuated control valve, a pressure sensor, and a controller, a pressure reducing valve offers the advantage of being able to control pressure through fully-automatic self-contained operation, requiring no type of external power source. It can offer the further advantage of extremely rapid response action by immediately sensing and adjusting based on the downstream pressure.

Reducing Steam Pressure

Fig. 1 Heating processes usually benefit from using steam at a lower pressure than that supplied by the boiler. Thus, pressure reducing valves are often used to reduce steam pressure to the set point value required by the process.

Types of Pressure Reducing Valves for SteamIn pressure reducing valves, the mechanism that automatically adjusts the downstream pressure typically uses the balance of forces between the steam pressure and an adjustment spring. At present, this is a universal concept on almost all manufactured pressure reducing valves. However, there are two different ways in which this mechanism is implemented to control the amount of valve opening:

Non-piloted, Direct Acting Valve: Adjustment spring places downward pressure setting force directly on the main valve.Pilot-Operated Valve: Adjustment spring places downward pressure setting force directly on a pilot valve, which is smaller and different from the main valve.The following is an overview of the features of each type of PRV.

Direct Acting (Non-piloted)Used for small loads where extremely close pressure control is not needed.

Pros: Compact size, low price, easy to install.Cons: Higher droop (variation from set pressure) than Pilot-operated PRV.Direct Acting Pressure Reducing Valve

Pressure Reducing Valves for SteamFig. 2 Delivered steam pressure is regulated by balancing forces acting directly on the valve itself: the downward force caused by compression of the adjustment spring against the upward force from the secondary pressure acting against the underside of a bellows or diaphragm.

Note: The movements in the animation are slowed and exaggerated in order to show the opening and closing of the valve.

In direct acting pressure reducing valves, the amount of valve opening is determined directly by the movement of the adjustment spring. If the spring is compressed, it creates an opening force on the valve which increases flow. As pressure builds downstream, equalizing occurs by feeding the downstream pressure to the underside of the adjustment spring (usually against a bellows or diaphragm) where its upward force counter-balances against the spring compression. Spring compressive force which opens the valve is limited to allow sufficient spring sensitivity to equalize with downstream pressure changes. The net result is simple pressure control through a valve orifice where high flow rates can cause pressure droop.

Pilot-OperatedUsed for larger loads where close pressure control is required

Pros: Close pressure control, fast response to load variation, may be used across a broader range of flow rates than the direct acting types.Cons: Larger size, higher price.Pilot-Operated Pressure Reducing Valve

Pressure Reducing Valves for SteamFig. 3 Delivered steam pressure is regulated in a similar manner as direct acting PRVs, however indirectly via a pilot valve. As the pilot valve is actuated, it provides the opening flow to the larger main valve which can supply significantly higher flow rates than the pilot itself. The pilot valve is then equalized by the secondary pressure, which correspondingly controls the opening flow to the main valve.

Note: The movements in the animation are slowed and exaggerated in order to show the opening and closing of the valve.

In pilot-operated pressure reducing valves, a pilot valve is used to load a piston or diaphragm that increases the downward force used to open a larger main valve. This enables larger flow capacity with a lower pressure offset (droop). The opening and closing of the pilot valve is controlled by the balance of force between the adjustment spring and the secondary pressure in the same manner that a direct-acting valve operates. However, in a pilot-operated PRV, this opening and closing of the pilot valve purposely delivers pressure to the main valve piston or diaphragm. This pilot flow pressure then causes a downward force that is amplified by the area of the piston or diaphragm to enable opening of a much larger main valve, which in turn provides the ability for very high flow rates.

Because the downward force is amplified through the use of a piston or diaphragm, a small change in the opening on the pilot valve can result in a large change in flow and downstream pressure through the main valve. As a result, there is little change needed in adjustment spring force on the pilot to accomplish quick response over a wide range of steam flow rates. Quick response and tight delivered pressure control represent the main advantages of this type of valve over the direct-acting type.

Features :

• Automatically reduces a higher inlet pressure to a constant lower outlet pressure.
• The regulator will reduce the upstream pressure to a constant downstream pressure regardless of the change in flow rates/or inlet pressure
