Our Products
Liquid Level Gauges
2 Products availableWe offer the best product range of Test Valve.

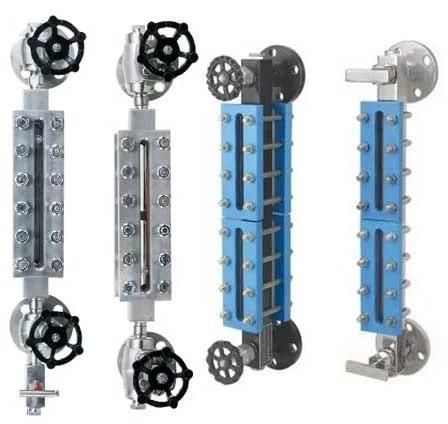

These are assembled with two numbers of totally transparent toughened glasses to give a thorough vision of liquid levels. These gauges are recommended for interface levels, coloured fluids where colour is of interest to the process behaviour and services where excessive foaming may exist. In high pressure boilers these gauges are recommended to be used with mica shields.
InstallationTeleflo gauges are made in standard lengths and hence are easily interchangeable during installation. Gauges are available from 5’/2″ section length to 120″ section length. These gauges are available in a variety of connection combination to meet your installation requirements.
Where long lengths above 60″ are specified, special brackets welded to chamber can be supplied on request.
Graph
Specifications
| Model No. | IN. | A | MM. | IN. | B | MM. | C IN. | min. MM. | IN. | D MM. | IN. | E | MM. | IN. | F | MM. | Weight Ref. | (Kg.) Tran. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 R or T | 14 | 356 | 12½ | 318 | 2 | 50 | 4 | 100 | 4 | 100 | 2¾ | 70 | 10 | 14 | ||||
| 20 R or T | 28 | 712 | 26½ | 674 | 2 | 50 | 4 | 100 | 4 | 100 | 2¾ | 70 | 19 | 27 | ||||
| 30 R or T | 42 | 1068 | 40½ | 1030 | 2 | 50 | 4 | 100 | 4 | 100 | 2¾ | 70 | 28 | 30 | ||||
| 40 R or T | 56 | 1424 | 54½ | 1386 | 2 | 50 | 4 | 100 | 4 | 100 | 2¾ | 70 | 37 | 43 | ||||
| 50 R or T | 70 | 1780 | 68½ | 1750 | 2 | 50 | 4 | 100 | 4 | 100 | 2¾ | 70 | 46 | 56 | ||||
| 01 R or T | 10 | 254 | 8½ | 216 | 2 | 50 | 4 | 100 | 4 | 100 | 2¾ | 70 | 7 | 10 | ||||
| 02 R or T | 20 | 508 | 18½ | 470 | 2 | 50 | 4 | 100 | 4 | 100 | 2¾ | 70 | 13 | 19 | ||||
| 03 R or T | 30 | 762 | 28½ | 724 | 2 | 50 | 4 | 100 | 4 | 100 | 2¾ | 70 | 19 | 28 | ||||
| 04 R or T | 40 | 1016 | 38½ | 988 | 2 | 50 | 4 | 100 | 4 | 100 | 2¾ | 70 | 25 | 37 | ||||
| 05 R or T | 50 | 1270 | 48½ | 1232 | 2 | 50 | 4 | 100 | 4 | 100 | 2¾ | 70 | 31 | 46 | ||||
| 06 R or T | 60 | 1524 | 58½ | 1486 | 2 | 50 | 4 | 100 | 4 | 100 | 2¾ | 70 | 37 | 55 | ||||
| 07 R or T | 70 | 1778 | 68½ | 1740 | 2 | 50 | 4 | 100 | 4 | 100 | 2¾ | 70 | 43 | 64 | ||||
| 08 R or T | 80 | 2032 | 78½ | 1994 | 2 | 50 | 4 | 100 | 4 | 100 | 2¾ | 70 | 49 | 73 | ||||
We are engaged in manufacturing, supplying and exporting a commendable assortment of Orifice Fitting Assembly, which is precision engineered at our manufacturing setup and is thus, regarded for various applications, in diverse industries and sectors for different purposes.
Features :

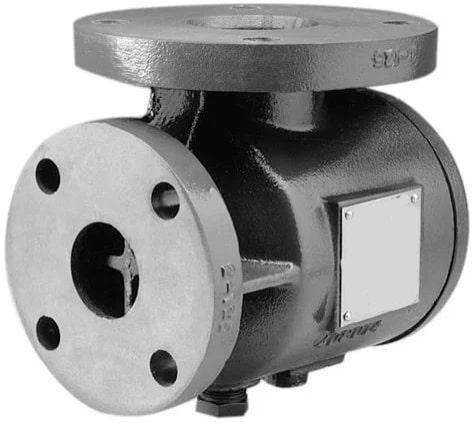

Owing to the profound experience of the industry, we are engaged in offering patrons qualitative gamut of Suction Diffusers that reduces installation costs by replacing the strainer, elbow and entry pipe on the suction side of the pump.
Other Details :
We have established ourselves as a renowned manufacturer, supplier, wholesaler and trader of a vast range of Float & Chord Level Indicator. The products offered by us are manufactured using high-quality components that are sourced from trusted vendors of the market.
Features :
Features :
We have gained immense expertise in bringing forth an excellent gamut of Flow Switches to the trusted customers. These offered switches are perfectly designed and developed using best-in-class raw material in tandem with the industry laid parameters to attain maximum level of client satisfaction. In order to meet the specific needs and preferences of the clients, we make offer these products in multifarious sizes and grades as per their requirements.
Features :
We are a pioneer firm with the main objective of presenting a top class range of Paddle Flow Switch to our deemed customers. Offered flow switches are fabricated with utmost precision at our end under the surveillance of professionals and our dexterous team. In addition to this, our quality editors take charge of delivering an error free range at the patrons end to attain maximum level of trust and patron satisfaction. Moreover, patrons can avail these products in various sizes and grades.
Features :
We are offering Weld Pad Sight Glassare assembled with two nos of circular flanges with toughened glass. These sight glasses are excellent to see the flow/levels in the tanks and vessels. Our professionals make use of supreme quality raw material while manufacturing these products and make sure to design the entire range in tandem with international quality standard.
Features :
Features :
A flow meter is a device used to measure the volume or mass of a gas or liquid. Flow meters are referred to by many names, such as flow gauge, flow indicator, liquid meter, flow rate sensor, etc. depending on the particular industry. However, they all measure flow. Open channels, like rivers or streams, may be measured with flow meters. Or more frequently, the most utility from a flow meter and the greatest variety of flow meters focus on measuring gasses and liquids in a pipe. Improving the precision, accuracy, and resolution of fluid measurement are the greatest benefits of the best flow meters.
We are a pioneer organization engaged in presenting a wide assortment of Top Mount Level Switch to our deemed customers. Offered level switches that we manufacture are precisely designed at our manufacturing unit by making use of prime grade raw material procured from the most established vendors of the market. Besides, patrons can avail these products from us in diverse sizes, grades, and other dimensions as per their prerequisite demands.
Features :
These are assembled with flat glasses with inner surfaces of reflecting prisms. Due to total internal reflection liquid level shows black in contrast to a mirror-like surface above. The gauges are used for services where observation is required at a distance and on low pressure boilers.
These gauges are constructed with a solid forged steel bar main chamber and cover plates recessed to have perfect alignment of gaskets and glass. Though rated for 2000 psig, these are light weight and hence do not need any cumbursome supports for medium lengths.-With special main chamber construction these gauges can be supplied upto, 3000 psig at 100 F
Glass
Teleflo Engineers’ continuous research, development and experimental studies on glass toughening and composition has made the tempered glasses used in these gauges most dependable providing a high strength resistant to both thermal and mechanical shocks and with the highest degree of visibility
Teleflo Slip-on orifice flanges are designed to slip over the pipeline before welding. Slip-on orifice flanges are available in class 300, with a raised face (RF).
A rotameter is a device that measures the volumetric flow rate of fluid in a closed tube. It belongs to a class of meters called variable-area flowmeters, which measure flow rate by allowing the cross-sectional area the fluid travels through to vary, causing a measurable effect.
Well neck orifice flanges are butt-welded into the pipeline. The inside diameter (or the schedule) of the pipe should be specified when ordering.
Teleflo Weldneck orifice flanges are available in classes 300, 600, 900, 1500 and 2500. Raised face (RF) and ring type joint (RTJ) versions can be supplied. Bolt sizes, weights and important dimensions of orifice flange assemblies are shown in the following tables.
This collection of Liquid level gauges are suitable for Marine application.
please note that this type of guages are suitable for fuel oils on board cargo, containers, passenger and defence ships.It gives extra protection for fuel spilling onboard and manufactured according to SOLAS requirement.
This valve is the same as the conventional design except that a bellows has been added. When the bellows is installed, the educator tube is removed. Caution: It is important that the bonnet be vented to the atmosphere. A bellows is added to the conventional valve to deal with any of several situation.
Back pressure entering the valve through the valve outlet is excessive or variable. If back pressure fluctuates with ±10% of a nominal value, a bellows is required. If a built up back pressure exceeds 10% of the set pressure or cold differential set pressure, a bellows must be used.
If the entering fluid is slurry, highly viscous, or of a nature that it can enter the critical clearances between the guides/disc holders, protect that area with a bellows.
If the fluid being handled is corrosive to the upper works of the valve, isolate the bonnet chamber through use of a bellows. Conventional valves can be easily converted to a bellows design or vice versa through the use of retrofit kits. All valves are balanced bellows designs, meaning that they fully compensate for the effects of back pressure.

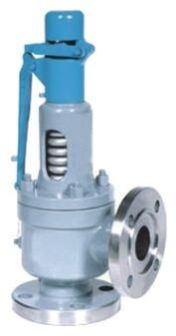

Standard safety valves are generally fitted with an easing lever, which enables the valve to be lifted manually in order to ensure that it is operational at pressures in excess of 75% of set pressure.
This is usually done as part of routine safety checks, or during maintenance to prevent seizing. The fitting of a lever is usually a requirement of national standards and insurance companies for steam and hot water applications. A standard or open lever is the simplest type of lever available. It is typically used on applications where a small amount of leakage of the fluid to the atmosphere is acceptable, such as on steam and air systems. Where it is not acceptable for the media to escape, a packed lever must be used. This uses a packed gland seal to ensure that the fluid is contained within the cap
Open BonnetUnless bellows or diaphragm sealing is used, process fluid will enter the spring housing (or bonnet). The amount of fluid depends on the particular design of safety valve. If emission of this fluid into the atmosphere is acceptable, the spring housing may be vented to the atmosphere – an open bonnet. This is usually advantageous when the safety valve is used on high temperature fluids or for boiler applications as, otherwise, high temperatures can relax the spring, altering the set pressure of the valve. However, using an open bonnet exposes the valve spring and internals to environmental conditions, which can lead to damage and corrosion of the spring.
With the unwavering support of our assiduous teammates, our organization is able to present a remarkable range of Ultrasonic Level Transmitter. These offered valves are precisely designed using qualitative raw material along with latest machinery and tools.
Specifications
| Range | 0.40 m to 5.0 m |
|---|---|
| Accuracy | 0.25% of Full Scale |
| Resolution | 1 mm |
| Frequency | 56 kHz |
| Beam Angle | 12 deg |
| Enclosure | Plastic |
| Pulse Rate | 5 Pulses per second |
| Display | 2 LED’s for echo and programming |
| Signal Output | 4 – 20 mA DC (0 – 20 mA) Factory settable only |
| Relay Out Put | None |
| Operating Temperature | 0 to 70 Deg C Maximum |
| Storage Temperature | -40 to 85 Deg C |
| Temperature Compensation | Automatic built-in |
| Pressure Output | Atmospheric Pressure Only |
| Relay Output | Optional |
| Power Consumption | |
| Voltage | 12 to 15 V DC |
| Power Consumption | 1-watt maximum |

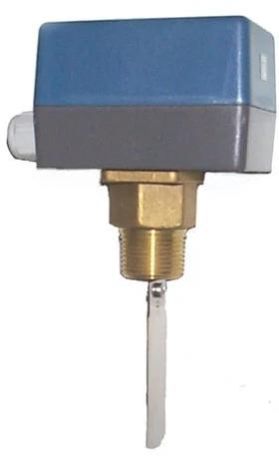

The paddle type liquid flow switches are single-pole, double-throw (SPDT) switches that are used in liquid lines carrying water, ethylene glycol, or other liquids not classified as hazardous. They can be wired to energize one device and de-energize another device powered from the same source when liquid flow, either exceeds or drops below the set flow rate.
The flow switches are recommended for liquid pressure and temperature as mentioned below and must not be used on lines carrying liquids below 0°C. They can be used on liquids with high salt or chlorine content but is not for use in hazardous atmospheres.
The typical applications in HVAC include chillers, boilers, etc.
With the help of nimble experts, we present a diverse range of Water Level Indicator. Our products are available in varied specifications that meet customers demand.
Features :
