Our Products
Pipe Flanges

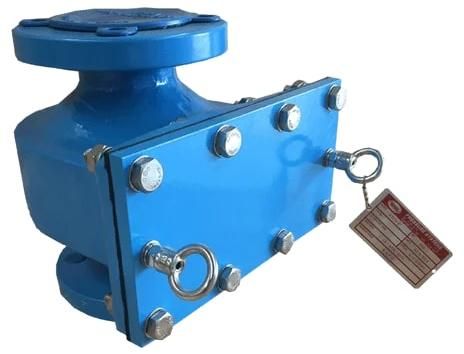

2 Products availableOur product range contains a wide range of Inline Flame Arrester, Line Hooded Flame Arrester, Teleflo Flame Arrester, Tank Flame Arrester and In-Line Deflagration Flame Arrester
Features :
Features :
We are instrumental in presenting a broad gamut of Flame Arrester to our deemed patrons. These offered products are designed and developed for usage in diverse industries and sectors for specific purposes. Moreover, this range is highly accredited in the industry for their perfect functioning and availability in multifarious sizes, grades, and dimensions as per the patron's needs and expectations.
Features :
Specifications
| Size | 1” | 1 ½” | 2” | 3” | 4” | 6” | 8” | 10” | 12” | 16” | 20” | 24” |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | 25 | 40 | 50 | 80 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 600 |
| A | 223 | 231 | 432 | 432 | 647 | 582 | 651 | 776 | 875 | 1164 | 1324 | 1504 |
| B | 155 | 210 | 280 | 280 | 345 | 485 | 595 | 700 | 815 | 1060 | 1290 | 1510 |
Specifications :

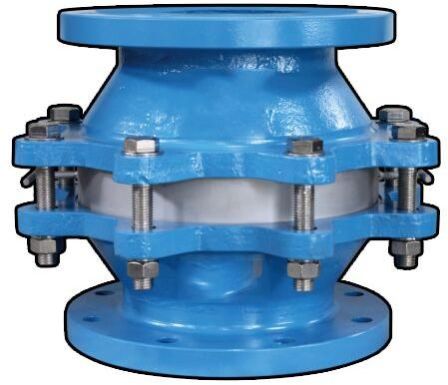

We are affianced in offering an extensive range of In-Line Deflagration Flame Arrester. These arresters are manufactured from high-grade raw materials under the guidance of experienced technocrats to meet the predefined industry norms. The entire gamut of Flame Arresters is extensively appreciated across the market for the perfect finish, robust construction, thermal resistance easy usage and durability.
Specification :

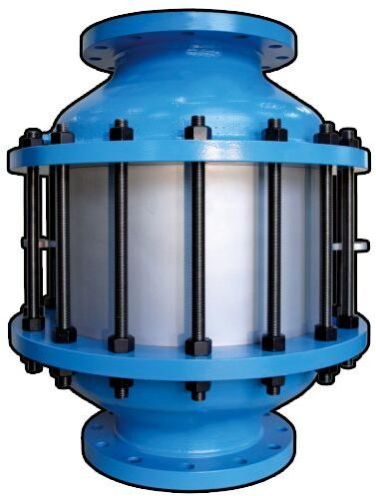

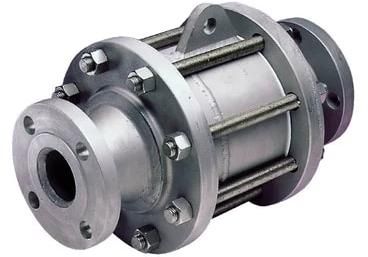

The TELEFLO make Deflagration & Detonation Flame Arrester inhibits flame propagation in gas piping systems. The design of the Model fflame Arrester makes it ideal to protect liquid storage tanks containing both NEC Group D and Group C vapors (IEC Class IIA and IIB1 through IIB3 vapors) with a Maximum Experimental Safe Gap (MESG) equal to or greater than 0.026″ [0.65 mm].
HIGHLIGHTS
APPLICATIONSModels are available in flange sizes from 2″ through 12″ (50 – 300 mm) for the following applications:
Housings are available in carbon steel, 316SS, and HASTELLOY C and elements in 316SS, HASTELLOY C, and other corrosion resistant alloys. These arresters are compact with high flow capacity and low pressure drop. Elements are easily removed in-line for cleaning and maintenance and are economical to replace if necessary. Contact the factory for additional features and options.
Specifications
| Flange Size (Metric) | Element Size (Metric) | A Length (Metric) | B Height (Metric) | Maximum Burn Time minutes | Maximum Pre-Ignition Pressure | Ship. Wt. Lbs. | ||
|---|---|---|---|---|---|---|---|---|
| Dela grations psia (bara) | Stable Detonations psia (bara) | |||||||
| 2” (50 mm) 2” (50 mm) 2” (50 mm) | 4” (100 mm) 6” (150 mm) 8” (200 mm) | 10.75” (273 mm) 12.75” (324 mm) 14.50” (368 mm) | 9” (229 mm) 1” (279 mm) 13.50” (343 mm) | 30 30 5 | 19.7 (1.36) 19.7 (1.36) 19.7 (1.36) | 19.7 (1.36) 19.7 (1.36) 19.7 (1.36) | 19.7 (1.36) 19.7 (1.36) 19.7 (1.36) | 54 (25 kg) 77 (35 kg) 114 (52 kg) |
| 3” (80 mm) 3” (80 mm) 3” (80 mm) | 6” (150 mm) 8” (200 mm) 12” (300 mm) | 12.75” (324 mm) 14.50” (368 mm) 18.31” (465 mm) | 1” (279 mm) 13.50” (343 mm) 19” (483 mm) | 30 5 5 | 19.7 (1.36) 19.7 (1.36) 18.0 (1.24) | 19.7 (1.36) 19.7 (1.36) 18.0 (1.24) | 19.7 (1.36) 19.7 (1.36) 18.0 (1.24) | 88 (40 kg) 125 (57 kg) 269 (122 kg) |
| 4” (100 mm) 4” (100 mm) 4” (100 mm) | 8” (203 mm) 12” (300 mm) 20” (500 mm) | 14.50” (368 mm) 18.31” (465 mm) 23.69” (602 mm) | 13.50” (343 mm) 19” (483 mm) 27.50” (699 mm) | 5 5 30 | 19.7 (1.36) 18.0 (1.24) 17.2 (1.188) | 19.7 (1.36) 18.0 (1.24) 17.2 (1.188) | 19.7 (1.36) 18.0 (1.24) | 134 (61 kg) 275 (125 kg) 645 (293 kg) |
| 6” (150 mm) 6” (150 mm) 6” (150 mm) 6” (150 mm) | 12” (300 mm) 20” (500 mm) 26” (650 mm) 30” (750 mm) | 18.31” (465 mm) 23.69” (602 mm) 29.06” (738 mm) 32.31” (821 mm) | 19” (483 mm) 27.50” (699 mm) 34.25” (870 mm) 38.75” (984 mm) | 5 30 30 30 | 18.0 (1.24) 17.2 (1.188) 17.2 (1.188) 17.2 (1.188) | 18.0 (1.24) 17.2 (1.188) 17.2 (1.188) 17.2 (1.188) | 18.0 (1.24) | 287 (130 kg) 657 (299 kg) 1062 (483 kg) 1407 (640 kg) |
| 8” (200 mm) 8” (200 mm) 8” (200 mm) | 16” (400 mm) 20” (500 mm) 26” (650 mm) | 35.82” (910 mm) 49.20” (1250 mm) 29.06” (1650 mm) | 22.71” (577 mm) 27.50” (699 mm) 34.25” (870 mm) | 30 30 30 | 17.2 (1.188) 17.2 (1.188) 17.2 (1.188) | 17.2 (1.188) 17.2 (1.188) 17.2 (1.188) | 677 (308 kg) 677 (308 kg) 1082 (492 kg) | |
| 10” (250 mm) 10” (250 mm) | 20” (500 mm) 24” (600 mm) | (1270 50” mm) 64.96” (1650 mm) | 27.71” (704 mm) 34.25” (870 mm) | 30 30 | 17.2 (1.188) 17.2 (1.188) | 17.2 (1.188) 17.2 (1.188) | 1100 (500 kg) 1100 (500 kg) | |
| 12” (300 mm) | 24” (600 mm) | 57.8” (1470 mm) | 30.1” (762 mm) | 30 | 17.2 (1.188) | 17.2 (1.188) | 1491 (678 kg) | |

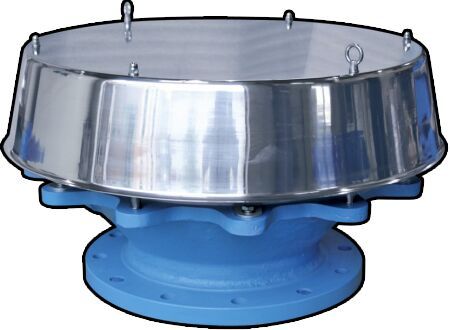

We are engaged in providing a wide assortment of End Line Flame Arrester, which is broadly used in various heavy metal industry applications for numerous purposes. In addition to this, our offered products are designed by employing advanced technology and premium grade raw material in tandem with the accepted norms and guidelines of the industry at our setup.
Specification :
