Our Product / Services
Our product range contains a wide range of High Voltage Breakdown Tester, High Voltage Breakdown Flash Tester, High Voltage Tester, ac high voltage breakdown tester and Breakdown Voltage Testers

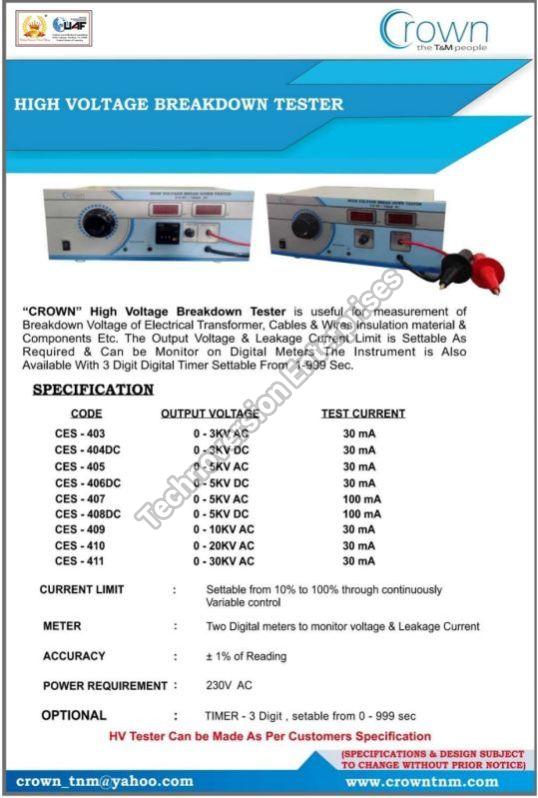

HIGH VOLTAGE BREAKDOWN TESTER -
MODEL -CES 405
RANGE - 0 - 5KV AC/30mA
CURRENT LIMIT : Settable from 10% to 100% through continuouslyVariable control
METER : Two Digital meters to monitor voltage & Leakage Current
ACCURACY : 1% of Reading
POWER REQUIREMENT : 230VAC
OPTIONAL:
TIMER : 3 Digit, setable from 0-999Sec
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 Day
high voltage breakdown tester -
model -ces 405
range - 0 - 5kv ac/30ma
current limit : settable from 10% to 100% through continuouslyvariable control
meter : two digital meters to monitor voltage & leakage current
accuracy : 1% of reading
power requirement : 230vac
optional:
timer : 3 digit, setable from 0-999sec
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 Day
high voltage breakdown tester -
model -ces 403
range - 0 - 3kv ac/30ma
current limit : settable from 10% to 100% through continuouslyvariable control
meter : two digital meters to monitor voltage & leakage current
accuracy : 1% of reading
power requirement : 230vac
optional:
timer : 3 digit, setable from 0-999sec
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 Day
high voltage breakdown tester -
model -ces 407
range - 0 - 5kv ac / 100ma
current limit : settable from 10% to 100% through continuouslyvariable control
meter : two digital meters to monitor voltage & leakage current
accuracy : 1% of reading
power requirement : 230vac
optional:
timer : 3 digit, setable from 0-999sec
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 Day
high voltage breakdown tester -
model -ces 409
range - 0 - 10kv ac / 30ma
current limit : settable from 10% to 100% through continuouslyvariable control
meter : two digital meters to monitor voltage & leakage current
accuracy : 1% of reading
power requirement : 230vac
optional:
timer : 3 digit, setable from 0-999sec
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 Day
HIGH VOLTAGE BREAKDOWN TESTER -
MODEL -CES 403
RANGE - 0 - 3KV AC/30mA
CURRENT LIMIT : Settable from 10% to 100% through continuouslyVariable control
METER : Two Digital meters to monitor voltage & Leakage Current
ACCURACY : 1% of Reading
POWER REQUIREMENT : 230VAC
OPTIONAL:
TIMER : 3 Digit, setable from 0-999Sec
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 Day
moving iron type ac/dc voltmeter -
model - ces 1004
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 Day
moving coil type dc voltmeter -
model - ces1006
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 Day
DC HIGH VOLTAGE BREAKDOWN TESTER
0 - 3KV DC/30mA Range 0 - 3kv dc / 30milliAmp
Current limit - Settable from 10% to 100% through continuously variable control
Meter - Two digital meters to monitor voltage & leakage current
Accuracy - +/- 1% of reading
Power requirement - 230V AC
We offer good quality of High Voltage Break Down Tester 0-3KV/30mA DC. It is useful for the breakdown voltage of electrical transformer, cables & wires, insulation material & components etc.
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 day
HIGH VOLTAGE BREAKDOWN (FLASH)TESTERS -
( with kv and mV meters, automatic tripping facility, safety probe, audio and visual alarm facilities) Mains operated.
RANGE -0 to 10KV, 1 to 30 milli amps tripping level setting.
Model - PPC-215
Size (mm) - 250 x 200 x 290
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 day
HIGH VOLTAGE BREAKDOWN TESTER
MODEL - CES 406DC
RANGE - 0 - 5KV DC/30mA
Current limit - Settable from 10% to 100% through continuously variable control
Meter - Two digital meters to monitor voltage & leakage current
Accuracy - +/- 1% of reading
Power requirement - 230V AC
OPTIONAL:
TIMER : 3 Digit, setable from 0-999Sec
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 day
HIGH VOLTAGE BREAKDOWN TESTER
RANGE - 0 - 5KV AC/30mAMODEL - CES 405
Meter - Two digital meters to monitor voltage & leakage current
Current limit - Settable from 10% to 100% through continuously variable controlAccuracy - +/- 1% of readingPower requirement - 230V AC
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 day

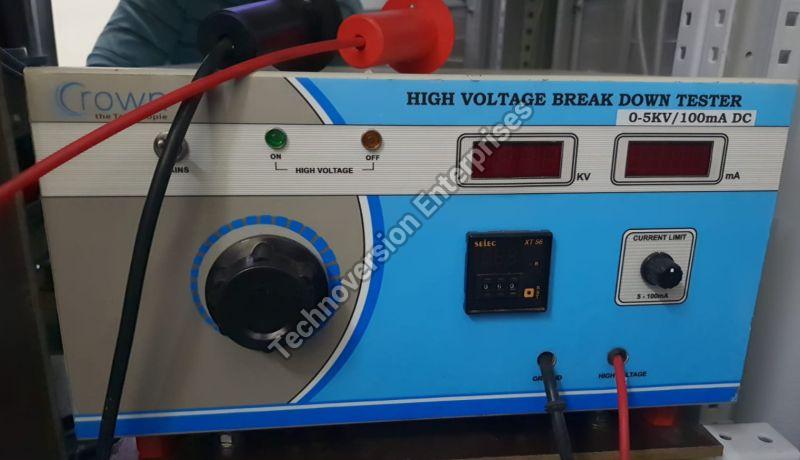

HIGH VOLTAGE BREAKDOWN TESTER
MODEL - CES 408DC
RANGE - 0 - 5KV DC/100mA
Current limit - Settable from 10% to 100% through continuously variable control
Meter - Two digital meters to monitor voltage & leakage current
Accuracy - +/- 1% of reading
Power requirement - 230V AC
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 day
HIGH VOLTAGE BREAKDOWN TESTERMODEL - CES 411range - 0 - 30KV AC/30mA
Current limit - Settable from 10% to 100% through continuously variable control
Meter - Two digital meters to monitor voltage & leakage current
Accuracy - +/- 1% of reading
Power requirement - 230V AC
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 day

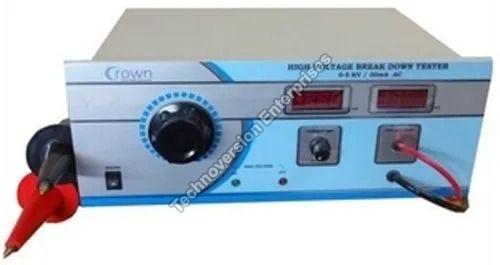

HIGH VOLTAGE BREAKDOWN TESTER
MODEL - CES 407
RANGE - 0 - 5KV AC/100mA
Current limit - Settable from 10% to 100% through continuously variable control
Meter - Two digital meters to monitor voltage & leakage current
Accuracy - +/- 1% of reading
Power requirement - 230V AC
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 day
HIGH VOLTAGE BREAKDOWN TESTER
MODEL - CES 409
RANGE - 0 - 10KV AC/30mA
Current limit - Settable from 10% to 100% through continuously variable control
Meter - Two digital meters to monitor voltage & leakage current
Accuracy - +/- 1% of reading
Power requirement - 230V AC
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 day
HIGH VOLTAGE BREAKDOWN TESTER
MODEL - CES 410
RANGE - 0 - 20KV AC/30mA
Current limit - Settable from 10% to 100% through continuously variable control
Meter - Two digital meters to monitor voltage & leakage current
Accuracy - +/- 1% of reading
Power requirement - 230V AC
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 day
