Our Product / Services
We offer a complete product range of ac dc power supplies, DC VARIABLE POWER SUPPLY, linear dc power, Dc Regulated Power Supply and programmable dc power supply
Input Voltage - 230V +/-10% AC 50 Hz
Output Type - Single
Output Voltage - 0-32V
Output Current - 0-10A
Load regulation(CV) - +- 0.05% +- 3mV From no load to full load
Load regulation (CC) - +-0.05% +- 1mA from no load to full load
Line regulation(CV) - +- 0.01% +-3 mV for +-10% variation input voltage
Line regulation (CC) - +- 0.01% +- 1mA for +-10% variation input voltage
Ripple Less than - 1 mV
Meter - Two digital meters to monitor the output voltage and current
Protection - Against short circuit and over load

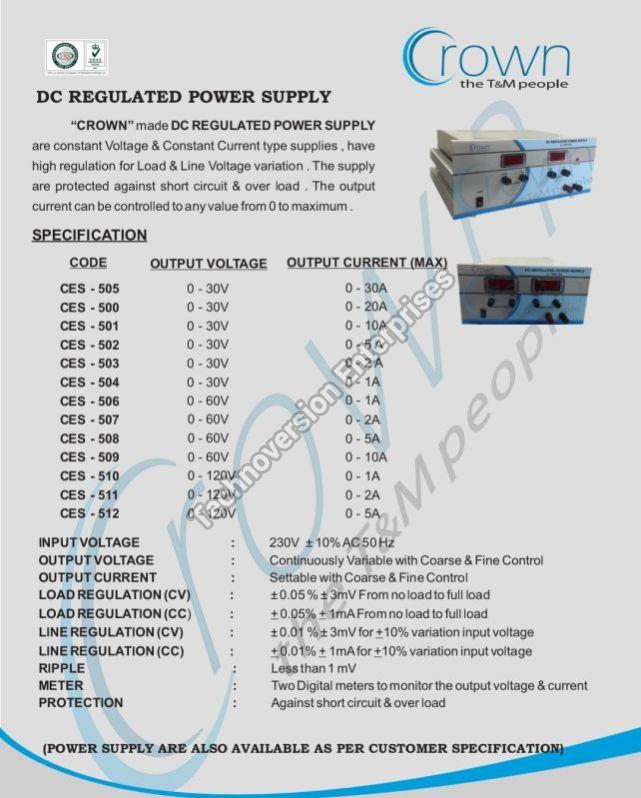

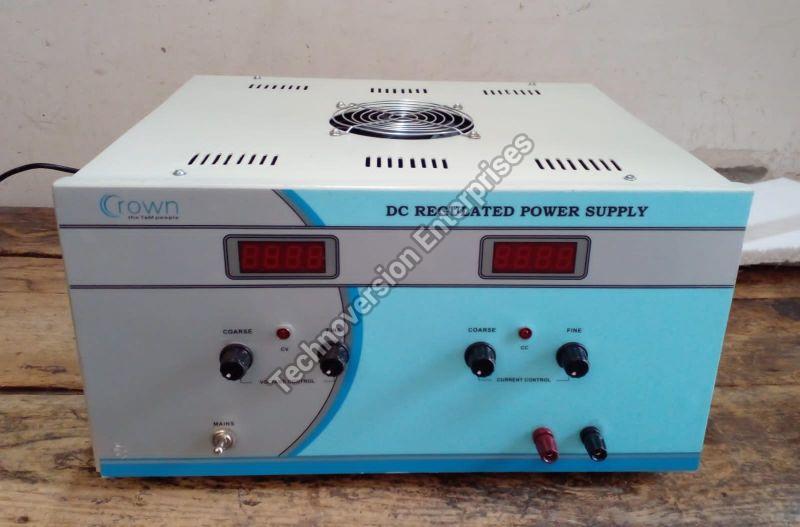

DC Power Supply 0-10A are constant Voltage & Current Constant type supplies, have high regulation for Load & Line Voltage variation. The supply is protected against short circuit & over load. The output current can be controlled to any value from 0 to maximum.
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 Day
Output Type - Single

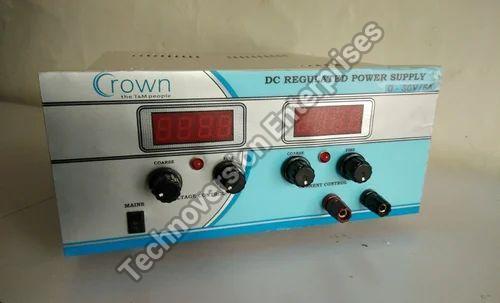

Output Voltage - 0-30V
Output Current - 0-5A
Ripple Less than - 1 mV
Meter - Two digital meters to monitor the output voltage and current
Protection - Against short circuit and over load

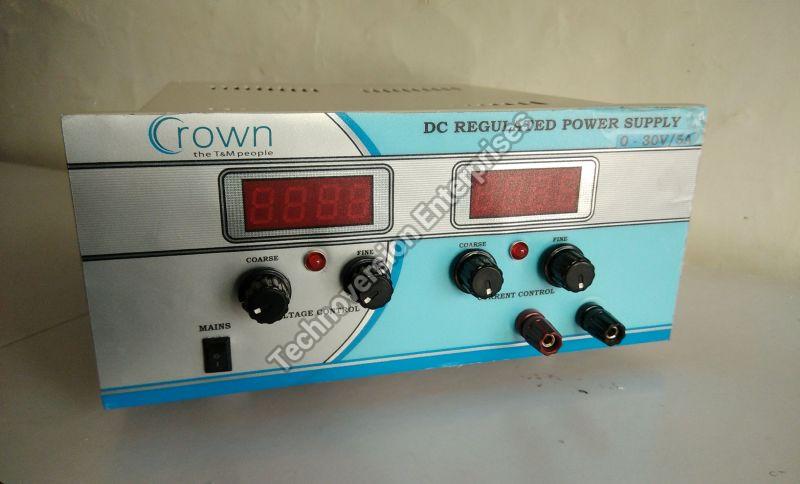

CROWN made DC Power Supply 0-30V/0-5A are constant Voltage & Current Constant type supplies, have high regulation for Load & Line Voltage variation. The supply is protected against short circuit & over load. The output current can be controlled to any value from 0 to maximum.
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 day
Output Type - Single
Output Voltage - 0-64V
Output Current - 0-5A
Load regulation(CV) - +/- 0.05% +/- 3mV From no load to full load
Load regulation (CC) - +/-0.05% +/- 1mA from no load to full load
Line regulation(CV) - +/- 0.01% +/-3 mV for +/-10% variation input voltage
Line regulation (CC) - +/- 0.01% +/- 1mA for +/-10% variation input voltage
Ripple Less than - 1 mV
Meter - Two digital meters to monitor the output voltage and current
Protection - Against short circuit and over load
DC Regulated Power Supply 0-64V/1A are constant Voltage & Current Constant type supplies, have high regulation for Load & Line Voltage variation. The supply is protected against short circuit & over load. The output current can be controlled to any value from 0 to maximum.
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 day
Input Voltage - 230V +/-10% AC 50 Hz
Output Type - Single
Output Voltage - 0-128V
Output Current - 0-2A
Load regulation(CV) - +- 0.05% +- 3mV From no load to full load
Load regulation (CC) - +-0.05% +- 1mA from no load to full load
Line regulation(CV) - +- 0.01% +-3 mV for +-10% variation input voltage
Line regulation (CC) - +- 0.01% +- 1mA for +-10% variation input voltage
Ripple Less than - 1 mV
Meter - Two digital meters to monitor the output voltage and current
Protection - Against short circuit and over load
DC Power Supply 0-128V / 2Ampare constant Voltage & Current Constant type supplies, have high regulation for Load & Line Voltage variation. The supply is protected against short circuit & over load. The output current can be controlled to any value from 0 to maximum.
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 Day
Output Type - Single
Output Voltage - 0-30V
Output Current - 0-20A
Ripple Less than - 1 mV
Meter - Two digital meters to monitor the output voltage and current
Protection - Against short circuit and over load
DC Power Supply 0-30V/0-20A are constant Voltage & Current Constant type supplies, have high regulation for Load & Line Voltage variation. The supply is protected against short circuit & over load. The output current can be controlled to any value from 0 to maximum.
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 Day
Input Voltage - 230V +/-10% AC 50 hZ
Output type - Multiple (Triple Output)
Output voltage/current - (a) 0 - 32v dc / 2 amp (b&c) 0 - +/- 15 v dc / 1 amp (d) 0 - 5v dc / 5 amp
Ripple Less than - 1 mv
Operating mode (b &c) - Independent & tracking mode
Meter 2 - digital meters to monitor the output voltage & current of output a
Protection - Against short circuit & over load
Multi Output DC Regulated Power Supply are constant Voltage & Current Constant type supplies, have high regulation for Load & Line Voltage variation. The supply is protected against short circuit & over load. The output current can be controlled to any value from 0 to maximum.
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 day

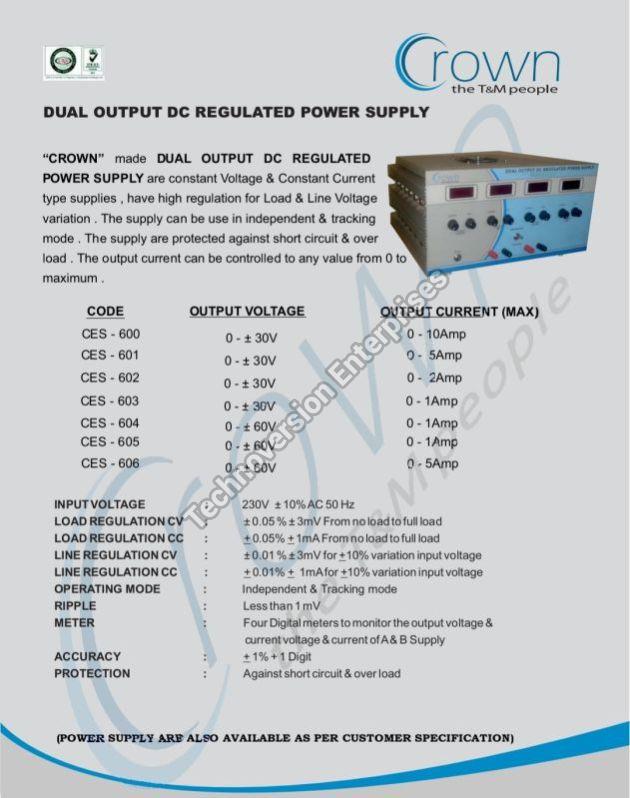

Model - CES 600
Input Voltage - 230V +/-10% AC 50 Hz

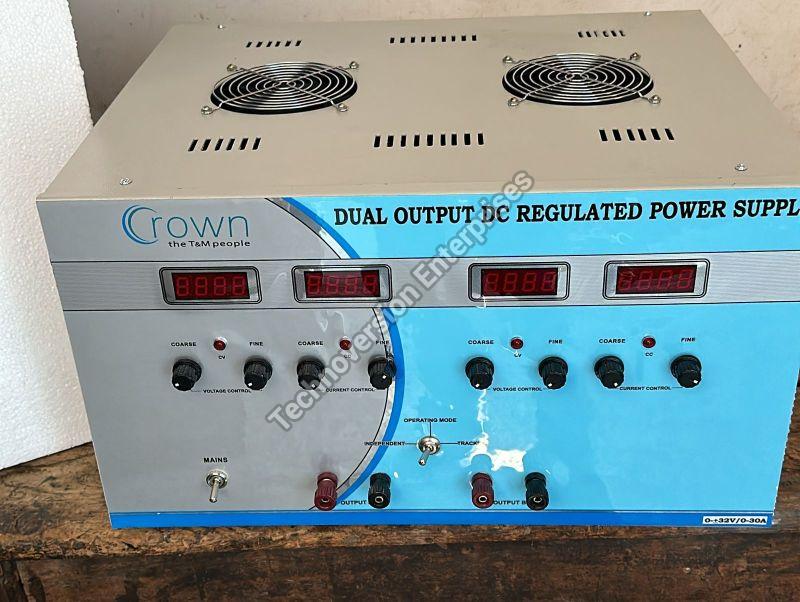

Output Type - Dual
Output Voltage - 0-32V
Output Current - 10A
Ripple Less than - 1 mV
Meter - Four digital meters to monitor the output voltage and current
Protection - Against short circuit and over load
Dual Output DC Regulated Power Supply 0-32V/20A are constant Voltage & Current Constant type supplies, have high regulation for Load & Line Voltage variation. The supply is protected against short circuit & over load. The output current can be controlled to any value from 0 to maximum.
Input Voltage - 230V +/-10% AC 50 hZ
Output Voltage - 0-300 V
Phase - Single phase
Output current - 0 - 2A
Ripple - 3 MV
Meter - Two digital meters to monitor the output voltage & current
Indication - LED for cv & cc operating mode
Accuracy - +/- 1% +/- 1 digit
Protection - Against short circuit & over load

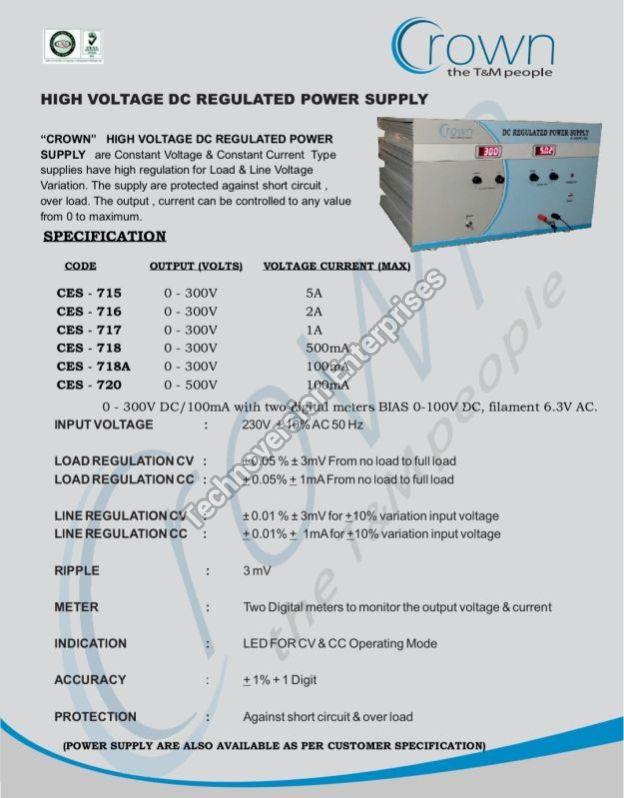

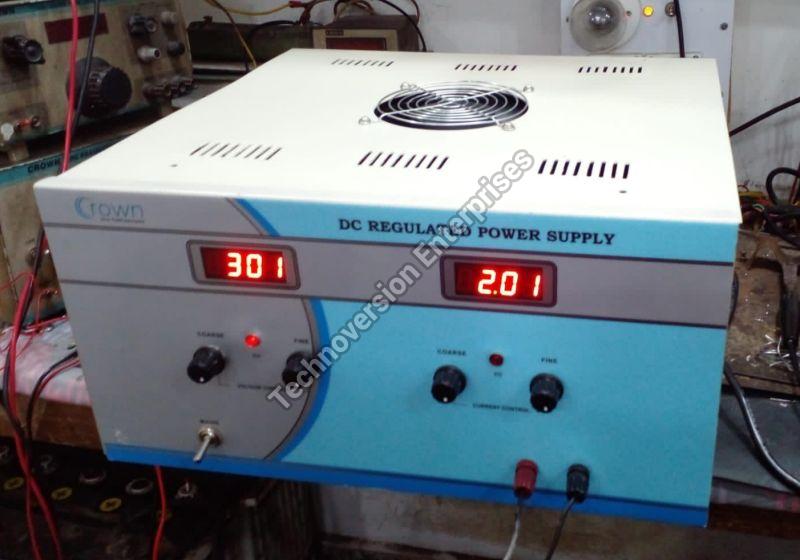

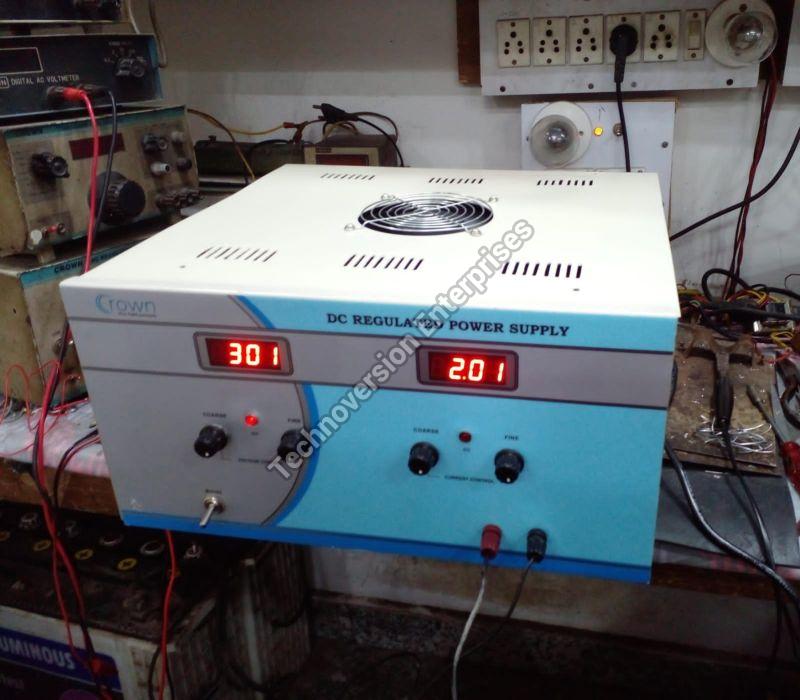

High Voltage DC Regulated Power Supply 0-300V/2A are constant Voltage & Current Constant type supplies, have high regulation for Load & Line Voltage variation. The supply is protected against short circuit & over load. The output current can be controlled to any value from 0 to maximum.
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 Day

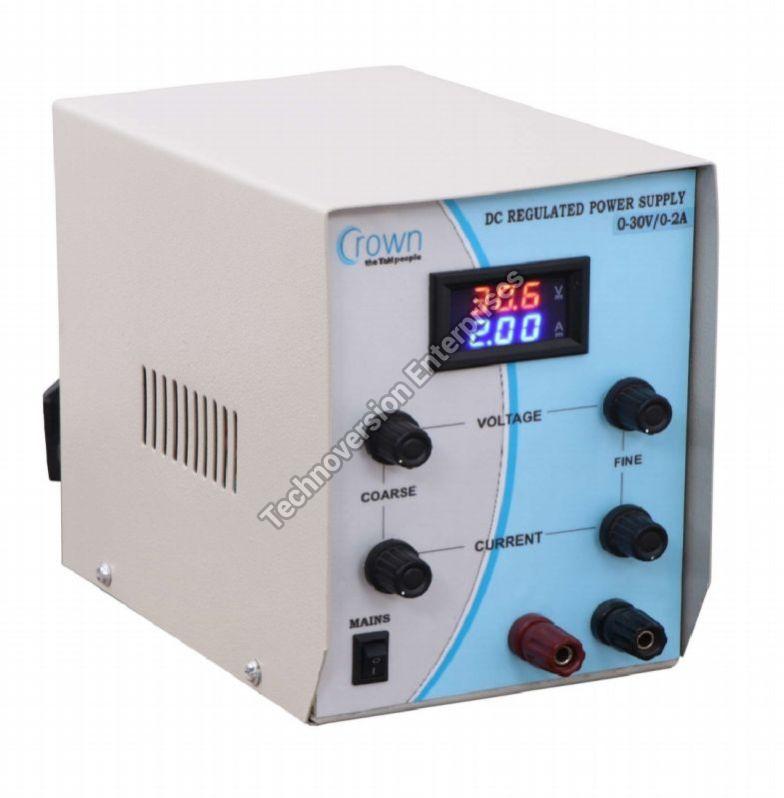

Output Type - Single
Output Voltage - 0-30V
Output Current - 0-2A
Ripple Less than - 1 mV
Meter - Two digital meters to monitor the output voltage and current
Protection - Against short circuit and over load
“CROWN” made DC Power Supply 0-30V/0-2A are constant Voltage & Current Constant type supplies, have high regulation for Load & Line Voltage variation. The supply is protected against short circuit & over load. The output current can be controlled to any value from 0 to maximum.
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 Day
Input Voltage - 230V +/-10% AC 50 Hz

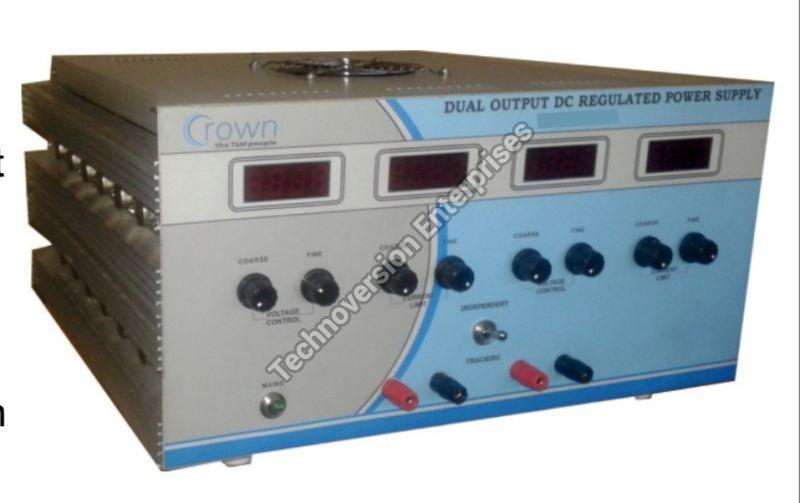

Output Type - Dual
Output Voltage - 0-300V
Output Current - 0-5A
Ripple Less than - 1 mV
Meters - Four Digital meters to monitor the output voltage & current voltage & current of A & B Supply
OPERATING MODE - Independent & Tracking mode
ACCURACY - +/- 1% +/- 1 Digit
PROTECTION - Against short circuit & over load

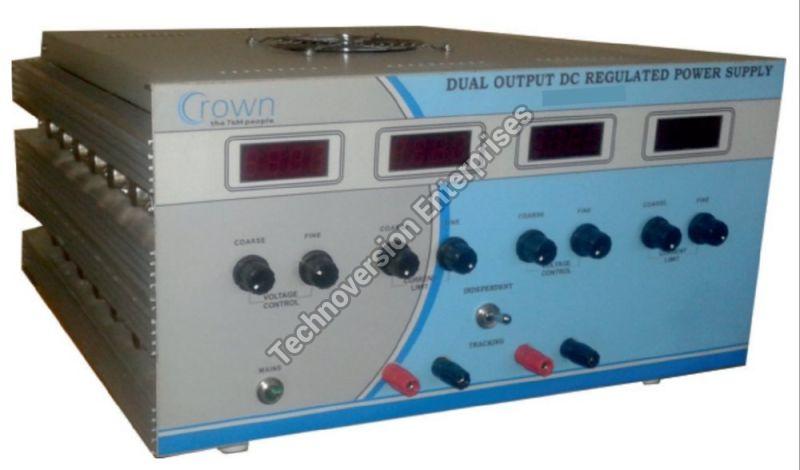

Dual Output DC Power Supply are constant Voltage & Current Constant type supplies, have high regulation for Load & Line Voltage variation. The supply is protected against short circuit & over load. The output current can be controlled to any value from 0 to maximum.
Additional Information:
Delivery Time : 3-4 days

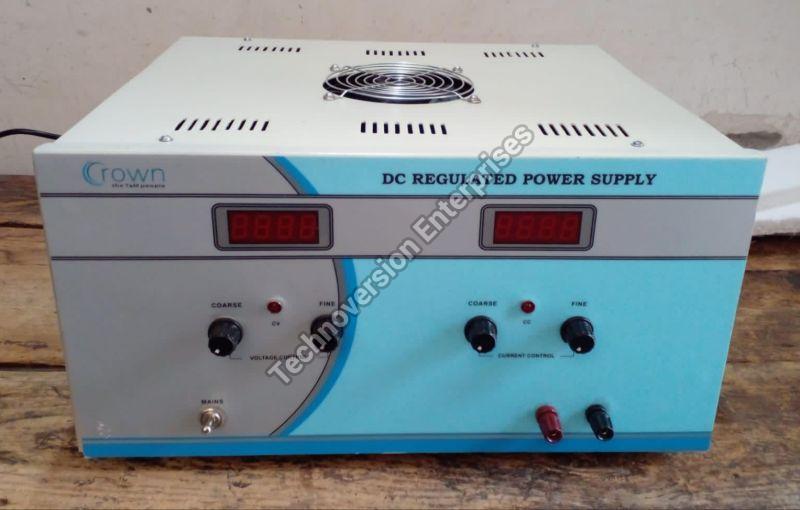

Output Type - Single
Output Voltage - 0-32V
Output Current - 30A
Ripple Less than - 1 mV
Meter - Two digital meters to monitor the output voltage and current
Protection - Against short circuit and over load

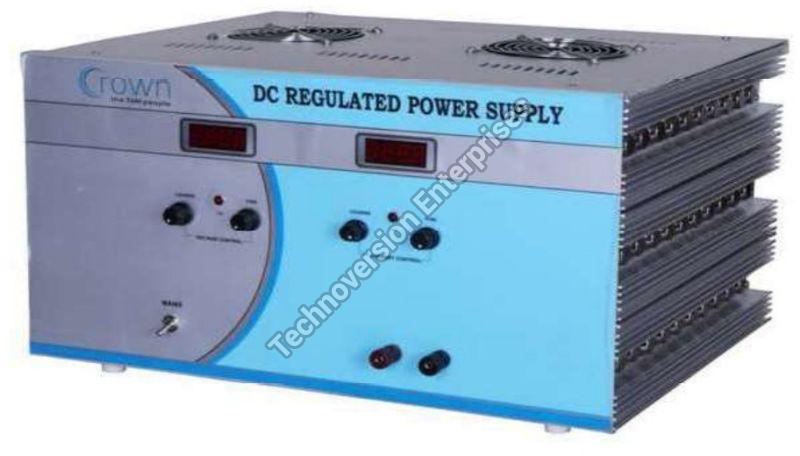

DC Regulated Power Supply 0-32V/30A are constant Voltage & Current Constant type supplies, have high regulation for Load & Line Voltage variation. The supply is protected against short circuit & over load. The output current can be controlled to any value from 0 to maximum.
Additional Information:
Delivery Time : 2-3 days

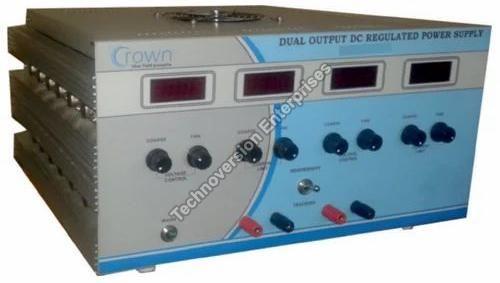

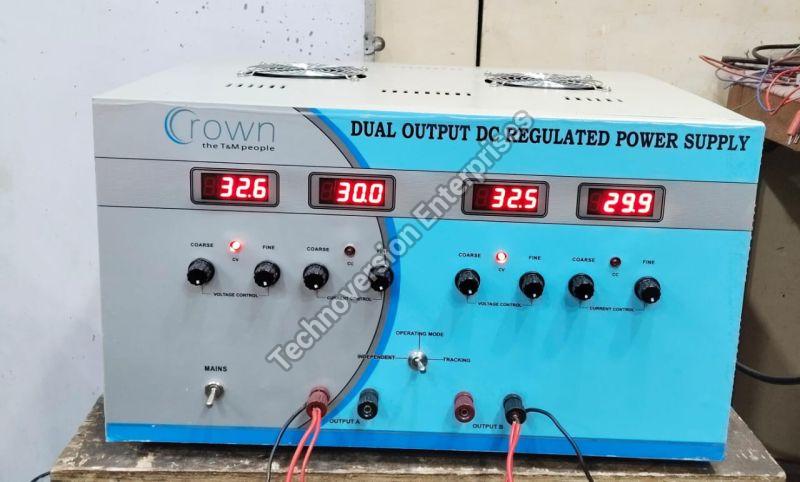

Input Voltage - 230V +/-10% AC 50 hZ
Output Voltage - 0-30V
Output type - Dual
Output current - 0-2A
Ripple Less than - 1 mv
Meters - Four digital meters to monitor the output voltage & current voltage & current of a & b supply
Operating mode - Independent & tracking mode
Indication - LED for cv & cc operating mode
Accuracy - + 1% + 1 digit
Protection - Against short circuit & over loadDual Output DC Regulated Power Supply are constant Voltage & Current Constant type supplies, have high regulation for Load & Line Voltage variation. The supply is protected against short circuit & over load. The output current can be controlled to any value from 0 to maximum
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 day
