Our Product / Services
We are leaders in the market for providing best range of Phase Sequence Relay (Din Rail Mount), Single Phase Digital Current Protection Relay (Din Rail), Earth to Neutral Voltage Relay and Earth Fault Relay (Without CBCT)

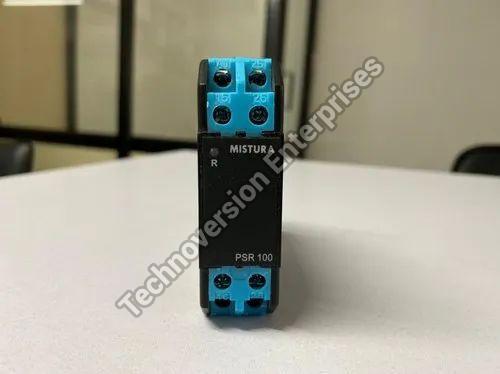

Model - PSR100
Description - Phase Sequence
Output Contact - 1 C/0 (SPDT)
response time - 100 msec
power on delay - 100 msec
Tripping on: Phase sequence, Phase Loss, Phase Asymmetry
Size (HxWxD)mm - Din Rail mounting
Input - 160 to 500VAC (L-L)
Output - Relay-1 For Tripping
Size - 22.5 mm (H)*75mm (W)*101 mm (D)
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 day

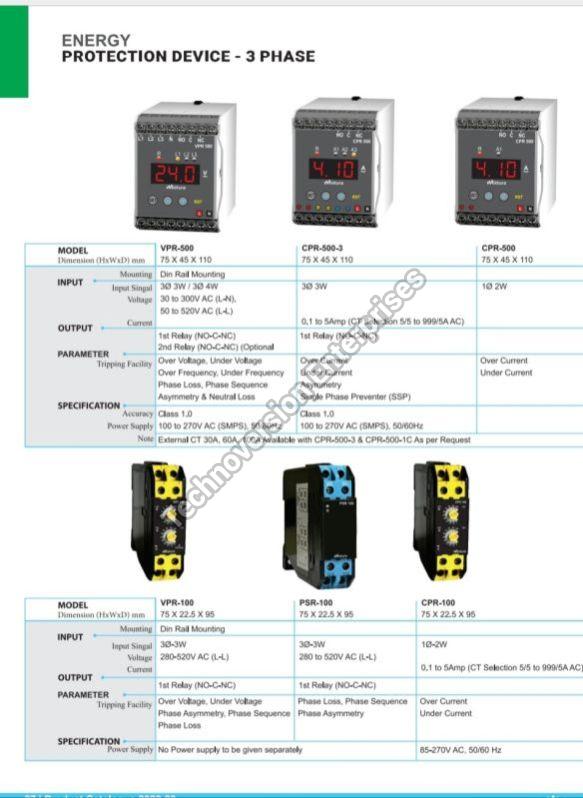

Single Phase Digital Current Protection Relay (Din Rail) -
3 Digit Single Display
Model No. - CPR-500 (1 Phase) 1 CT
Size (HxWxD)mm - Din Rail mounting (110 x 3 5 x 75)
Aux Supply 85-270 VAC, 50Hz
Input CT Selectable upto 5/5 to 999/5A AC
Output Relay-1 For Tripping
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 day

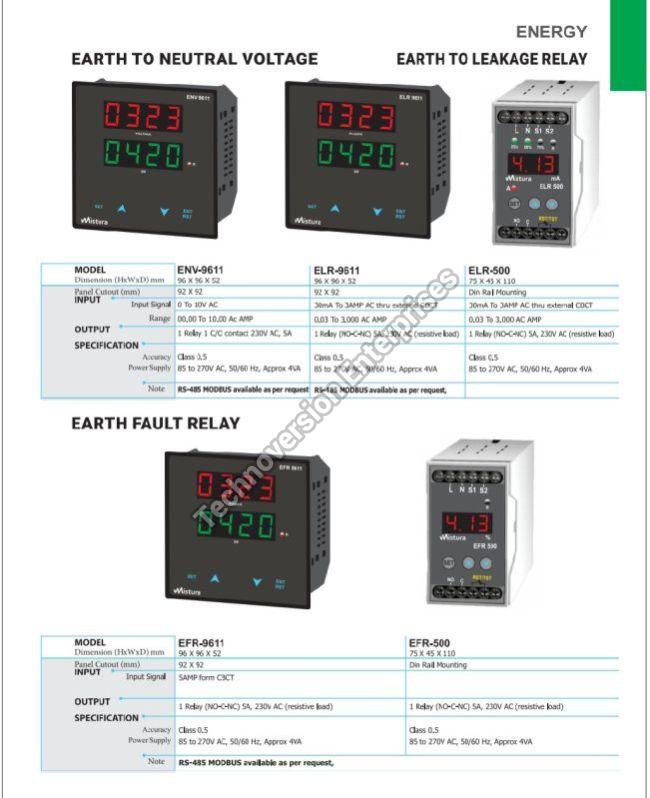

Earth to Neutral Voltage Relay -
4 + 4 Digit Dual Display
Model No.- ENV-9611
Size (HxWxD)mm - 96 X 96 X 50
Aux Supply - 85-270VAC, 50Hz
Input - 10.00V AC
Output - Relay-1 For Tripping
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T, Western Union
Delivery Time : 2-3 day

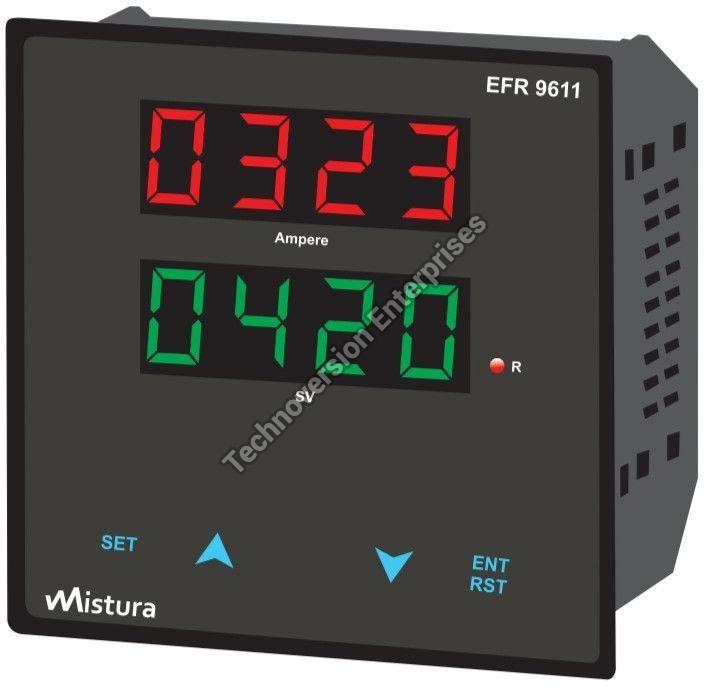

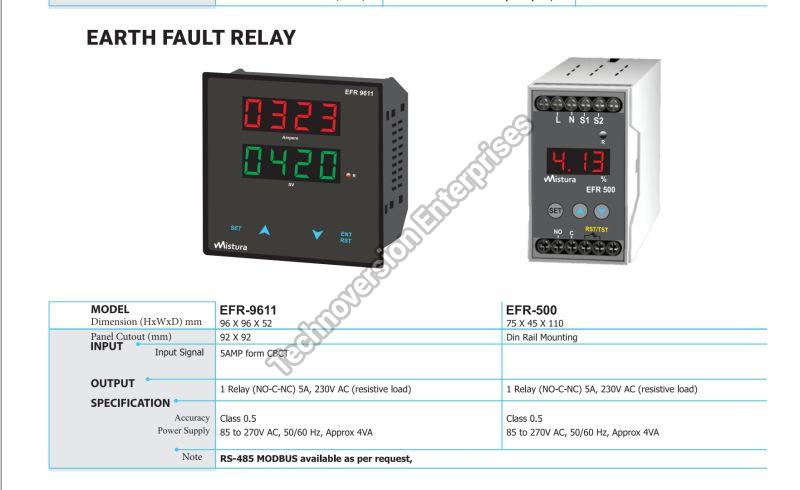

Earth Fault Relay (Without CBCT)
4 Digit Single Display
Model No.- EFR-9611
Size (HxWxD)mm - 96 X 96 X 50
Aux Supply - 85-270VAC, 50Hz
Input - 5 Amp from CBCT
Output - Relay-1 For Tripping
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T, Western Union,
Delivery Time : 2-3 day
Panvel, Navi Mumbai, Maharashtra
