Spectronics India

Zirakpur, Punjab

Features

• Unique optical system, 1200 lines/mm grating and  imported receiver to ensure its sound performance
• The instruments is supply with PC software expands the capabilities of the instrument includes.
• Photometric analysis, Quantitative analysis, Spectral scanning, Kinetics, DNA/protein analysis, Multi-wavelength test etc.
• Adopts 51 microcomputer system and store 200 test data and 100 standard curves
• Plug type deuterium lamp and tungsten lamp transfer lamps without optics debugging.

Application

• Medicine/Pharmaceutical Industry
• Environmental Monitoring
• Commodity Inspection, Food Inspection
• Agricultural Chemistry, Teaching in Colleges
• Universities, Metallurgy , Geology
• Machine Manufacturing, Petrochemical Industry
• Water and Waste Water Labs
• Food and Beverage Labs

Salient features

• The wavelength Range 190 - 1100
• Wavelength selection by numeric keypad.
• Spectral Bandwidth 2nm, Can save 50 groups of curve equation.
• Auto setting wavelength, auto zero and blank
• Tungsten lamp & Deuterium lamp can be turned on/off individually to extend shelf life.

Standard Configuration

• Main Set, USB Cable-1,
• Power Cable-1
• Square Glass Cell- 4 Nos,
• Quartz Cell -2Nos. (1cm)
• Software CD - 1, Softwry Key - 1,
• Operating Manual Software
• Dust Cover & Operating Manual

We are a most trusted name in between the topmost companies offering UV VIS Double Beam Spectrophotometer. Our product range is extensively used in different industries. To attain the maximum satisfaction of clients, we provide this UV VIS Double Beam Spectrophotometer at most reasonable price.

Applications

• Medicine/Pharmaceutical Industry
• Environmental Monitoring
• Commodity Inspe ction
• Food Inspection
• Agricultural Chemistry
• Teaching in Colleges & Universities
• Metallurgy
• Geology
• Machine Manufacturing
• Petrochemical Industries
• Water and Waste Water Labs
• Food and Beverage Labs

Standard Accessories

• Glass cells  :  4 Nos.
• Quartz cells : 2 Nos.
• Instrument Cover  : 1 No.
• Software CD : 1 No.
• USB Cable : 1 No.
• Operational Manual : 1 No.
• Software Manual : 1 No.

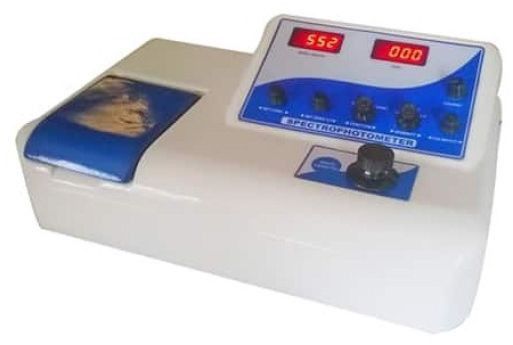

Microprocessor Visible Spectrometer has the advantage of high wavelength precision, good monochromaticity and low stray light. The monochromator with a holographic flashing grating is used. A sample compartment for 0.5cm-10cm cells.

Salient Features

• Automatic switching
• Computer control system, precise Automatic T/A changeover.
• Automatic zero and full scale adjustment setting function.
• Printer can be connected and data can be sent to PC by special software.
• Accurate & Stable

Accessories

• Glass Cell -10mm
• Power Cable
• Fuse (3A)

Technical SpecificationsModel SI-102 SI-104Display Data : 3 12 digit LED Display3 digit display for Wavelength Data : 3 12 digit LED Display3 digit display for WavelengthRange 340 to 960 nm 340 to 960 nmResolution 0.1%T, 0.001 Abs, conc.1 0.1%T, 0.001 Abs, conc.1Output %T: 0 to 100%, Abs; 0 to 1.999, Conc. 0 to 1999 %T: 0 to 100%, Abs; 0 to 1.999, Conc. 0 to 1999Detector Silicon Photodiode Silicon PhotodiodeMonochromator 600 Lines mm holographic grating 600 Lines mm holographic gratingSample Holder 10 mm 10 mm and 50mm path Length facility.Spectral Bandwidth 5 nm 5 nmWave Length Resolution 1 nm 1 nmWave Length Accuracy 2.5 nm 2.5 nmRepeatability 2 nm 2 nmPower 230V &10 % AC 50 HZ 230V 10 % AC 50 HZDimensions L475 x B290 x H190 mm L475 x B290 x H190 mmWeight 8 kg (approx.) 8 kg (approx.)Accessories Cuvtte - 10mm (dia.) 10no, Dustcover, Operation Manual. Cuvtte - 10mm & 50mm, Dustcover, Operation Manual.

UV-visible spectrophotometer, an analytical instrument commonly used in physico-chemical laboratories to make quantitative and qualitative analysis of specimen materials in the ultraviolet, visible spectral range finds much scope for its service in such fields as medicine, clinical examination, biochemistry, petro-chemical industry. Bio technology, Environmental protection and quality control. The technique has enjoyed a molecular biology and the need to quantify DNA and proteins. Here, the simplicity of use, the non-destructive nature of the sampling and the cost effectiveness of the measurement has proved very beneficial in the modern laboratory.

Salient Features

• Cover 195 to 1020nm
• 4 Position Cuvette Holder
• High wavelength Precision
• Highly Accurate & Stable

DIGITAL SPECTROPHOTOMETER is compact and easy to operate instruments with dual display for Data & Wavelength. This is a unique system that combines convenience with accuracy and precision in analysis.

Salient features

• Dual Digital Display for
• Wavelength & data.
• Wavelength Resolution 1nm
• Direct Concentration Facility
• 10/50mm Corvettes holder.

Accessories

• Square Cuvttes
• Dustcover
• Instruction Manual

Features

• Sturdy structure
• Easy to operate
• Non corrosive
• Accurate reading
• Dual Digital Display for Wavelength & data.
• Wavelength Resolution 1nm
• Direct Concentration Facility
• 10 mm & 50 mm path length (SI-104)

Standard Configuration

• Main Instrument : 1 Unit
• Operational Manual : 1 No.
• Power Cable : 1 No.
• Glass Cell 10mm : 4nos.





Characteristics

• The monochromator with a holographic flashing grating is used.
• It has the advantage of high wavelength precision, good monocchromaticicy abd low stray light.
• A sample ccompartment for 0.5cm-10 cells.
• Direct concentration read-out and concentration factor setting  function.

Standard Configuration

• Main Instrument : 1 Unit
• Operational Manual : 1 No.
• Power Cable : 1 No.
• Glass Cell 10mm : 4nos.
