2 Products availableThe Stone Multicutter is a versatile machine designed for cutting various types of materials such as stone, granite, marble, and other hard substances. It typically incorporates multiple cutting blades or tools arranged in a configuration that allows for precise and efficient cutting. This equipment is commonly used in industries such asMore..

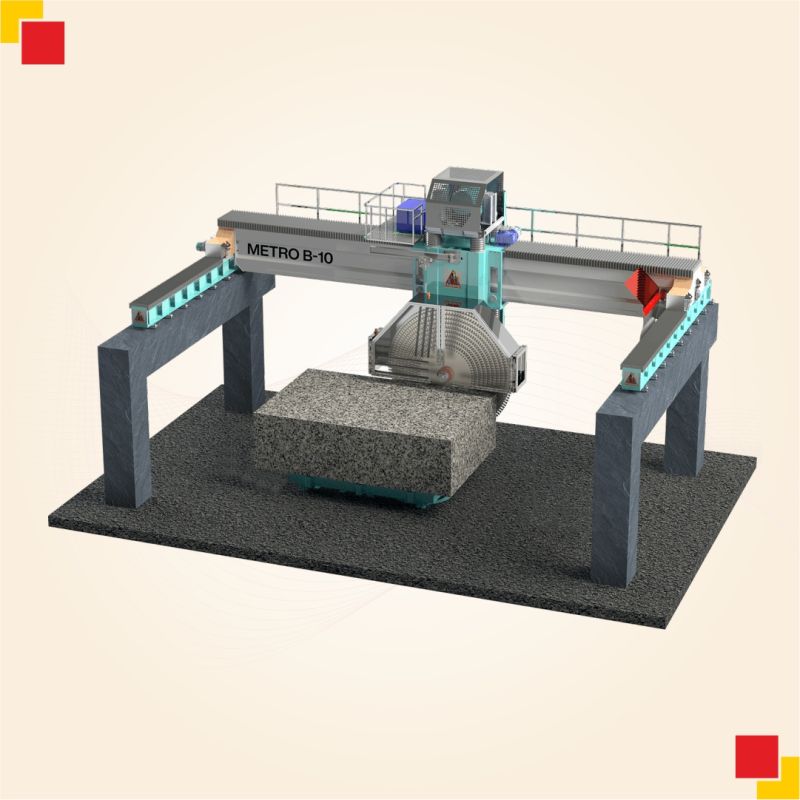

The Metro B-10 are advanced versions of the B-12 model, offering superior performance and a more comprehensive presence in every aspect of its operation. Bhagwati has incorporated several key enhancements, including side entry cutting with an extended beam and a redesigned spindle. These improvements translate into a machine that is not only more powerful but also more efficient and notably silent.
Furthermore, the Metro B-10 features a newly designed hydraulic up-down system and a faster bridge speed. These enhancements result in a remarkable increase in production efficiency while concurrently reducing power consumption.
Key Features :
Specifications
TECHNICAL SPECIFICATIONS | |
---|---|
PARAMETER | VALUE |
Useful Cutting Block Size (LXWXH) | 3657 mm X 2134mm X 1066mm |
Machine Suitable Up to Blade Dia. | 2.4/2.5 Meter |
No. of Blade Mounting Provision | 10 Blades |
Main Spindle Housing Type | Single RPM Technology |
Beam Length | 8.5 Meter (Fabricated) |
End Carriages Length | 4.5 Meters |
AXIS MOTION | |
PARAMETER | VALUE |
X Axis | LM Slide with Rack & Pinion Arrangement |
Y Axis | LM Slide with Rack & Pinion Arrangement |
Z Axis | Hard Chrome DU Bush |
SPEED & POWER | |
ARAMETER | VALUE |
X Axis Speed | 4 oscillation/Min |
X Axis | Induction Motor |
Y Axis (1 No.s) | Induction Motor |
Z Axis | Hydraulic System |
Main Spindle | 75 Hp. Sq. Cage Motor |
Control Panel | Automatic Standard Star Delta Type |
Operator Interface | Siemens HMI with Autometic PLC Control |
FEATURES | |
PARAMETER | VALUE |
Mud Protection Cover's | Cloth Fabric |
Z Axis | Parachute Fabric Bellow |
CABLES | |
PARAMETER | VALUE |
X Axis | IGUS German Make |
Y Axis | IGUS German Make |
Z Axis | IGUS German Make |
Block Feeding Trolley – 2 Nos. | 9X7 Feet Manual |
Slab Thickness Spacers | 1 Set (For Slab 16 mm to 20 mm) |

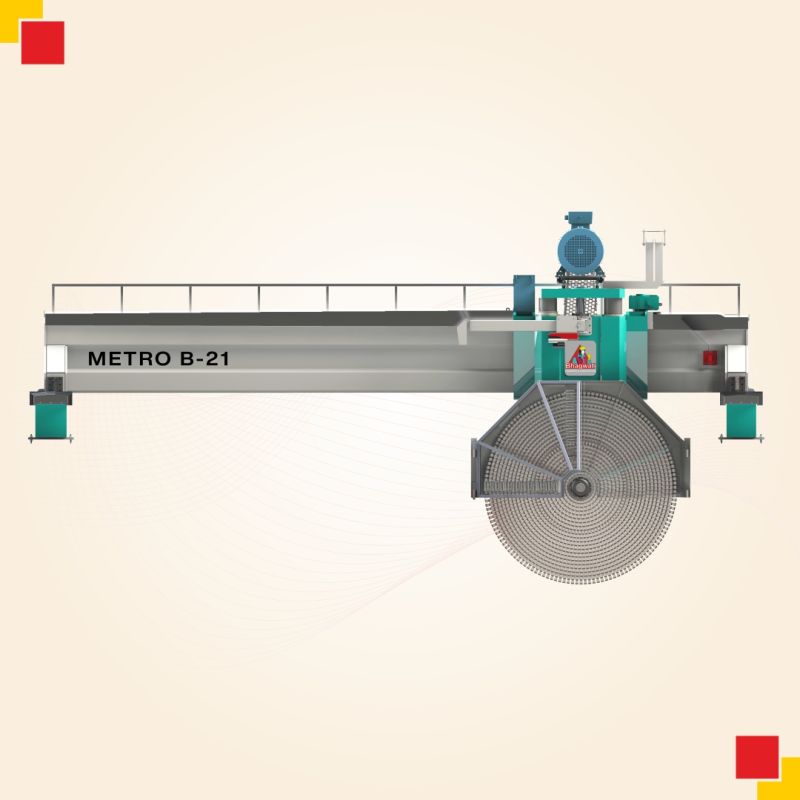

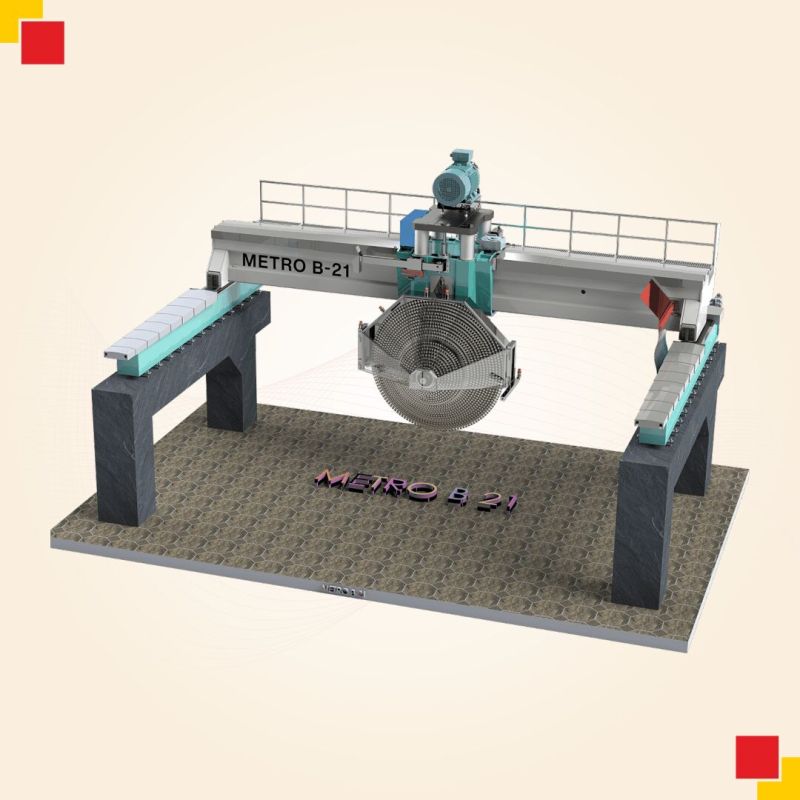

Shri Bhagwati Machine Pvt. Ltd. is the visionary behind the DRSH (DUAL RPM SINGLE HOUSING) technology. With a focus on innovation and excellence, we have redefined the cutting machine landscape. Metro B-21 is 6th generation masterpieces of Multi-Blade Granite Block Cutters are nothing short of technological marvels. Designed and crafted by Shri Bhagwati Machine Pvt. Ltd., they bring a new dimension to stone cutting. Their magical capabilities enable them to deliver top-tier production levels while keeping power costs minimal and cycle times shorter than ever before. The secret behind these remarkable products lies in their revolutionary DRSH (DUAL RPM SINGLE HOUSING) technology.
DRSH, or Dual RPM Single Housing, is a groundbreaking concept that defies conventional wisdom. This technology allows the machine to achieve unprecedented levels of production and tool longevity while consuming significantly less power. These machines aren't just about cutting-edge technology; they're also incredibly user-friendly. The programmed interface is designed with the user in mind, ensuring ease of operation. The use of "RITTAL" enclosure and switch gears from SIEMENS/SCHNEIDER guarantees the latest safety features, making them robust enough to withstand electrical fluctuations.
Key Features :
Specifications
TECHNICAL SPECIFICATIONS | ||
---|---|---|
MODEL | B-21 | B-21 PRO |
Useful Cutting Block Size (LXWXH) | 3657 mm X 2438mm X 1066mm | 3657 mm X 2438mm X 1066mm |
Machine Suitable Up to Blade Dia. | 2.4/2.5 Meter | 2.4/2.5 Meter |
No. of Blade Mounting Provision | 21/22 Blades | 21/22 Blades |
For 2.4 Dia. Set | 21 Blades | 21 Blades |
For 2.5 Dia. Set | 22 Blades | 22 Blades |
Main Spindle Housing Type | DUAL RPM Technology | DUAL RPM Technology |
AXIS MOTION | ||
MODEL | B-21 | B-21 PRO |
X Axis | LM Slide with Rack & Pinion Arrangement | LM Slide with Rack & Pinion Arrangement |
Y Axis | LM Slide with BALL SCREW Arrangement | LM Slide with BALL SCREW Arrangement |
Z Axis | Hard Chrome DU Bush | Hard Chrome DU Bush |
SPEED & POWER | ||
MODEL | B-21 | B-21 PRO |
X Axis Speed | 7 oscillation/Min | 7 oscillation/Min |
X Axis | Induction Motor | Induction Motor |
Y Axis (1 No.s) | Siemens Servo Driven | Siemens Servo Driven |
Z Axis | Hydraulic System | Hydraulic System |
Main Spindle | 150 Hp. Sq. Cage Motor | 180 Hp. Sq. Cage Motor |
Control Panel | Automatic Standard Star Delta Type / Drive Optional (AC Drive) | Automatic Standard Star Delta Type / Drive Optional (AC Drive) |
Operator Interface | Siemens 10” HMI with PLC Machine Control | Siemens 10” HMI with PLC Machine Control |
FEATURES | ||
MODEL | B-21 | B-21 PRO |
Mud Protection Cover's | Cloth Fabric | Cloth Fabric |
X Axis | SS Telescopic Bellow | SS Telescopic Bellow |
Y Axis | SS Telescopic Bellow | SS Telescopic Bellow |
Z Axis | Parachute Fabric Bellow | Parachute Fabric Bellow |
CABLES | ||
MODEL | B-14 | B-14 PRO |
X Axis | IGUS German Make | IGUS German Make |
Y Axis | IGUS German Make | IGUS German Make |
Z Axis | IGUS German Make | IGUS German Make |
Block Feeding Trolley – 2 Nos. | 9X8 Feet Manual | 9X8 Feet Manual |
Slab Thickness Spacers | 1 Set (For Slab 16 mm to 20 mm) | 1 Set (For Slab 16 mm to 20 mm) |
The Metro B-13 are advanced versions of the B-10 & B-12 model, offering superior performance and a more comprehensive presence in every aspect of its operation. Bhagwati has incorporated several key enhancements, including side entry cutting with an extended beam and a redesigned spindle. These improvements translate into a machine that is not only more powerful but also more efficient and notably silent.
this machine is designed for heavy-duty stone cutting operations and offers precise control and automation through a combination of hydraulic systems, linear bearings, gearboxes, and a user-friendly interface. It is built for accuracy, efficiency, and durability in the stone-cutting industry.
Furthermore, the Metro B-13 features a newly designed hydraulic up-down system and a faster bridge speed. These enhancements result in a remarkable increase in production efficiency while concurrently reducing power consumption.
Key Features :
Specifications
TECHNICAL SPECIFICATIONS | ||
---|---|---|
MODEL | B-13 | B-13 PRO |
Useful Cutting Block Size (LXWXH) | 3657 mm X 2438mm X 1066mm | 3657 mm X 2438mm X 1066mm |
Machine Suitable Up to Blade Dia. | 2.4/2.5 Meter | 2.4/2.5 Meter |
No. of Blade Mounting Provision | 14 Blades | 14 Blades |
For 2.4 Dia. Set | 14 Blades | 14 Blades |
For 2.5 Dia. Set | 13 Blades | 13 Blades |
Main Spindle Housing Type | Single RPM Technology | Single RPM Technology |
Beam Length | 8.5 Meter (Fabricated) | 8.5 Meter (Fabricated) |
End Carriages Length | 5 Meters | 5 Meters |
AXIS MOTION | ||
MODEL | B-13 | B-13 PRO |
X Axis | LM Slide with Rack & Pinion Arrangement | LM Slide with Rack & Pinion Arrangement |
Y Axis | LM Slide with Rack & Pinion Arrangement | LM Slide with Rack & Pinion Arrangement |
Z Axis | Hard Chrome DU Bush | Hard Chrome DU Bush |
SPEED & POWER | ||
MODEL | B-13 | B-13 PRO |
X Axis Speed | 5 oscillation/Min | 5 oscillation/Min |
X Axis | Induction Motor | Induction Motor |
Y Axis (1 No.s) | Induction Motor | Induction Motor |
Z Axis | Hydraulic System | Hydraulic System |
Main Spindle | 100 Hp. Sq. Cage Motor | 120 Hp. Sq. Cage Motor |
Control Panel | Automatic Standard Star Delta Type | Automatic Standard Star Delta Type |
Operator Interface | Siemens HMI with Autometic PLC Control | Siemens HMI with Autometic PLC Control |
FEATURES | ||
MODEL | B-13 | B-13 PRO |
Mud Protection Cover's | Cloth Fabric | Cloth Fabric |
Z Axis | Parachute Fabric Bellow | Parachute Fabric Bellow |
CABLES | ||
MODEL | B-13 | B-13 PRO |
X Axis | IGUS German Make | IGUS German Make |
Y Axis | IGUS German Make | IGUS German Make |
Z Axis | IGUS German Make | IGUS German Make |
Block Feeding Trolley – 2 Nos. | 9X8 Feet Manual | 9X8 Feet Manual |
Slab Thickness Spacers | 1 Set (For Slab 16 mm to 20 mm) | 1 Set (For Slab 16 mm to 20 mm) |

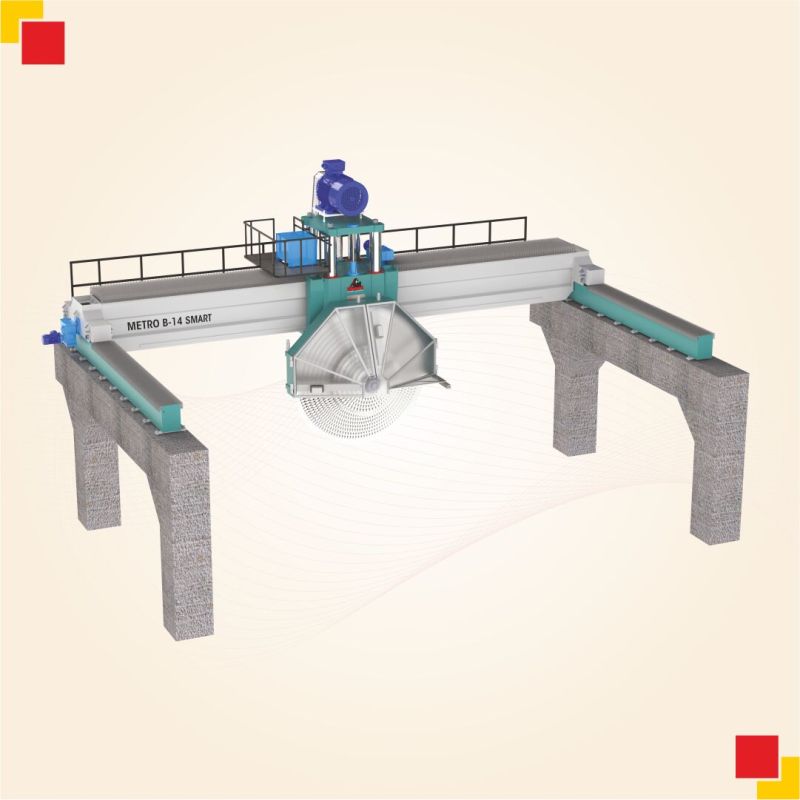

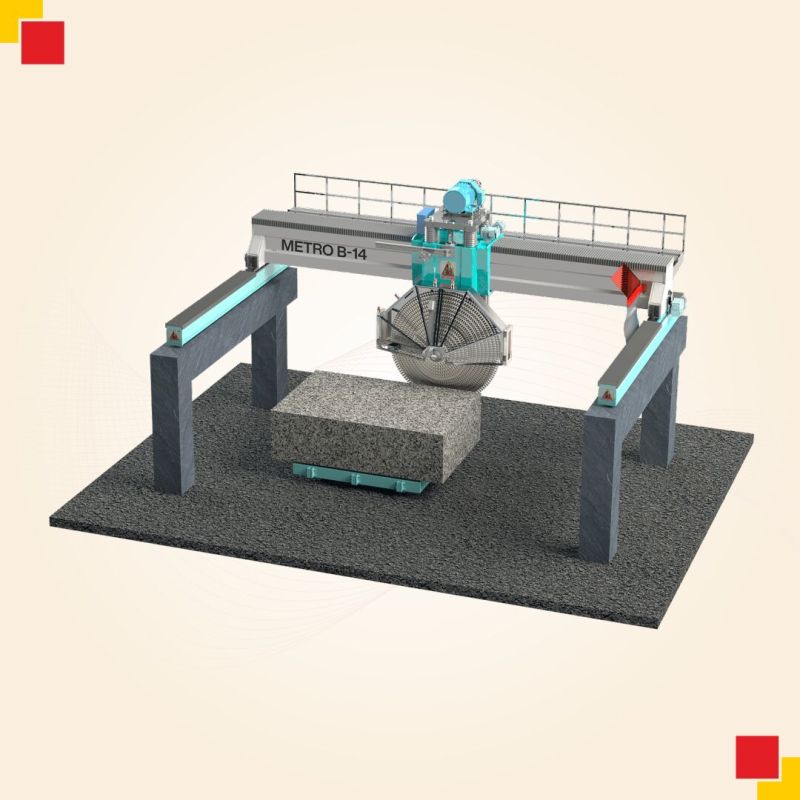

Shri Bhagwati Machine Pvt. Ltd. is the visionary behind the DRSH (DUAL RPM SINGLE HOUSING) technology. With a focus on innovation and excellence, we have redefined the cutting machine landscape. Metro B-14 is 6th generation masterpieces of Multi-Blade Granite Block Cutters are nothing short of technological marvels. Designed and crafted by Shri Bhagwati Machine Pvt. Ltd., they bring a new dimension to stone cutting.
Their magical capabilities enable them to deliver top-tier production levels while keeping power costs minimal and cycle times shorter than ever before. The secret behind these remarkable products lies in their revolutionary DRSH (DUAL RPM SINGLE HOUSING) technology.
DRSH, or Dual RPM Single Housing, is a groundbreaking concept that defies conventional wisdom. This technology allows the machine to achieve unprecedented levels of production and tool longevity while consuming significantly less power. These machines aren't just about cutting-edge technology; they're also incredibly user-friendly. The programmed interface is designed with the user in mind, ensuring ease of operation. The use of "RITTAL" enclosure and switch gears from SIEMENS/SCHNEIDER guarantees the latest safety features, making them robust enough to withstand electrical fluctuations.
Key Features :
Specifications
TECHNICAL SPECIFICATIONS | ||
---|---|---|
MODEL | B-14 | B-14 PRO |
Useful Cutting Block Size (LXWXH) | 3657 mm X 2438mm X 1066mm | 3657 mm X 2438mm X 1066mm |
Machine Suitable Up to Blade Dia. | 2.4/2.5 Meter | 2.4/2.5 Meter |
No. of Blade Mounting Provision | 14 Blades | 14 Blades |
For 2.4 Dia. Set | 14 Blades | 14 Blades |
For 2.5 Dia. Set | 13 Blades | 13 Blades |
Main Spindle Housing Type | DUAL RPM Technology | DUAL RPM Technology |
AXIS MOTION | ||
MODEL | B-14 | B-14 PRO |
X Axis | LM Slide with Rack & Pinion Arrangement | LM Slide with Rack & Pinion Arrangement |
Y Axis | LM Slide with Rack & Pinion Arrangement | LM Slide with Rack & Pinion Arrangement |
Z Axis | Hard Chrome DU Bush | Hard Chrome DU Bush |
SPEED & POWER | ||
MODEL | B-14 | B-14 PRO |
X Axis Speed | 7 oscillation/Min | 7 oscillation/Min |
X Axis | Induction Motor | Induction Motor |
Y Axis (1 No.s) | Siemens Servo Driven | Siemens Servo Driven |
Z Axis | Hydraulic System | Hydraulic System |
Main Spindle | 120 Hp. Sq. Cage Motor | 150 Hp. Sq. Cage Motor |
Control Panel | Automatic Standard Star Delta Type / Drive Optional (AC Drive) | Automatic Standard Star Delta Type / Drive Optional (AC Drive) |
Operator Interface | Siemens 7” HMI with PLC Machine Control | Siemens 7” HMI with PLC Machine Control |
FEATURES | ||
MODEL | B-14 | B-14 PRO |
Mud Protection Cover's | Cloth Fabric | Cloth Fabric |
X Axis | Cloth Fabric | Cloth Fabric |
Y Axis | Cloth Fabric | Cloth Fabric |
Z Axis | Parachute Fabric Bellow | Parachute Fabric Bellow |
CABLES | ||
MODEL | B-14 | B-14 PRO |
X Axis | IGUS German Make | IGUS German Make |
Y Axis | IGUS German Make | IGUS German Make |
Z Axis | IGUS German Make | IGUS German Make |
Block Feeding Trolley – 2 Nos. | 9X8 Feet Manual | 9X8 Feet Manual |
Slab Thickness Spacers | 1 Set (For Slab 16 mm to 20 mm) | 1 Set (For Slab 16 mm to 20 mm) |

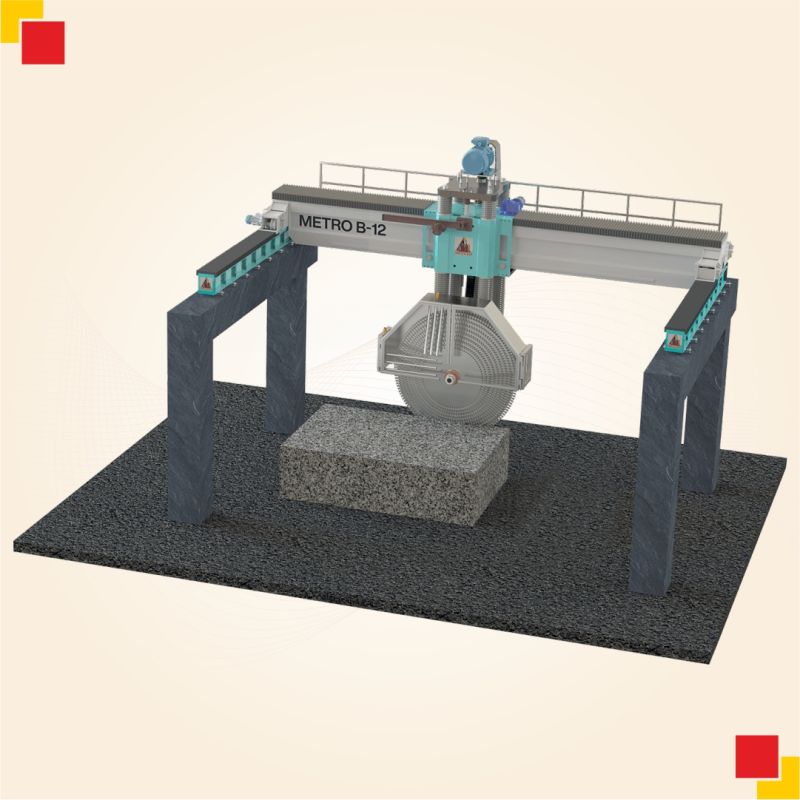

The Metro B-12 is a diamond in its format of multi blade granite block cutters. Distinguished by its unique features and unmatched performance with the capacity to accommodate and operate ten blades simultaneously, the Metro B-12 has earned its place as the ultimate choice in granite cutting machinery.
Having successfully undergone a plethora of rigorous tests, the Metro B-12 has consistently demonstrated its exceptional performance and durability. This track record positions it as the most reliable machine in its class.
Setting itself apart from conventional machines, the Metro B-12 employs an innovative up-down hydraulic motion system. This system provides superior control over the cutting process, resulting in more precise and efficient operations.
To guarantee smooth cutting motion and optimal performance, the Metro B-12 is equipped with high-quality LM bearings. These bearings minimize friction, reduce wear and tear, and maximize the lifespan of the machine. enhancements result in a remarkable increase in production efficiency while concurrently reducing power consumption.
Key Features :
Specifications
TECHNICAL SPECIFICATIONS | ||
---|---|---|
MODEL | B-12 (7 Mtr) | B-12 (8 Mtr) |
Useful Cutting Block Size (LXWXH) | 3354 mm X 2438mm X 1066mm | 3354 mm X 2438 mm X 1066mm |
Machine Suitable Up to Blade Dia. | 2.4/2.5 Meter | 2.4/2.5 Meter |
No. of Blade Mounting Provision | 10/11 Blades | 10/11 Blades |
Main Spindle Housing Type | Single RPM Technology | Single RPM Technology |
Beam Length | 7 Meter (Fabricated) | 8 Meter (Fabricated) |
End Carriages Length | 4.5 Meters | 4.5 Meters |
AXIS MOTION | ||
MODEL | B-12 (7 Mtr) | B-12 (8 Mtr) |
X Axis | LM Slide with Rack & Pinion Arrangement | LM Slide with Rack & Pinion Arrangement |
Y Axis | LM Slide with Rack & Pinion Arrangement | LM Slide with Rack & Pinion Arrangement |
Z Axis | Hard Chrome DU Bush | Hard Chrome DU Bush |
SPEED & POWER | ||
MODEL | B-12 (7 Mtr) | B-12 (8 Mtr) |
X Axis Speed | 4 oscillation/Min | 4 oscillation/Min |
X Axis | Induction Motor | Induction Motor |
Y Axis (1 No.s) | Induction Motor | Induction Motor |
Z Axis | Hydraulic System | Hydraulic System |
Main Spindle | 75 Hp. Sq. Cage Motor | 75 Hp. Sq. Cage Motor |
Control Panel | Automatic Standard Star Delta Type | Automatic Standard Star Delta Type |
Operator Interface | Siemens HMI with Autometic PLC Control | Siemens HMI with Autometic PLC Control |
FEATURES | ||
MODEL | B-12 (7 Mtr) | B-12 (8 Mtr) |
Mud Protection Cover's | Cloth Fabric | Cloth Fabric |
Z Axis | Parachute Fabric Bellow | Parachute Fabric Bellow |
CABLES | ||
MODEL | B-12 (7 Mtr) | B-12 (8 Mtr) |
X Axis | IGUS German Make | IGUS German Make |
Y Axis | IGUS German Make | IGUS German Make |
Z Axis | IGUS German Make | IGUS German Make |
Block Feeding Trolley – 2 Nos. | 9X7 Feet Manual | 9X7 Feet Manual |
Slab Thickness Spacers | 1 Set (For Slab 16 mm to 20 mm) | 1 Set (For Slab 16 mm to 20 mm) |

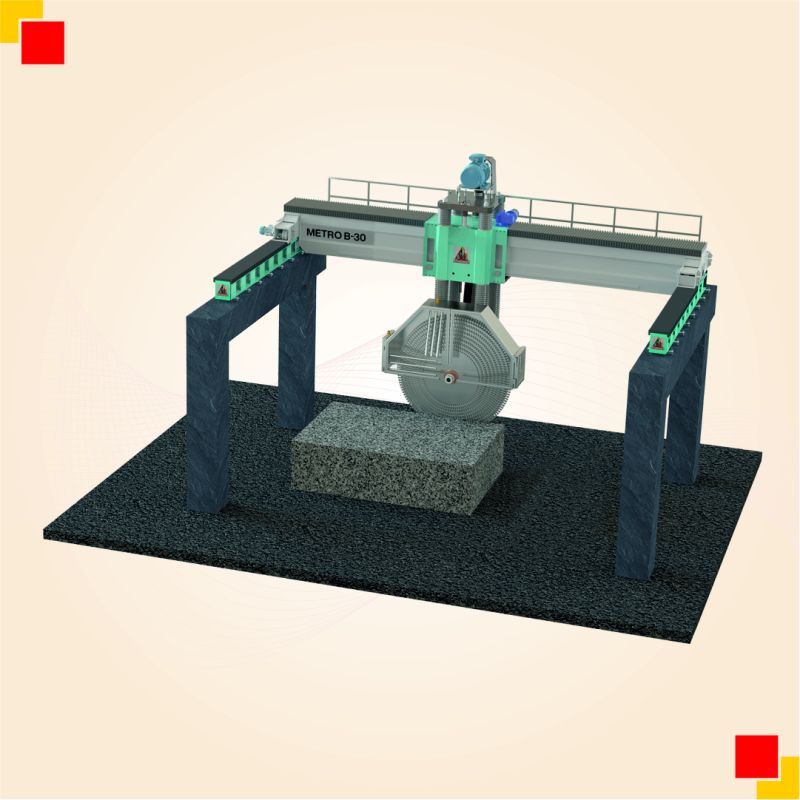

The Metro B-30 is 3.0-meter multi 5 blade granite block cutters. It is designed to operate with 5 blades at a time when using the 3.0-meter blade set. Additionally, it has a combo model that can accommodate and operate Both 5 Blade with 3.0-meter blade set & 10 blades with 2.4-meter blade set. Its ability to use different blade configurations (3.0-meter and 2.4-meter blade sets) suggests versatility in cutting options.
Setting itself apart from conventional machines, the Metro B-30 employs an innovative up-down hydraulic motion system. This system provides superior control over the cutting process, resulting in more precise and efficient operations. To guarantee smooth cutting motion and optimal performance, the Metro B-30 is equipped with high-quality LM bearings. These bearings minimize friction, reduce wear and tear, and maximize the lifespan of the machine.
Key Features :
Specifications
TECHNICAL SPECIFICATIONS | ||
---|---|---|
MODEL | B-30 | B-30 (COMBO) |
Useful Cutting Block Size (LXWXH) | 3657 mm X 2134mm X 1220 mm | 3657 mm X 2134mm X 1220 mm (with 3.0-meter Blade) 3657 mm X 2134mm X 1066mm (with 2.4-meter Blade) |
Machine Suitable Up to Blade Dia. | 3.0 Meter | 3.0/2.4 Meter |
No. of Blade Mounting Provision | 5 Blade | 5/10 Blade |
Main Spindle Housing Type | Single RPM Technology | Single RPM Technology |
Beam Length | 8 Meter (Fabricated) | 8 Meter (Fabricated) |
End Carriages Length | 4.5 Meters | 4.5 Meters |
AXIS MOTION | ||
MODEL | B-30 | B-30 (COMBO) |
X Axis | LM Slide with Rack & Pinion Arrangement | LM Slide with Rack & Pinion Arrangement |
Y Axis | LM Slide with Rack & Pinion Arrangement | LM Slide with Rack & Pinion Arrangement |
Z Axis | LM Slide with Rack & Pinion Arrangement | LM Slide with Rack & Pinion Arrangement |
SPEED & POWER | ||
MODEL | B-30 | B-30 (COMBO) |
X Axis Speed | 4 oscillation/Min. | 4 oscillation/Min. |
X Axis | Induction Motor | Induction Motor |
Y Axis (1 No.s) | Induction Motor | Induction Motor |
Z Axis | Hydraulic System | Hydraulic System |
Main Spindle | 75 Hp. (960 rpm) Sq. Cage Motor | 75 Hp. (960 rpm) Sq. Cage Motor |
Control Panel | Automatic Standard Star Delta Type | Automatic Standard Star Delta Type |
Operator Interface | Siemens HMI with Automatic PLC Control | Siemens HMI with Automatic PLC Control |
FEATURES | ||
MODEL | B-30 | B-30 (COMBO) |
Mud Protection Cover's | Cloth Fabric | Cloth Fabric |
Z Axis | Parachute Fabric Bellow | Parachute Fabric Bellow |
CABLES | ||
MODEL | B-30 | B-30 (COMBO) |
X Axis | IGUS German Make | IGUS German Make |
Y Axis | IGUS German Make | IGUS German Make |
Z Axis | IGUS German Make | IGUS German Make |
Block Feeding Trolley – 2 Nos. | 9X7 Feet Manual | 9X7 Feet Manual |
Slab Thickness Spacers | 1 Set (For Slab 16 mm to 20 mm) | 1 Set (For Slab 16 mm to 20 mm) |
