1 Products availableOur offered Product range includes PTFE Extruded Rods, PTFE Moulded Rods and Ptfe Machined Components.
We are offering ptfe extruded rods, standard sizes (mm): outer diameter (mm): available in 3.2 mm to 14.3 mm standard diameter (mm): available from 3 mm to 100 mm diameter. standard length (mm): 900 mm, 1000 mm , 2000 mm order: custom length and diameter available as per customer's requirement up to 200 mm diameter. ptfe extruded rods. Available in different size. As per requirement.
Standard Diameter (mm):
3 - 100
Made to Order:
Custom length and diameter available as per customer’s requirement up to 200mm
Standard Length (mm):
900, 1000, 2000
Additional Information:
Payment Terms : T/T
Packaging Details : Available in Corrugated Boxes.
Also if needed we can provide in Wooden Boxes with Extra charge as applicable.
Delivery Time : Depends On Order

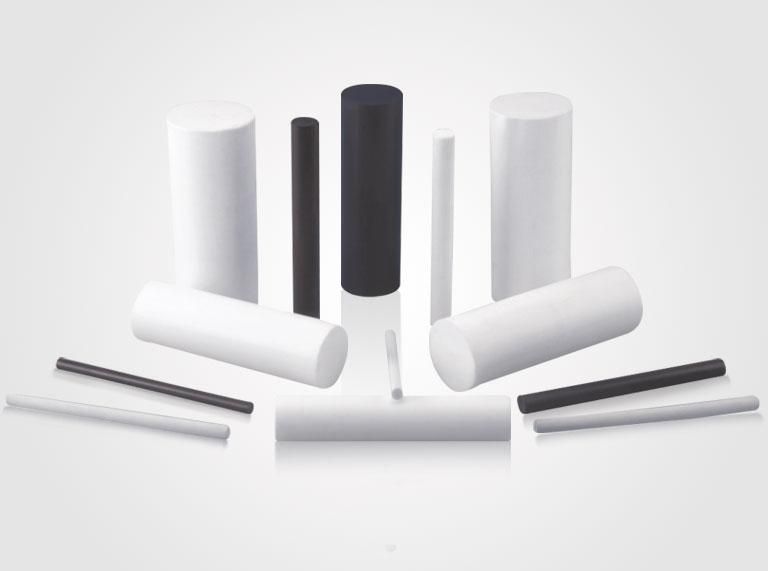

If you are in search of best quality Polytetrafluoroethylene(PTFE) Molded Rods, then we are the one-stop destination for you. Molded Rods are used in large number of industrial applications and are known for their durability and strength. We are tagged as one of the most illustrious PTFE Molded Rods Exporters from India.
16, 19, 20, 22, 25, 28, 30, 32, 35, 38, 40, 42, 45, 50, 55, 57, 60, 63, 65, 70, 75, 80, 82, 85, 90, 95, 100, 105, 108, 110, 115, 120, 125, 130, 135, 139, 150, 155, 160, 165, 170, 175, 180, 185, 190, 195, 200, 225, 250, 275, 300, 325, 350, 400
Made to Order :Custom length and diameter available as per customer’s requirement up to 1500mm diameter.
300
Also available in PTFE filled compounds with fillers like glass fiber, carbon, graphite, bronze, molybdenum disulfide etc.
PTFE Machined Components
PTFE machined components such as valves seat rings, roof packing, seal cover, plug valves sleeve, wedge rings, ‘O’ rings, piston rings, washers, bearings, balls, bushings, insulators, pipe joints, guides, breaks, piston rings, rider rings, hydraulic earth mover seals etc., and all types of components for non-lubricates compressors or any PTFE components as per customer’s sample, specification and drawing.
Specification
| Property | Unit | Test Method | Virgin PTFE | 25% Glass Filled PTFE | 15% Glass +5%MoS2 Filled PTFE | 25% Carbon Filled PTFE | 15% Graphite Filled PTFE | 40% Bronze Filled PTFE |
|---|---|---|---|---|---|---|---|---|
| PHYSICAL | ||||||||
| Density | gm/cm³ | ASTM D-792 | 2.1 - 2.2 | 2.24 - 2.25 | 2.23 - 2.24 | 2.12 - 2.14 | 2.14 - 2.16 | 3.1 - 3.2 |
| Water Absorption | 24 hrs (%) | ASTM D-570 | <0.01 | 0.013 | 0.015 | 0.05 | 0 | 0 |
| MECHANICAL | ||||||||
| Tensile Strength | kgf/cm² | ASTM D-638 | 210 - 350 | 125 - 200 | 150 - 220 | 120 - 155 | 150 - 200 | 125 - 150 |
| Elongation of Break | % | ASTM D-638 | 250 - 400 | 200 - 300 | 220 - 320 | 100 - 150 | 175 - 225 | 100 - 175 |
| Compressive Strength | kgf/cm² | ASTM D-695 | 40 - 50 | 75 - 85 | 65 - 75 | 75 - 85 | 65 - 75 | 85 - 100 |
| Compressive Modulus | kgf/cm² | ASTM D-695 | 4000 | 7000 | 6000 | 8400 | 8000 | 8500 |
| Deformation under load | ||||||||
| A. 24 Hrs. 23°C 113 kg/cm² | % | ASTM D-621 | 15 | 11 | 12 | 7 | 8 | 6 |
| B. 2 Hrs. 150°C 113 kg/cm² | 55 | 50 | 50 | 35 | 43 | 42 | ||
| Flexural Strength | kgf/cm² | ASTM D-790 | 57 | 42 | 50 | 96 | 60 | 85 |
| Flexural Modulus | kgf/cm² | ASTM D-790 | 3500-6300 | 16700 | 20000 | 11900 | 11000 | 14000 |
| Impact Strength (+20°C) | cmkgf/cm² | ASTM D-256 | 15 | 11 | 12 | 10 | 14 | 9 |
| Hardness | Shore-D | ASTM D-2240 | 52 - 58 | 58 - 63 | 60 - 65 | 60 - 65 | 60 - 65 | 63 - 68 |
| Co-efficient of Friction | ||||||||
| A. Dynamic P-7 kg/cm² V-0.5 m/s | - - - | - - - | 0.04 - 0.06 | 0.5 - 0.54 | 0.15 - 0.20 | 0.12 - 0.17 | 0.11 - 0.16 | 0.11 - 0.15 |
| B. Static P-35 kg/cm² | 0.05 - 0.08 | 0.11 - 0.13 | 0.08 - 0.01 | 0.09 - 0.11 | 0.08 - 0.10 | 0.08 - 0.10 | ||
| Brittleness Temp. at Atm. Pressure | °C | - - - | -200 | |||||
| THERMAL | ||||||||
| Melting Temperature | °C | ASTM D-3418 | 335 | |||||
| Use Temp. at Atm. Pressure | °C | - - - | -250 to +260 | |||||
| Thermal Conductivity | 10-4cal/cm S°c | Cenco Fitch | 6 | 9 | 9 | 13 | 14 | 17 |
| ELECTRICAL | ||||||||
| Dielectric Strength | Kv/mm | ASTM D-149 | 24 | 12 | 16 | 2 | 2 | Conductive |
