1 Products availableOur Complete range of products are Mica Glass Sheet, Fabricated Mica Sheet, Heat Resistance Mica Sheet, Polyester Mica Sheet and Mica Tube.
glass mica glass sheet shows excellent thermal resistance, electrical properties and flexibility at ambient temperature. We provide the glass mica glass sheet of standard quality. The glass mica glass sheet is made by uncalcined muscovite mica paper bonded with an class insulation varnish reinforce both side with 1.7 mils (0.04318 mm) thick glass fabric, the varnish shall be cured to the tack free. size of sheets :normal standard sizes are :
we are reckoned for the manufacturing of fabrication, which we are offering in a wide range. the fabricated mica made from natural mica blocks, mica thin, and condenser mica. As well as mica paper board and fiberglass sheet. We also provide customized products as per the specifications and drawing provided by the clients. traits
gaskets made by mica board and fiberglass sheet all gradefarication as per drawing made by natural mica, mica board, and fiberglass sheet.
Heat Resistance Mica Sheet is used for the assorted industrial purposes. Splitting impregnated with high grade synthetic resin binder bond content kept low. The Heat Resistance Mica Sheet is hard and rigid can be worked maximum temperature. It can also be punched, stamped to any desire size and thickness.
Applications

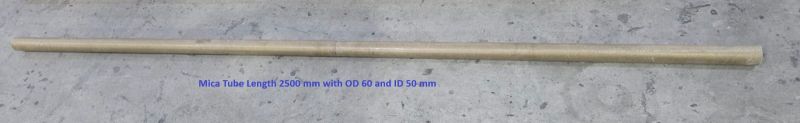

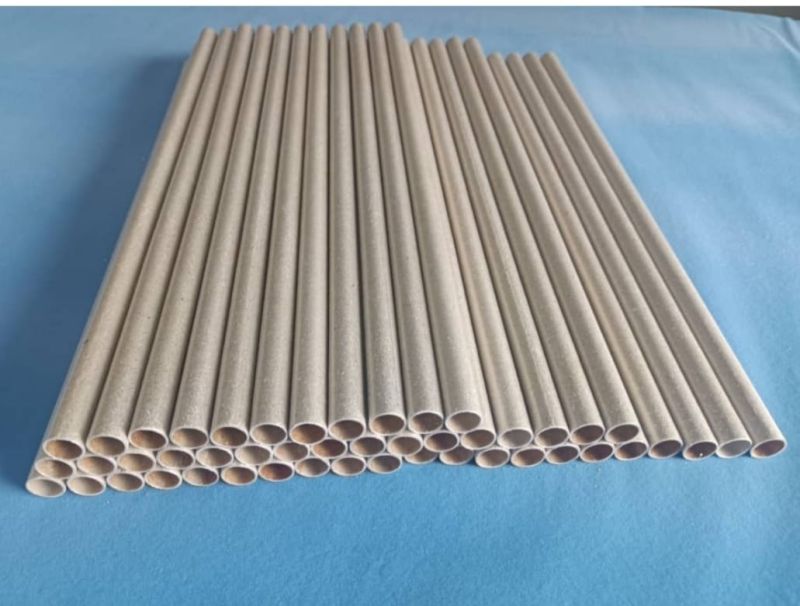

mica tube contains best quality muscovite or phlogopite mica paper impregnated with high temperature silicon resin as well as made by natural mica splitting bonded by shellac resin under specific pressure and heat, use in electrical arc furnace, electric motors, electric appliance, resistors, dbr etc.
availability
length: 10-1000 mm
id: min 6mm
od: max 200mm
thickness: 0.5mm- 20mm
Specifications
| CHARACTERISTICS | UNIT | SAKTI- STM | SAKTI - STP |
|---|---|---|---|
| MICA TYPE | MUSCOVITE | PHLOGOPHITE | |
| COLOUR | CREAM | BROWN | |
| MICA CONTENT | % Min | 90 | 90 |
| RESIN CONTENT | % Max | 10 | 10 |
| DENSITY | Gm/cm³ | 1.8-1.9 | 1.8-1.9 |
| DIELECTRIC STRENGTH @23°C | KV/mm | >20 | >20 |
| TENSILE STRENGTH | N/15mm | >̲ 140 | >̲100 |
| HEAT RESISTING | °C | >600 | >800 |
| EDGE STRENGTH | Kg/0.1 mm | 1.3 | 0.9 |
| FLEXURAL STRENGTH | N/mm² | 200 | 150 |
| INSULATION RSISTANCE 500°C | Ω/cm | >1012 | >1012 |
| WATER ABSORPTION | % | < 1 | < 1 |
Data are average results of laboratory tests conducted under standard procedures and are subject to variation, These do not constitute A warranty or representation for which assume legal responsibility.
Mica Discs are made from Ruby mica and it is good transparent without scratches, waviness and bubbles. We have been manufacturing large quantities mica disc for use different types Boiler Watch Window, in various sizes and thickness as per buyer's specification.
Additional Information:
Payment Terms : T/T
Characteristics
| Item | Unit | Muscovite Mica Splittings |
|---|---|---|
| Mica Content | % | 80-85 |
| Binder Content | % | 10-12 |
| Size (Width) | mm | 100 - 500 |
| Size (Length) | mm | Up to 2000 |
| Thickness | mm | 0.15 - 25.00 |
| Thickness Tolerance | mm | ±0.1 |
| Dielectric Strength | Kv/mm | 17 - 18 |
| Thermal Class : (Continuous service) | 0C | 130 |
| Thermal Class : (Intermittent service) | 0C | 200 |
