Specialized Tents Curing System Specialized Tents for Concrete Precast Products. Environment friendly, Non Pollution Curing System. Suitable for the Curing of :- 1. Fly Ash Bricks 2. Concrete Hollow and Solid Blocks, 3. Concrete Interlocking Pavers, 4. Concrete Interlocking Blocks, 5. Concrete Precast Products etc.

We are offering fly ash brick plant special features :reva has produced the most versatile plants for the manufacture of fly-ash bricks/ pavers/ tiles/ blocks made out of fly ash as the main constituent in combination with sand, lime and gypsum. Bricks can also be produced out of fly-ash and cement mix or sand lime or sand cement i.e. The same machinery can be employed for making concrete bricks/soil bricks. the process consists of mixing and grinding the materials in the pan mixer. With the addition of batching equipment, the material can be mixed with, in the required proportions by weight, to have uniform quality most economically. The mixed and ground materials are conveyed on the belt conveyor to the reva brick making machine from where the hydraulically compressed bricks are continuously produced and taken to the curing site on pallets by the pallet trucks/conveyors, where, bricks are cured by water spray or steam cured for early strength. the main machines of the system are pan mixer, belt conveyor, brick machine, and pallet trucks along with the wooden pallets. pan mixer (model 500 kg)

• reva pan mixer is specially designed for thorough mixing of the fly ash ingredients with the grinding of the lime, gypsum and other coarse and granular materials in the powder form.
• power is transmitted from the electric motor to the pan mixer through the heavy duty worm reduction gear box provided below the pan mixer.
• hard wearing liner plates are bolted and can be changed when required.
• easy bottom unloading mechanism.
• heavy cast iron rollers revolving on bearings with metal seals are provided to grind the material to the desired shape and size.
• changeable mixing and discharge blades are of special alloy steel with hard faced tips.
• the pan mixer has a capacity of 500 kgs. Per batch and powered by 15 h.p., 3 electric motor.

belt conveyor :

• reva belt conveyor is made of sturdy steel frame.
• power is transmitted from the 3 h.p electric motor to the reduction box and to the conveyor roller.
• the fly ash mix can be regulated according to the speed of the brick making machine.
• conveyor belt is made of nylon belting with rubber top.
• frictionless idlers are provided with seals on both sides to prevent any ingress of fly-ash and dust, etc. Going in side the bearings to the idlers.

hopper :

• a collecting hopper is provided below the discharge gate of the pan mixer in order to collect and stock the mixed material from the pan mixer and discharge the required quantity on to the belt conveyor. It is bolted on the belt conveyor's frame.

reva brick machine :

• reba brick machine is hydraulically operated, automatic, plc controlled, self diagnosing type, having digital display.
• computer connection can be fitted if required.
• the machine develops approx. 35 tones of hydraulic force on the bricks for the required time to make the bricks uniform.
• the compressive force is adjustable as per requirements
• the machine is robustly constructed, steel structured, heavy duty, designed for taking up all types of heavy loads, due to variations in raw materials.
• various types and sizes of moulds can be fitted with a maximum size 250 by 250 by 100 mm.
• different types of monograms, frogs can be made on the bricks.
• the machine gives a very high production. The output is adjustable maybe from 10, 000-12000 bricks per j hr. Shift or more, at a very economical cost.
• for continuous running of the machine, the hydraulic oil cooling arrangement is provided on the machine.
• the machine is powered by 15 h.p., three phase electric motor and is fitted with hydraulic pump, hydraulic motor, hydraulic cylinders direction control valves, etc.
• the table rotation is hydraulic, 3 stationed plc controlled with manual and auto operations.

pallet trucks :specially designed to handle the bricks with pallets for effortless and easy transportation of flyash bricks with reduced labour

• provided with 3 nos. Pneumatic tyre wheels.
• hydraulic hand operated arrangement for lifting or lowering the pallets.

auto batching system :

• radial scraper or storage hopper weigh bin with pneumatic operated gates for fly-ash and sand loading, hydraulic / electrical rotation.
• water batching system with feeding pump with digital display.

.

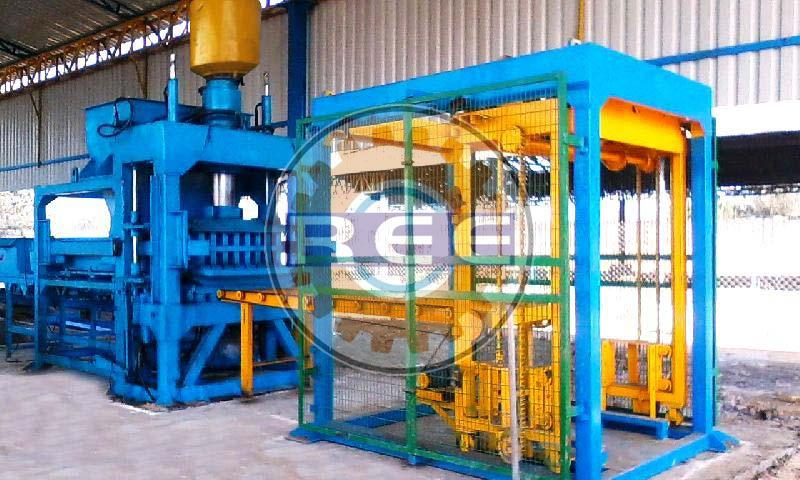

We manufacture, export, import, and supply Automatic brick making machine. The automatic brick making machine has a forced mold synchronous structure, which gives the products perfect shape and high strength. Moreover, the stable demolding process ensures optimum output of finished products. The brick making machine is solid and durable for its four guiding columns and patent lengthening sleeve guide. AUTOMATIC HYDRAULIC BRICK MACHINE Heavy structure body with four nos. of shaft to guide the Ram Punch of Mould, Electric Panel (With Mitsubishi PLC, ) Limit Switch/Proximity Sensors, Hopper, Cylinder Made by Honed Tube. Piston Is Hard Chrome. Production Capacity 10, 000 to 45, 000 Bricks/Shift. Heavy Duty Mould Vibrator. Automatic material feeder and Pallet Feeder, Hydraulic operated, controlled by PLC.Pan Type Mixer with Geared Motor.Belt Conveyor of 31 Feet.Automatic Stacker to Lift Wooden Pallets with Bricks.Automatic Batching System to feed the material in Mixer.

Being an eminent Manufacturer, Supplier and Exporter of Automatic Weigh Batcher, gaining customer satisfaction is our target. Our wide variety is manufactured using unparalleled raw material. We meet the highest norms and grades of quality set by the industry. It is processed keeping different considerations in mind. Its optimum quality, robust construction and longer functional life are available for cost-effective prices.



Details : Weigh Batcher of 3 Bins for Raw Material. Weighing of the Raw Material on the Belt Conveyor with help of the Load Cells and Automatic Batch control.

Features :

• System and Computer Printing Facility and one week data storage
• Automatic Discharge of the Raw Material
• Weighing conveyor controlled by 7.5 H.P
• Geared Motor and ½ H.P
• Chute vibrator on the Bins of Aggregate

Being an outstanding name among the top players in the industry, we present a wide range of Wet Mix Macadam Plant to our customers. The quality on offer is unparalleled. We take a meticulous approach towards quality by testing it against the highest parameters of quality set by the industry. We provide it in attractive and protective packaging at reasonable rates. We also deliver at your doorstep at your convenience thanks to our matchless distribution system.



Details : Wet Mix Macadam Plant offered with quality such as Strength, Capacity and Functionality and excellent professionals.

We present Concrete Batching Plant. The raw materials are purchased from the vendors who are keen to deliver unconditional quality on a steady basis. It is renowned for its high strength, rugged construction and hassle free performance. Get the perfect quality on offer delivered at your doorstep. For our admired customers, the plant on offer is reasonably priced. We make home delivery at your doorstep as well.



Details :

• Item Code - RRMC Series
• Compact concrete batching plant (RRMC SERIES)
• Pay Mode Terms - L/C (Letter of Credit)/TT
• Delivery Time -2 Months

Optional Accessories

• Material feeding conveyor/rotary chute conveyor
• Computer SCADA system and software
• Cement storage silos
• Fly ash feeding system and storage silos
• Moisture controlling system
• Water chilling plant

We are offering mini mobile batching plant. The mini mobile batching plant manufactured by us has a water dosing system for pre-determined quantity of water into the drum. In addition, the mini mobile batching plant is equipped with a control panel for easy operation of the batching plant by a single operator. Besides, the batching plant has a sturdy construction and high durability. special features :

• reversible drum mixer
• sturdy loader lifting hydraulically
• reversing control of drum for material discharge
• electronic load cells weigh batching with digital display
• digital display and electric water pump
• available in 5 cu.m. To 10 cu. M./hour capacity

optional :

• printing facility
• admixture dosing system
• 2 bin / 3 bin weighing systems also available
• hydraulic mixer with diesel engine

.
