we are a well-reckoned bricks making plant (rbm-25) manufacturer, exporter, and supplier, based in india. Our bricks making plant is a fly ash bricks making vib- hydraulic press machine, which is fully automatic in nature. detailselectric motor 15hp 3ph crompton / havells/hindustan, complete with power pack (pump of douty/boss &valve of yuken/ poly hydran. Electric panel (with messung systems plc, ) limit switch/proximity sensors, hopper, front trolley, back trolley oil tank capacity 300 lit. Cylinder made by honed tube. Piston is hard chrome. Production capacity 24000 to 25000 bricks/day or 8000 blocks /day. 04 h.p. 3ph vibrator. pan mixture1 no. reva pan mixer having capacity of 600 kgs. Fitted with 2 nos. Heavy c. I. Rollers, fitted with changeable bottom wear plates fitted with mixing and discharge blades, having special alloy steel tips, complete with quality worm reduction gear box elecon/radicon make powered by 20 h.p./electric motor of kirloskar/crompton/havells make with star-delta starter. conveyor1 no. reva belt conveyor for loading and unloading the material of the pan mixer of app. 25 ft. And powered by 3 h.p. Electric motor of kirlostar/crompton make fitted with quality gear box with starter. The conveyor is fitted with rubber top nylon conveyor belt and is moving on frictionless idlers. mould

• (18 cavity) 18 bricks/stroke of standard size

details

• pallet trucks
• finished bricks conveying conveyor 12 feet approx
• automatic pallet feeder, hydraulic operated, controlled by plc
• automatic material feeder in the moulds, hydraulic operated, controlled by plc

We, being an important name in the market, engage ourselves in presenting Fly Ash Brick Making Machine (RBM-18). We meet the modified requirements of the customers being a dedicated provider of machines. The longer functional life, user friendly design and rugged construction of the product make it an instant hit among our customers. Rest assured of its excellence as we provide export grade quality which can be laid hands by you for reasonable rates.



Details :

• Heavy structure body with four nos. of shaft to guide the Ram Punch of Mould, Electric Panel (With Mitsubishi PLC, ) Limit Switch/Proximity Sensors, Hopper,   Cylinder Made by Honed Tube. Piston Is Hard Chrome. Production Capacity  17, 000 to 19, 000 Bricks/Shift. 7.5 H.P. Mould Vibrator.
• Automatic material feeder and Pallet Feeder, Hydraulic operated, controlled by PLC.



Features :

• Hollow Block 8”x8”x16” 04Pcs/Stroke=3500 to 4000 Blocks/Shift
• Solid Block 8”x8”x16” 04Pcs/Stroke=4500 to 5000 Blocks/Shift
• Total Power - 43.5 H.P. OR 32.62 KW
• Hydraulic System - Hydraulic Power pack of  300 Ltr. Capacity,   with Flange type motor, Douty Gear Pump, Yuken Valves, Oil filters at Incoming , outgoing and return line. Electric Motor 15HP 3PH of Crompton / Havells, Complete With Power Pack , Water cooler arrangement.
• Brick Mould - (18Cavity). 18 Bricks/Stroke  with Frog (Name in Brick).
• Pan Mixer - 1 No. “Reva” Pan Mixer having capacity of 1000 Kgs. fitted with 2 Nos. heavy C.I.Rollers, fitted with changeable bottom wear plates fitted with mixing and discharge  blades, having special alloy steel tips, complete with quality Worm Reduction Gear Box of Elecon/Roto-Reva powered by 30 H.P./Electric Motor of Kirloskar/Crompton/Havells make With starter.
• Pallet Trucks - 3 Nos. “Reva” Pallet Trucks are fitted with Pneumatic Tyres, and manual dragging arrangement with lift capacity of 1000 Kgs.
• Pallet Conveyor - Finished Bricks Conveying  Conveyor  12 Feet Approx, Powered by 1/2 H.P. Geared Motor.

Doing justice to the stellar reputation of ours, we offer our admired customers an assorted range of Fly Ash Brick Making Machine (RBM-40). We are committed towards meeting our customers’ exact requirements. We procure raw materials from the vendors who can deliver absolute quality on a consistent basis. The efficient working and user friendly design of this product on offer puts it in the instant hit bracket among the customers.



Details :

• Heavy structure body with four nos. of shaft to guide the Ram Punch of Mould, Electric Panel (With Mitsubishi PLC, ) Limit Switch/Proximity Sensors, Hopper,   Cylinder Made by Honed Tube. Piston Is Hard Chrome.
• Production Capacity  40, 000 to 45, 000 Bricks/Shift. 7.5x2 H.P. Mould Vibrator, [Automatic material feeder and Pallet Feeder, Hydraulic operated, controlled by PLC
• Hydraulic Power pack of  400 Ltr. Capacity,   with Flange type motor, Douty Gear Pump, Yuken Valves, Oil filters at Incoming , outgoing and return line. Electric Motor 20HP 3PH of Crompton / Havells, Complete With Power Pack , Water cooler arrangement.
• Pan Mixer - 2 No. “Reva” Pan Mixer having capacity of 750 Kgs. fitted with 2 Nos. heavy C.I.Rollers, fitted with changeable bottom wear plates fitted with mixing and discharge  blades, having special alloy steel tips, complete with quality Worm Reduction Gear Box Elecon/Radicon make powered by 25 H.P./Electric Motor of Kirloskar/Crompton/Havells make With Star-Delta starter.
• Belt Conveyor - 1 No. “Reva” Belt Conveyor for loading and unloading the material of the Pan Mixer of app. 30 ft.and powered by 3 H.P.Electric Motor of Havells / ABB/ Siemens/Bharat Bijlee  make fitted with quality gear box with starter. The conveyor is fitted with rubber top nylon conveyor belt and is moving on frictionless idlers
• Mould - (32 Cavity). 32 Bricks/Stroke  with Frog (Name in Brick).
• Pallet Trucks
  • 4 Nos. “Reva” Pallet Trucks are fitted with hydraulic lifting, hand pumping and manual dragging arrangement with lift capacity of 1000 Kgs.
  • Automatic Material Feeder, Hydraulic Operated
  • Automatic Pallet Feeder, Hydraulic Operated
  • Finished Fly-Ash Bricks Pallet Conveyor , powered by 01 H.P. Geared Motor.
• Auto Batching System of  2+1 Bins for Raw  Material. Weighing of the Raw Material on the Belt Conveyor with help of the Load Cells and Automatic Batch controlSystem and Computer Printing Facility and one week data storage.
• Automatic Discharge of the Raw Material. Weighing conveyor controlled by 7.5 H.P. Geared Motor and ½ H.P. Chute vibrator on the Bins of Aggregate.
• Automatic Stacker - Automatic Stacker for Lifting the Pallets with Bricks. Powered by 01+03 H.P. Electric Motor, Controlled by Variable Frequency Drive.

We are counted amongst the prominent Bricks Making Plant (RT4-15) Manufacturers, Exporters, and Suppliers, based in India. The Bricks Making Plant), provided by us, is known for its excellent efficiency and easy operations. Made from the high-grade components, our Bricks Making Plant has longer working life.

We, being a prime name in the industry, offer Fly Ash Brick Making Machine (RBM-15). The quality is ensured to be in conformity to the quality norms set by the industry. We make it available in many sizes, designs and shapes. Its long service life, optimum performance and smooth functionality make it an admired choice among our customers.



Details :

• Heavy structure body with four nos. of shaft to guide the Ram Punch of Mould, Electric Panel (With Mitsubishi PLC, ) Limit Switch/Proximity Sensors, Hopper,   Cylinder Made by Honed Tube. Piston Is Hard Chrome. Production Capacity  17, 000 to 19, 000 Bricks/Shift. 7.5 H.P. Mould Vibrator.
• Automatic material feeder and Pallet Feeder, Hydraulic operated, controlled by PLC.



Features :

• Hollow Block 8”x8”x16” 04Pcs/Stroke=3500 to 4000 Blocks/Shift
• Solid Block 8”x8”x16” 04Pcs/Stroke=4500 to 5000 Blocks/Shift
• Total Power - 43.5 H.P. OR 32.62 KW
• Hydraulic System - Hydraulic Power pack of  300 Ltr. Capacity,   with Flange type motor, Douty Gear Pump, Yuken Valves, Oil filters at Incoming , outgoing and return line. Electric Motor 15HP 3PH of Crompton / Havells, Complete With Power Pack , Water cooler arrangement.
• Brick Mould - (15Cavity). 15 Bricks/Stroke  with Frog (Name in Brick).
• Pan Mixer - 1 No. “Reva” Pan Mixer having capacity of 800 Kgs. fitted with 2 Nos. heavy C.I.Rollers, fitted with changeable bottom wear plates fitted with mixing and discharge  blades, having special alloy steel tips, complete with quality Worm Reduction Gear Box of Elecon/Roto-Reva powered by 25 H.P./Electric Motor of Kirloskar/Crompton/Havells make With starter.
• Pallet Trucks - 3 Nos. “Reva” Pallet Trucks are fitted with Pneumatic Tyres, and manual dragging arrangement with lift capacity of 1000 Kgs.
• Pallet Conveyor - Finished Bricks Conveying  Conveyor  12 Feet Approx, Powered by 1/2 H.P. Geared Motor.

We are involved in presenting Fly Ash Brick Making Machine (RBM-35) to our customers. The product on offer is corrosion resistant and efficient. Our team of skilled engineers keeps manufacturing under stern guidance to make sure our quality complies with different norms set by industry. Hence, we assure our customers about the quality. This quality is offered at market leading rates.



Details :

• Heavy structure body with four nos. of shaft to guide the Ram Punch of Mould, Electric Panel (With Mitsubishi PLC, ) Limit Switch/Proximity Sensors, Hopper,   Cylinder Made by Honed Tube. Piston Is Hard Chrome.
• Production Capacity  32, 000 to 34, 000 Bricks/Shift. 10 H.P. Mould Vibrator, [Automatic material feeder and Pallet Feeder, Hydraulic operated, controlled by PLC



Features :

• Hollow Block 8”x8”x16” 06Pcs/Stroke=4500 To 5500 Blocks/Shift
• Solid Block 8”x8”x16” 06Pcs/Stroke=6000 to 7000 Blocks/Shift
• Total Power - 64 H.P. OR 48 KW
• Hydraulic System - Hydraulic Power pack of  300 Ltr. Capacity,   with Flange type motor, Douty Gear Pump, Yuken Valves, Oil filters at Incoming , outgoing and return line. Electric Motor 20HP 3PH of Crompton / Havells, Complete With Power Pack , Water cooler arrangement.
• Brick Mould - (27Cavity). 27 Bricks/Stroke  with Frog (Name in Brick).
• Pan Mixer - 2 No. “Reva” Pan Mixer having capacity of 700 Kgs. fitted with 2 Nos. heavy C.I.Rollers, fitted with changeable bottom wear plates fitted with mixing and discharge  blades, having special alloy steel tips, complete with quality Worm Reduction Gear Box of Elecon/Roto-Reva powered by 20 H.P./Electric Motor of Kirloskar/Crompton/Havells make With starter.
• Pallet Trucks - 2 Nos. “Reva” Pallet Trucks are fitted with Pneumatic Tyres, and manual dragging arrangement with lift capacity of 1000 Kgs.
• Pallet Conveyor - Finished Bricks Conveying  Conveyor  12 Feet Approx, Powered by 1/2 H.P. Geared Motor.

Amusing our customers with our terrific performance, we have held our status as a top name in the industry. We feel elated to present Fly Ash Brick Making Machine (RBM-30) to our customers. We undergo a methodical process of vendor selection to obtain raw materials only from the vendors who are capable to consistently deliver top notch quality. It is available for marginal rates.



Details :

• Heavy structure body with four nos. of shaft to guide the Ram Punch of Mould, Electric Panel (With Mitsubishi PLC, ) Limit Switch/Proximity Sensors, Hopper,   Cylinder Made by Honed Tube. Piston Is Hard Chrome.
• Production Capacity  28, 000 to 32, 000 Bricks/Shift. 10 H.P. Mould Vibrator, [Automatic material feeder and Pallet Feeder, Hydraulic operated, controlled by PLC



Features :

• Hollow Block 8”x8”x16” 06Pcs/Stroke=4500 To 5500 Blocks/Shift
• Solid Block 8”x8”x16” 06Pcs/Stroke=6000 to 7000 Blocks/Shift
• Total Power - 64 H.P. OR 48 KW
• Hydraulic System - Hydraulic Power pack of  300 Ltr. Capacity,   with Flange type motor, Douty Gear Pump, Yuken Valves, Oil filters at Incoming , outgoing and return line. Electric Motor 20HP 3PH of Crompton / Havells, Complete With Power Pack , Water cooler arrangement.
• Brick Mould - (24Cavity). 24 Bricks/Stroke  with Frog (Name in Brick).
• Pan Mixer - 2 No. “Reva” Pan Mixer having capacity of 650 Kgs. fitted with 2 Nos. heavy C.I.Rollers, fitted with changeable bottom wear plates fitted with mixing and discharge  blades, having special alloy steel tips, complete with quality Worm Reduction Gear Box of Elecon/Roto-Reva powered by 20 H.P./Electric Motor of Kirloskar/Crompton/Havells make With starter.
• Pallet Trucks - 2 Nos. “Reva” Pallet Trucks are fitted with Pneumatic Tyres, and manual dragging arrangement with lift capacity of 1000 Kgs.
• Pallet Conveyor - Finished Bricks Conveying  Conveyor  12 Feet Approx, Powered by 1/2 H.P. Geared Motor.

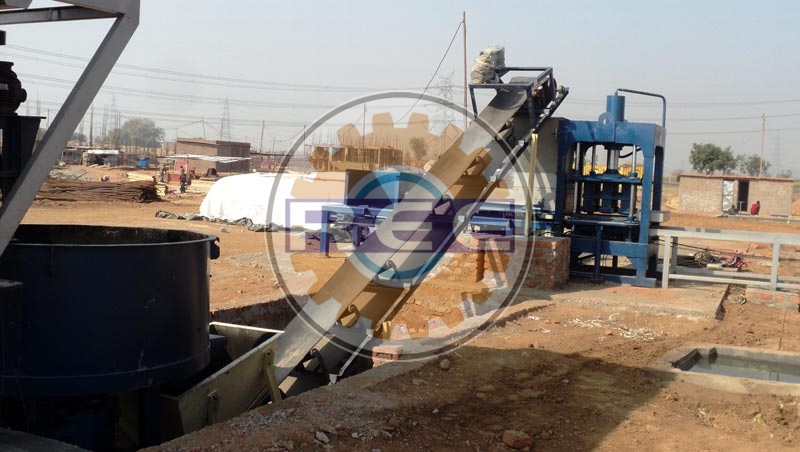

The company is a chief Bricks Making Plant (RBM-10) Manufacturer, Exporter, and Supplier in India. The Bricks Making Plant is a Fly Ash Brick Making Vibro-Hydraulic Press, which is a fully automatic machine. The Bricks Making Plant is acclaimed by the worldwide clients for its superb efficiency and long working life. Details

• Electric Motor 7.5HP 3PH Crompton / Havells / Kirloskar with Power Pack (Pump of Poly Hydran/Boss & Valve of Yuken/ Poly Hydran
• Electric panel (With Messung Systems PLC, ) limit switch/proximity sensors, hopper, oil tank capacity 300 liter
• Cylinder made by honed tube. piston is hard chrome. production capacity 12, 000 bricks/shift
• Automatic material feeder in the moulds, hydraulic operated, controlled by PLC
• Automatic pallet feeder, hydraulic operated, controlled by PLC
• Finished bricks conveying conveyor

Pan Mixture1 No. Reva Pan Mixer having capacity of 300 kgs. fitted with 2 Nos. heavy C. I. Rollers, fitted with changeable bottom wear plates fitted with mixing and discharge blades, having special alloy steel tips, complete with quality Worm Reduction Gear Box of Roto-Reva powered by 7.5 H.P./Electric Motor of Kirloskar/Crompton/Havells make With starter. Conveyor1 No. Reva Belt Conveyor for loading and unloading the material of the Pan Mixer, and powered by 2 H. P. Electric Motor of Havells/Crompton make fitted with quality gear box with starter. The conveyor is fitted with rubber top nylon conveyor belt and is moving on frictionless idlers. Mould

• (06 Cavity) six bricks per stroke with frog

Pallet Trucks2 Nos. Reva pallet trucks are fitted with pneumatic tyres, and manual dragging arrangement with lift capacity of 1000 kgs.

Setting ourselves as one of the top names in the industry, we intend to enthrall our customers with incredible performance. As a Manufacturer, Supplier and Exporter, we proudly present Fly Ash Brick Making Machine (RBM-11) to our customers. We undergo a systematic process of manufacturing to make sure we do not fall short of delivering excellent quality constantly. Our product is known for its suitable application for several industrial purposes.



Details :

• Heavy structure body with four nos. of shaft to guide the Ram Punch of Mould, Electric Panel (With Mitsubishi PLC) Limit Switch/Proximity Sensors, Hopper,   Cylinder Made by Honed Tube. Piston Is Hard Chrome.
• Production Capacity  11, 000 to 12, 000 Bricks/Shift. 5 H.P. Mould Vibrator.Automatic material feeder and Pallet Feeder, Hydraulic operated, controlled by PLC.



Features :

• Hollow Block 8”x8”x16” 02Pcs/Stroke=1800 to 2000 Blocks/Shift.
• Solid Block 8”x8”x16” 02Pcs/Stroke=2300 to 3000 Blocks/Shift.
• Total Power - 30.5 H.P. OR 22.87 KW
• Hydraulic System - Hydraulic Power pack of  300 Ltr. Capacity,   with Flange type motor, Douty Gear Pump, Yuken Valves, Oil filters at Incoming , outgoing and return line. Electric Motor 10HP 3PH of Crompton / Havells, Complete With Power Pack , Water cooler arrangement.
• Brick Mould - (08Cavity). 08 Bricks/Stroke  with Frog (Name in Brick).
• Pan Mixer - 1 No. “Reva” Pan Mixer having capacity of 500 Kgs. fitted with 2 Nos. heavy C.I.Rollers, fitted with changeable bottom wear plates fitted with mixing and discharge  blades, having special alloy steel tips, complete with quality Worm Reduction Gear Box of Elecon/Roto-Reva powered by 15 H.P./Electric Motor of Kirloskar/Crompton/Havells make With starter.
• Pallet Trucks - 2 Nos. “Reva” Pallet Trucks are fitted with Pneumatic Tyres, and manual dragging arrangement with lift capacity of 1000 Kgs.
• Pallet Conveyor - Finished Bricks Conveying  Conveyor  12 Feet Approx, Powered by 1/2 H.P. Geared Motor.

the company is primarily engaged in the manufacturing, exporting, and supplying of bricks making plant (rbm-15) all over the world, which is an automatic fly-ash brick making machine. The bricks making plant, provided by us, is higher in grades, performance, and working life. The bricks making plant can be availed from us at competitive prices. ash bricks, making hydraulic presselectric motor 15hp 3ph crompton / havells/ hindustan, complete with power pack (pump of poly hydran/boss &valve of yuken/ poly hydran. Electric panel (with messung systems plc) limit switch/proximity sensors, hopper, front trolley, back trolley oil tank capacity 300 lit. Cylinder made by honed tube. Piston is hard chrome. Production capacity of 14000 bricks/shift or 8000 pavers or 4000 blocks. pan mixture1 no. reva pan mixer having capacity of 500 kgs. Fitted with 2 nos. Heavy c. I. Rollers, fitted with changeable bottom wear plates fitted with mixing and discharge blades, having special alloy steel tips, complete with quality worm reduction gear box elecon/radicon make powered by 20 h.p./electric motor of kirloskar/crompton/havells make with starter. conveyor1 no. reva belt conveyor for loading and unloading the material of the pan mixer of app. 20 ft. And powered by 3 h. P. Electric motor of kirlostar/crompton make fitted with quality gear box with starter. The conveyor is fitted with rubber top nylon conveyor belt and is moving on frictionless idlers. mould

• (12 cavity) 12 bricks/stroke with frog

pallet trucks2 nos. reva pallet trucks are fitted with hydraulic lifting, hand pumping and manual dragging arrangement with lift capacity of 1000 kgs. details

• automatic material feeder, hydraulic operated, controlled by plc
• automatic pallet feeder, hydraulic operated controlled by plc
• finished fly-ash bricks pallet conveyor, 01 h.p. Geared motor operated, controlled by plc

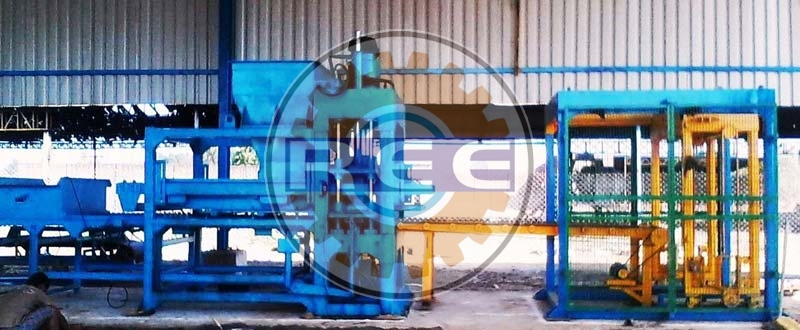

We offer excellence in the form of Fly Ash Brick Making Machine (RBM-10). It is easy to maintain, sturdy and hassle free. These features make it popular not only in India but also worldwide. The product on offer is manufactured making use of world class raw material purchased from the vendors who go all-out to deliver consistent quality. We conform to the highest grades and norms set by industry.



Details :

• Heavy structure body with four nos. of shaft to guide the Ram Punch of Mould, Electric Panel (With Mitsubishi PLC) Limit Switch/Proximity Sensors, Hopper,   Cylinder Made by Honed Tube. Piston Is Hard Chrome. Production Capacity  8, 000 to 10, 000 Bricks/Shift. 5 H.P. Mould Vibrator.
• Automatic material feeder and Pallet Feeder, Hydraulic operated, controlled by PLC.



Features :

• Hollow Block 8”x8”x16” 02Pcs/Stroke=1800 to 2000 Blocks/Shift.
• Solid Block 8”x8”x16” 02Pcs/Stroke=2300 to 3000 Blocks/Shift.
• Total Power - 25.5 H.P. OR 19.2 KW
• Hydraulic System - Hydraulic Power pack of  300 Ltr. Capacity,   with Flange type motor, Douty Gear Pump, Yuken Valves, Oil filters at Incoming , outgoing and return line. Electric Motor 10HP 3PH of Crompton / Havells, Complete With Power Pack , Water cooler arrangement.
• Brick Mould - (06Cavity). 06 Bricks/Stroke  with Frog (Name in Brick).
• Pan Mixer - 1 No. “Reva” Pan Mixer having capacity of 400 Kgs. fitted with 2 Nos. heavy C.I.Rollers, fitted with changeable bottom wear plates fitted with mixing and discharge  blades, having special alloy steel tips, complete with quality Worm Reduction Gear Box of Elecon/Roto-Reva powered by 10 H.P./Electric Motor of Kirloskar/Crompton/Havells make With starter.
• Pallet Trucks - 2 Nos. “Reva” Pallet Trucks are fitted with Pneumatic Tyres, and manual dragging arrangement with lift capacity of 1000 Kgs.
• Pallet Conveyor -Finished Bricks Conveying  Conveyor  12 Feet Approx, Powered by 1/2 H.P. Geared Motor.

Determined to achieve100% customer satisfaction, we, as a top player in the industry, put a great effort in delivering excellence. Fly Ash Brick Making Machine (RBM-12) is available in a variety of sizes and designs. It is manufactured by skilled professionals to make sure there is no plunge in the quality. Its optimum efficiency, easy operation and user friendly design make it an attractive alternative. Get your hands on the intriguing quality for minimal rates.



Details :

• Heavy structure body with four nos. of shaft to guide the Ram Punch of Mould, Electric Panel (With Mitsubishi PLC) Limit Switch/Proximity Sensors, Hopper, Cylinder Made by Honed Tube. Piston Is Hard Chrome.
• Production Capacity 13, 000 to 15, 000 Bricks/Shift. 5 H.P. Mould Vibrators. Automatic material feeder and Pallet Feeder, Hydraulic operated, controlled by PLC.



Features :

• Hollow Block 8”x8”x16” 03Pcs/Stroke=2700 to 3200 Blocks/Shift
• Solid Block 8”x8”x16” 03Pcs/Stroke=3200 to 3700 Blocks/Shift
• Total Power - 33.5 H.P. OR 25.2 KW
• Hydraulic System - Hydraulic Power pack of  300 Ltr. Capacity,   with Flange type motor, Douty Gear Pump, Yuken Valves, Oil filters at Incoming , outgoing and return line. Electric Motor 10HP 3PH of Crompton / Havells, Complete With Power Pack , Water cooler arrangement.
• Brick Mould - (10Cavity). 10 Bricks/Stroke  with Frog (Name in Brick).
• Pan Mixer - 1 No. “Reva” Pan Mixer having capacity of 600 Kgs. fitted with 2 Nos. heavy C.I.Rollers, fitted with changeable bottom wear plates fitted with mixing and discharge  blades, having special alloy steel tips, complete with quality Worm Reduction Gear Box of Elecon/Roto-Reva powered by 20 H.P./Electric Motor of Kirloskar/Crompton/Havells make With starter.
• Pallet Trucks - 2 Nos. “Reva” Pallet Trucks are fitted with Pneumatic Tyres, and manual dragging arrangement with lift capacity of 1000 Kgs.
• Pallet Conveyor - Finished Bricks Conveying  Conveyor  12 Feet Approx, Powered by 1/2 H.P. Geared Motor.

Being an eminent Manufacturer, Supplier and Exporter of Fly Ash Brick Making Machine (RBM-06), we intend to get complete customer satisfaction. Our assorted range is made using unparalleled raw material. We meet the highest norms and grades of quality set by the industry. It is designed keeping in mind different specifications. The optimum design, excellent functionality and durability of the product are available for affordable prices.



Details :

• Heavy structure body with four nos. of shaft to guide the Ram Punch of Mould, Electric Panel (With Mitsubishi PLC) Limit Switch/Proximity Sensors, Hopper,   Cylinder Made by Honed Tube. Piston Is Hard Chrome.
• Production Capacity  4500 to 6, 000 Bricks/Shift. Automatic material feeder , Hydraulic operated, controlled by PLC.



Features :

• Not suitable for Hollow Blocks.
• Hydraulic System -Hydraulic Power pack of  200 Ltr. Capacity,   with Flange type motor, Douty Gear Pump, Yuken Valves, Oil filters at Incoming , outgoing and return line. Electric Motor 05 HP 3PH of Crompton / Havells, Complete With Power Pack, Water cooler arrangement
• Brick Mould -(02Cavity). 02 Bricks/Stroke  with Frog (Name in Brick).
• Pan Mixer - 1 No. “Reva” Pan Mixer having capacity of 200 Kgs. fitted with 2 Nos. heavy C.I.Rollers, fitted with changeable bottom wear plates fitted with mixing and discharge  blades, having special alloy steel tips, complete with quality Worm Reduction Gear Box of Elecon/Roto-Reva powered by 5/7.5 H.P./Electric Motor of Kirloskar/Crompton/Havells make With starter.
• Belt Conveyor - 1 No. “Reva” Belt Conveyor for loading and unloading the material of the Pan Mixer , and powered by 2 H.P. Electric Motor of Havells / ABB/ Siemens/Bharat Bijlee  make fitted with quality gear box with starter.The conveyor is fitted with rubber top nylon conveyor belt and is moving on frictionless idlers.
• Pallet Trolley
  • 2 Nos. “Reva” Pallet Trucks are fitted with Pneumatic Tyres, and manual dragging arrangement with lift capacity of 1000 Kgs.
  • No need of Wooden Pallets. Manual Lifting of Bricks.

Bringing into play the industrial expertise gained over the course of many years, we keep coming up with products meeting the exact needs of the customers. As a Manufacturer, Supplier and Exporter, we offer yet another quality product in the form of Fly Ash Brick Making Machine (RBM-25). It is known for its low maintenance, optimum design and maximum efficiency. Lay your hands on it at reasonable rates.



Details :

• Heavy structure body with four nos. of shaft to guide the Ram Punch of Mould, Electric Panel (With Mitsubishi PLC, ) Limit Switch/Proximity Sensors, Hopper,   Cylinder Made by Honed Tube. Piston Is Hard Chrome. Production Capacity  24, 000 to 26, 000 Bricks/Shift. 7.5 H.P. Mould Vibrator.
• Automatic material feeder and Pallet Feeder, Hydraulic operated, controlled by PLC.



Features :

• Hollow Block 8”x8”x16” 06Pcs/Stroke=4500 To 5500 Blocks/Shift
• Solid Block 8”x8”x16” 06Pcs/Stroke=6000 to 7000 Blocks/Shift
• Total Power - 51 H.P. OR 38.25 KW
• Hydraulic System - Hydraulic Power pack of  300 Ltr. Capacity,   with Flange type motor, Douty Gear Pump, Yuken Valves, Oil filters at Incoming , outgoing and return line. Electric Motor 20HP 3PH of Crompton / Havells, Complete With Power Pack , Water cooler arrangement.
• Brick Mould - (21Cavity). 21 Bricks/Stroke  with Frog (Name in Brick).
• Pan Mixer - 2 No. “Reva” Pan Mixer having capacity of 550 Kgs. fitted with 2 Nos. heavy C.I.Rollers, fitted with changeable bottom wear plates fitted with mixing and discharge  blades, having special alloy steel tips, complete with quality Worm Reduction Gear Box of Elecon/Roto-Reva powered by 15 H.P./Electric Motor of Kirloskar/Crompton/Havells make With starter.
• Pallet Trucks - 2 Nos. “Reva” Pallet Trucks are fitted with Pneumatic Tyres, and manual dragging arrangement with lift capacity of 1000 Kgs.
• Pallet Conveyor - Finished Bricks Conveying  Conveyor  12 Feet Approx, Powered by 1/2 H.P. Geared Motor.

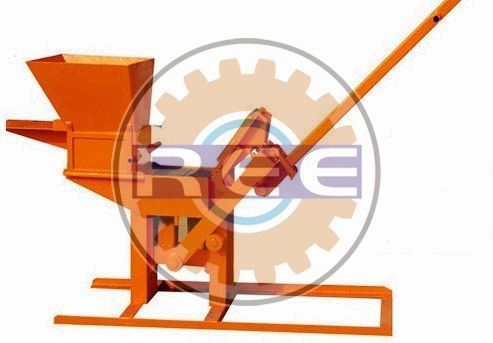

Admired for its low maintenance and durability, our Manual Interlocking Brick Making Machine is enormously popular among the customers. It is made from materials purchased from the trustworthy vendors who pin quality on the top of their priority list. As a leading figure in the industry, we manage to keep our quality in synchronization with our standing. We make it available for easy on the pocket rates.



Details :

• Manual Earth/Clay brick making machine is one new kind of small manual brick making machine, which is cheap and durable, easy to operate and no need power.
• It is quick in product forming, high in product density and strong in pressing power. After remolding, people can stand on the brick Consumption of materials can be reduced.
• This machine uses a mixture of soil and cement to make stabilized bricks at a ratio of between 5 and 10% cement to soil, depending on the soil type available.
• Bricks are interlocking so there is no need for mortar when building.
• Easy Operation. Hand press concrete /cement brick making machine

Trying to stay in the race with latest trends, we try hard to reach 100% customer satisfaction. We deliver spotless quality in Semi Automatic Vibro Press Brick Making Machine to our customers. The raw material used in its manufacturing is of first class quality. We assure you in terms of meeting the standards of quality set by industry. For our valued customers, we make quick delivery at their doorstep.





• Mould - (06Cavity). 06 Bricks/Stroke  with Frog (Name in Brick).
• Powered by 2 H.P. 2800 RPM Vibrator

Motivated to secure top spot in the industry, we aim to deliver a quality which sets us apart in the form of Manual Vibro Press Brick Making Machine. Our distribution network allows us to facilitate quick and convenient delivery in a matter of time at your doorstep. The smooth operability and robust built of the product make it an interesting proposition. We offer the supreme quality at economical rates.



Details :

• Vibro-Press Manual Brick/Block Making Machine. Heavy Structure Body. Electric Vibrator of 2HP 3PH. For Mould Vibration with Hollow/Solid Block Mould.
• Six Bricks/Stroke with Fog ( Name in Bricks). Production Capacity upto 2000 Pcs.
• Hollow or Solid Block of 6”x 8”x 16” = 2 Pcs/Stroke.

Commanding respect from all quarters, we are ranked among the top names in the industry. Automatic Interlocking Brick Making Machine on offer is available in a wide array of specifications designs and sizes. It is manufactured at our state of the art manufacturing facility making use of top notch raw materials, latest technology and advanced tools and equipment. Its optimum design, sturdy built and high efficiency are the traits which make the offer tempting.



Details :

• Heavy structure body with four nos. of shaft to guide the Ram Punch of Mould, Electric Panel (With Mitsubishi PLC), Hopper. Production Capacity 4500 to 6, 000 Bricks/Shift.
• Not suitable for Hollow Blocks.
• Total Power - 12.5kw OR 16.5 H.P.
• Pan Mixer having capacity of 250 Kgs. complete with quality Worm Reduction Gear Box of Elecon/Roto-Reva powered by 5/7.5 H.P. Electric Motor.
• Belt Conveyor for loading and unloading material of the Pan Mixer , and powered by 2 H.P. Electric Motor with quality gear box with starter.
• No need of Wooden Pallets. Manual Lifting of Bricks.
• 2 Nos. Pallet Trolleys

We are a well-reckoned Bricks Making Plant (RT10-15) Manufacturer, Exporter, and Supplier in India. The Bricks Making Plant is a Fly Ash Brick Machine, which is excellent in performance and longer in working life. Our Bricks Making Plant (RT10-15) is high in demand in national as well as international markets. Advantages

• Mould structure : We design the mould structure specially in order to change the mould easily, about the mould lifespan , we use the newest heat treatment equipment to do carburization work
• Electricity motor in mixer and host machine: We will use Havells motor, because this two part nearly working all time in working day, so we could use high-level hard wearing motor for this, and the motor will also be of CE standard
• Switches : We will select the France Schneider brand
• The control system using computer control and man-machine interface
• Electrical equipment of the well-known brands from Japan and Germany

We are offering clay brick making machine. The clay brick making machine can be installed on the false work (wooden/iron board), also can be installed on the concrete foundation. The clay, after crushing sand stone, is conveyed into the adobe maker with suitable moisture, which goes into the hopper of mixer. It is then mixed by the screw with water and takes a mud pie shape. We can also customize the brick mould according to the clients specifications. components :

• hopper
• mud pie cutter
• mud adobe slicer
• adobe maker

capacity :

• 20000-25000pcs/8hrs

.
