Reva Engineering Enterprises

Tronica City, Ghaziabad, Delhi

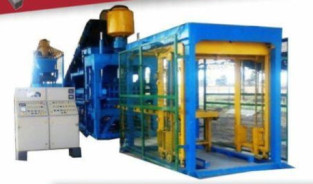

We are ardently engaged in manufacturing a versatile range of Fly-Ash Brick Plant which is used extensively in the construction industry for the fabrication of bricks, pavers, files, and blocks etc which constitute fly-ash as the main ingredient in combination with sand, lime and gypsum. These Bricks Making Plants are developed by using advanced manufacturing technology under the supervision of our expert professionals to ensure zero defect configurations. Characterized by easy operation and superior performance, the Brick Plant that we provide can be customized in accordance with the demands of our clients at reasonable prices. Thus, we are the prominent Manufacturer and one of the leading Suppliers from India. REVA has the most versatile plant for the manufacture of Fly-ash bricks/pavers/files/blocks made out of fly ash as the main constituent in combination with sand, lime and gypsum. bricks can also be produced out of fly-ash and cement mix or sand lime or sand cement. The process consists of mixing and grinding the materials in the pan mixer. With the addition of batching equipment the material can be mixed with in the required proportions by weight to have uniform quality most economically. The mixed and ground materials are conveyed on the belt conveyor to the REVA Brick Making Machine from where the hydraulically compressed bricks are continuously produced and taken to the curing site on pallets by the pallet trucks/conveyors, where, bricks are cured by water spray or steam cured for early strength. The main machines of the system are Pan Mixer, Belt Conveyor, Brick Machine, Color Mixer, Color feeder, Pallet Trucks along with the wooden/Metal pallets.

Automatic Batching System of 2 or 3 or 4 Bin for Raw Material. Weighing of Raw Material on Belt Conveyor with 4 Nos. S Type Load Cells and Digital Batch Controller of Automatic Operation. Batch Printing Facility, H.P. Vibrator on Each Bin. Weighing Belt Conveyor powered by 5 H.P. Geared Motor and Accessories.

Avail from us top-notch quality Concrete Block Making Machine which finds application in numerous construction applications like for casting of solid and hollow concrete blocks. Offering easy operation and high efficiency, the Hydraulic Block Making Machine is vibration based and renders high frequency. Having adjustable amplitude, our durable Block Machines are available in different capacities at highly competitive prices. Appreciated for their sturdy construction and low power consumption, these machines are designed by employing cutting edge technology. Consequently, we are one of the reputed Manufacturers in our domain. 'REVA' Egg Laying Type Concrete Block Making Machine Fully Hydraulic and Vibration Based. Capacity: 50-60 stroke/Hour Vibration: High Frequency Adjustable Amplitude

Egg-Lying Type Concrete Block Making Machine with Mould, Hydraulic

Pump-3HP, 1440RPM, Vibrator- 2HP-2800RPM ,

Travel Motor- 1/2 HP-1440rpm, Mould Area-860x600mm.

Block Capacity-2000/Shift.Model No. :RBM1

Egg-Lying Type Concrete Block Making Machine with Mould

Hyd. Pump Motor-05HP, Vibrator-2HP , Travel -01HP,

Mould Area-1050x660mm. Block Capacity : 2500/Shift.

Model No. : RBM2

Heavy structure body with four nos. of shaft to guide the Ram Punch of Mould, Electric Panel (With Mitsubishi PLC, ). Production Capacity 40, 000 to 45, 000 Bricks/Shift. 7.5x2 H.P. Mould Vibrator, [Automatic material feeder and Pallet Feeder, Hydraulic operated, controlled by PLC.

Pan Mixer having capacity of 850 Kgs. X 2 quality Worm Reduction Gear Box Elecon/Roto-Reva make powered by 25 H.P./ Electric Motor With Star-Delta starter.

Belt Conveyor for loading and unloading the material of the Pan Mixer of app. 31 ft. and powered by 3 H.P. Electric with quality gear box with starter. With Storage Bin

Finished Bricks Conveying Conveyor 12 Feet Approx, Powered by 1H.P. Geared Motor.

4 Nos. Pallet Trolleys.

Auto Batching System of 3 Bins for Raw Material. Weighing of the Raw Material on the Belt Conveyor with help of the Load Cells and Automatic Batch control System and Computer Printing Facility and one week data storage. Automatic Discharge of the Raw Material. Weighing conveyor controlled by 5 H.P. Geared Motor and H.P. Chute vibrator on the Bins of Aggregate.

Automatic Stacker for Lifting the Pallets with Bricks. Powered by 01+02 H.P. Electric Motor, Controlled by Variable Frequency Drive, Controlled by Mitsubishi PLC.

1. Screw Conveyor of 31 Feet, powered by 5 H.P. geared motor and Accessories.

2. Cement weigh Hopper with

butterfly valve discharge.

3. Cement storage capacity 1000 kgs.

Fabricated using quality raw materials and by utilizing advanced manufacturing techniques, our Tile Machines offer high production as well as higher mould life. Our premium quality automatically operating Auto Tile Press Machine is fully hydraulic with the provision for vibration. Rendering faster operation, our Roof Tile Machines pass through stringent quality control checks to ensure strict adherence to industry standards and parameters. Acclaimed as one of the prime Manufacturers, our machines are available at industry leading prices as per the customized needs of our customers. 'REVA' Auto Tile Press Automatic operation. Hydraulic with vibration provision. Operated on both sides. 7.5 H.P. Elec. power. App. 3000 Pavers per day. High Production. Faster Operation. Higher Mould life.

The company is one of the famous tile press machine manufacturers, exporters, and suppliers, based in delhi (india). The tile press machine is available with us in different models namely rtm1, rtm2, and rtm3. These tile press machines are known for their superb efficiency and easier working.

Reva Engineering Enterprises semi-Auto/Manual type Egg Laying type Concrete Hollow Block Machine.

Mould Area/Stroke 10 Blocks/Stroke.

Powered By : 5HP for Hydraulic Unit.

2 HP for Vibrator

1 HP for Travel Motor with Gear Box.

Production Capacity : 1500 to 2000 Blocks in a day.
