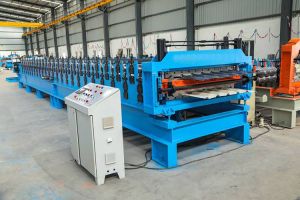

Roofing Sheet Making Machine in Rajkot

• Number of forming stations : 18 nos.
• Horizontal distance between shafts : 500mm

We provide you the fully automatic Roofing Sheet Making Machine with punching of Roof Sheet in the various models and Forming sizes more...

• Specifications : Maximum sheet width that can be formed : 1250 mm,Horizontal distance between shafts : 500mm etc.

We offering finest quality Roof Tile Making Machine to clients. This is the fastest machine on the market. The newly servo drive punch simultaneously advances and punches with accuracy as the material continually moves through the machine. Not only does this considerably increase the speed of the roll forming more...

• Coil width : 1450 MM
• Mandrel movement : Manually adjusted
• Number of forming stations : 23 nos.
• Horizontal distance between shafts : 500mm
• Back Tension : Manually adjusted
• Maximum sheet thickness in PPGI/PPGL Strips that can be formed : 0.5 mm
• Coil weight : 5 MT Max
• Maximum sheet width that can be formed : 1450 mm
• Size of machine : 9500 x 1700 x 1100 mm
• Coil bore : 450 MM min, 510 MM max dia.

D coiler 5 ton cap. Entry Gate with Roll Forming Line with 23 station , 10 H.P. electrical. Control Panel semi auto Cutting Unit (Hydro.) Entry Gate Entry gate will be provided for movement of sheet to roll former. Main Base The main base is MS fabricated structure and adequately ribbed to minimize the distor more...

• MOQ : 1 piece
• Power : 17.5 HP
• Weight : 9 ton approx
• Driven Type : Electric
• Warrenty : 1 Year
• Voltage : 220V
• Automatic Grade : Automatic

more...

• MOQ : 1 Unit
• Supply Type : Manufacturer
• Material : Mild Steel
• Production Capacity : More Than 25 Ton/day,10 ton/day
• Driven Type : Electric
• Automatic Grade : Automatic

more...

• MOQ : 1 piece
• Automatic Grade : Automatic
• Voltage : 380-440 V
• Driven Type : Electric
• Country of Origin : India
• Application : Industrial
• Phase : Three Phase
• Frequency : 50Hz

more...

Ø  Characteristic ·         This roll forming machine can roll form metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface. ·         Roll forming process: uncoiler, roll forming, cut to length. ·  more...

Technical specifications maximum sheet width that can be formed : 1550mm maximum sheet thickness in crca strips that can be formed : 1 mm horizontal distance between shafts : 400mm number of forming stations : 12 nos vertical station : 11 nos total hp for line : 13 speed of the machine : 7 mt.minute size of m more...

Using only quality raw materials, our entire range of products is manufactured. We make sure that the raw materials we use are thoroughly checked against varied quality parameters. Keeping pace with the contemporary market trends, we ensure on-time and safe delivery of the orders.   Details : Tile Type - more...
