1 Products availableLeading Manufacturer, Supplier & Retailer of Hg/Hgo Reference Electrode, Platinum Foil Electrode, Platinum Wire Counter Electrode, Ag/AgCl Teflon Body Reference Electrode and Ag/AgCl Micro Reference Electrode.
The Mercury Oxide (HgO) is a reference electrode based on the reaction between elemental mercury and mercury (o) Oxide used under high PH Environment.
The Hg/HgO is the best choice analytical reference for alkaline solutions. The Mercury Oxide Reference Electrode is ideal for battery development, energy systems research and development, process control, electro-analytical studies, measure half-cell potentials, titration and many other electrochemical measurements
Before you used the reference electrode Tap the Glass tube and Make sure no air bubble is trapped in the lower portion of the tubing. The electrode should be dipped into 1M NaoH or 1KOH Solution immediately and left overnight before use.
Additional Information:
Delivery Time : 1 Week
Platinum Foil Counter Electrode 10 mm X 10 mm Size 0.1 Micron Plate Thickness with teflon rod and gold Plated Connector Total length 100 mm.
Used in a Three Electrode Electrochemical Cell for Voltammetric Analysis or Other Reactions in Which an Electric Current Is Expected to Flow
Additional Information:
Delivery Time : 1 Week
Teflon Body Ag/agcl Reference Electrode Is Available in Solid as Well as Liquid Electrolyte.
Porous Ceramic Tips Are Used to Repaire All Type of Reference Electrode It, s Available in All the Size .
Additional Information:
Delivery Time : 1 Week
Additional Information:
Delivery Time : 2 Weeks
Platinum Plate Counter electrodes (0.5 thick ) 10mm X 10 mm are also available in a variety of lengths. The electrode of choice depends upon the type of cell and the experiment.
Platinum Plate Counter Electrode with gold-plated connector, mounted in Teflon cylinder.
Gold (Au) working electrode is chemically stable, is a typical working electrode. Gold Disk working electrode is most commonly used electrochemistry measurements, for e.g. Cyclic Voltammetry.
Electrode size is as shown in the figure. The gold diameter is 2.0 mm. and the Electrode body material is Teflon. The Outside diameter is 1/4(inch); 6.35 mm. with gold plated connector for connecting to system. The total length of the electrode is 100 mm
Additional Information:
Delivery Time : 1 Week
A silver chloride electrode is a type of reference electrode, commonly used in electrochemical measurements like cyclic Voltametry or potentiometry , the silver chloride electrode is the most commonly used reference electrode for testing cathodic protection corrosion control systems in sea water environments.
Storage stands bottle use with all type of reference electrode as “universal’s electrodes storage bottle. The ideal environment for keeping your referenceelectrodes; "ready-for-use. “Its prevents electrolyte from gradual evaporation for a long time And keep the Electrode ceramic Porous tips; moist.
Additional Information:
Delivery Time : 1 Week

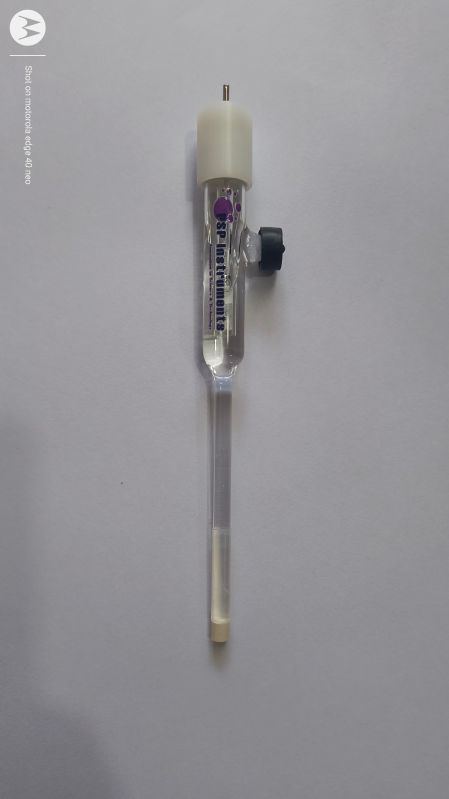

Saturated Calomel Reference electrode is a reference electrode in electrochemical analysis. it is used in corrosion as well as EIS measurment in electrochemical analysis.
The Saturated calomel electrode (SCE) is a reference electrode based on the reaction between elemental mercury and mercury(I) chloride it is used in an electrochemical measurement like electrochemical impedance study or corrosion study.
Additional Information:
Delivery Time : 1 Week
Platinum Disc Electrode is used as a working electrode in elctrochemistry
Additional Information:
Delivery Time : 1 Week
Additional Information:
Delivery Time : 1 Week

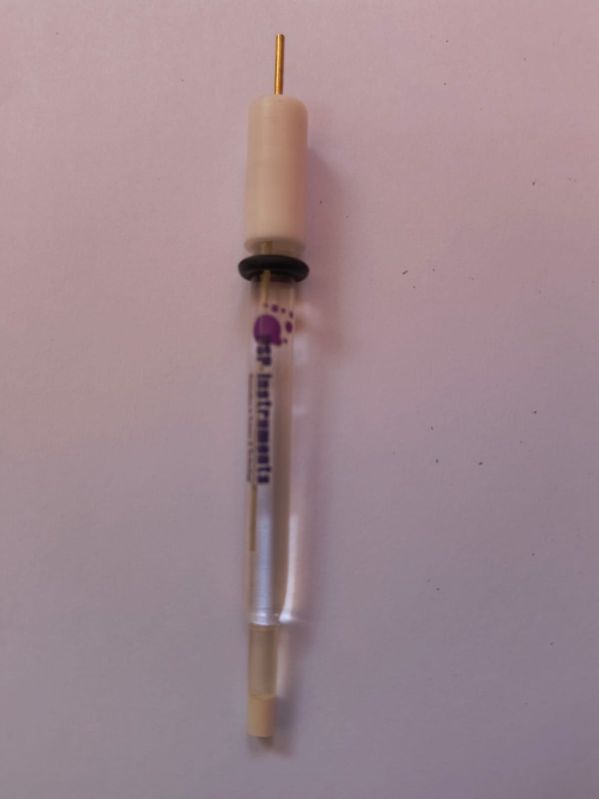

It is a compact non-aqueous Ag/Ag+ reference electrode equipped with ceramic frit
This type of reference electrode is commonly employed in non-aqueous electrochemical studies.
Additional Information:
Delivery Time : 1 Week
Platinum coil (Spring) auxiliary electrodes (0.5 mm diameter) are available in a variety of lengths. The electrode of choice depends upon the type of cell and the experiment
Platinum Spring Electrode 60mm with gold-plated connector, mounted in Teflon cylinder
Graphite Rods are use as a counter electrode in the Corrosion study as well as Electrochemical Impendence study.
It is made up of highly pure and imported material having the good porosity and conductivity. Customer may specify the length and diameter depend upon the cell
Half-Cell Cu/cuso4 Reference Electrode (Copper- Copper Sulphate Electrode) Is Easy and Convenient to Measure Electrical Potentials for Corrosion Engineers Quickly at Site
Additional Information:
Delivery Time : 1 Week
