Rotating Electrical Connector

Mercotac Rotating Electrical Connector / Brushless Slip Rings MERCOTAC Inc., USA for Mercotac Rotating Electrical Connectors (Brushless Slip Rings) (www.mercotac.com) Mercotac connectors are ideal for Instrumentation, Robotics, Thermocouples, Cable reels, Strain gauges, Turntables, Testing and control devices, Windmills, Packaging equipment More..

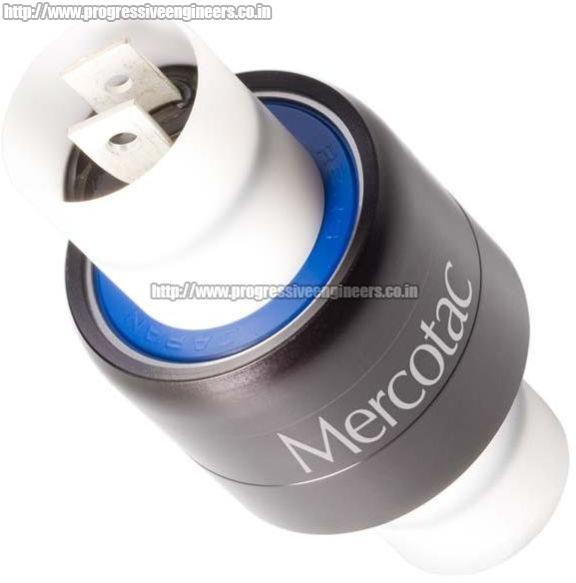

Brushless Slip Ring (235)

  • Min. Order (MOQ) One Piece(s)
  • Type Rotating Connectors
  • Brand Name Mercotac
  • Application Windmill
  • Model Number M235
  • Place of Origin USA

Based in Maharashtra, India, we are a high-flying name known for supplying Brushless Slip Ring (235) in the nationwide market. The offered Model 235 is typically mounted by either the black body or the white plastic bushing on either end using a set screw. When mounting horizontally, mount the Mercotac so the body of the connector rotates. Interested buyers can acquire it in any quantity, from us, all year around. Our prices are also marginal.

Additional Information:

Payment Terms :

Specifications

Model No. Terminals Voltage
AC/DC
Amp
Rating
@500VAC
Max.
Freq.
MHz
Contact Resistance Max.
RPM
Temp
Max. F (C) /
 Min. F (C)
Rotation
Torque (gm-cm)
Circuit
Separation
235 2 0-500 30 100 <1m Ω 1200 140 (60) /-20(-29) 400 >50m Ω
235-SS 2 0-500 30 100 <1m Ω 1200 140 (60) /-20(-29) 400 >50m Ω










Download


Download Detail File : Click Here
View Complete Details

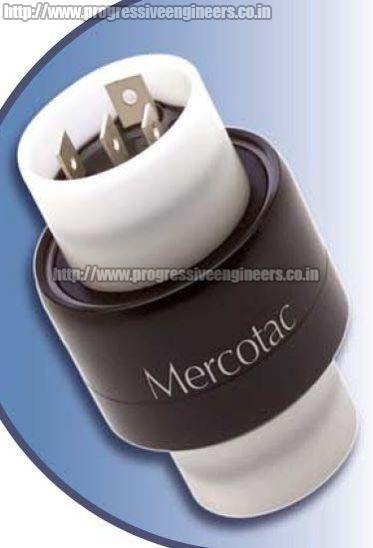

Rotating Electrical Connector (435)

We are the suppliers of high-quality Mercotac Rotating Connectors (Brushless Slip Ring (435)) in Mumbai, Maharashtra (India). A Brushless Slip Ring (435) is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. These rotating electrical connectors have been developed to meet the needs of a variety of industrial machinery applications. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints. Our mission is to provide prompt delivery of the highest quality Brushless Slip Ring (435) at very competitive prices.

Graph Image


Download Detail File : Click Here

Specifications

Model No. Conductors Description Voltage AC/DC AMP Rating at 500 VAC Max. Freq. Mhz Contact Resistance Max OP. RPM Temperature Max. F(c)/ Min.F(C) Rotation Torque (gm-cm) Circuit Separation
435 4 High Voltage Mode 0-500 30 100 <1m? 300 140(60)/-20(-29) 850 >50m?
435-SS 4 High Voltage Stainless Steel Bearing 0-500 30 100 <1m? 300 140(60)/-20(-29) 850 >50m?
View Complete Details

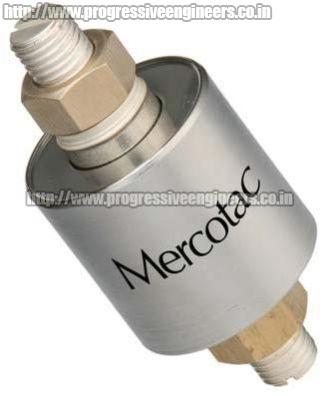

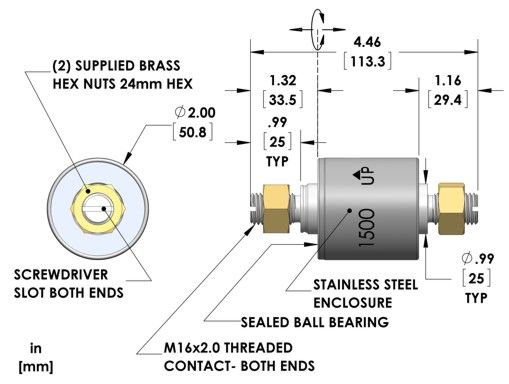

Brushless Slip Ring (1500)

  • Min. Order (MOQ) 1 Piece(s)
  • Model No. M1500
  • Model No. M1500SS
  • Model No. M1500-1
  • Model No. M1500-1-SS

We are offering Brushless Slip Ring (1500) that is suitable for high-power applications. Being a quality-driven firm, we strive to deliver qualitative and durable Electrical Connectors from Maharashtra, India. The entire lot is procured from the certified places after complete quality satisfaction. Buyers can acquire them in any quantity as and when required.

More about Brushless Slip Ring (1500) : Mercotac model 1500 series are ideal connectors for high-power applications such as on plating electrodes and welding cable reels that require more power than the smaller Mercotac model 1250 series connectors. They come standard with stainless steel housing. Available with stainless steel ball bearing (1500-SS or 1500-1-SS) (recommended for wet or corrosive environments).

Additional Information:

Delivery Time : With in week after receipt of confirm order

Specifications

Model No. Terminals Voltage
AC/DC
Max
Amp
Rating
Max.
Freq.
MHz
Contact Resistance Max.
RPM
Temp
Max. F (C) /
 Min. F (C)
Rotation
Torque (gm-cm)
Circuit
Separation
1500 1 N/A 500 200 <1m Ω 300 140 (60) /-20(-29) 750 N/A
1500-SS 1 N/A 500 200 <1m Ω 300 140 (60) /-20(-29) 750 N/A
1500-1 1 N/A 500 200 <1m Ω 300 140 (60) /-20(-29) 750 N/A
1500-1-SS 1 N/A 500 200 <1m Ω 300 140 (60) /-20(-29) 750 N/A










View Complete Details

Rotating Electrical Connector (830)

Our company is an established name in the market, providing customers with uniquely designed Mercotac Rotating Connectors (Brushless Slip Ring (830)) that guarantee satisfaction every time. It is an electric transmission device that allows energy flow between two electrical rotating parts, such as in a motor. These durable, compact and maintenance-free rotating electrical connectors are useful in areas such as IT, instrumentation, thermo-couplings, robotics, and video and audio applications. We are proud to offer unique, high quality, low cost rotating electrical connectors to our clients.

Graph Image


Download Detail File : Click Here

Specifications

Model No. Conductors Description Voltage AC/DC AMP Rating at 240 VAC Max. Freq. MHz. Contact Resistance Max. OP. RPM Temperature Max. F(C)/Min. F(C) Rotation Torque (gm-cm) Circuit Separation
830 8 Standard Model 0-250 2 @ 4/6 @30 100 <1m? 200 140(60)/-20(-29) 1000 >25m?
830-SS 8 Stainless Steel Bearing 0-250 2 @ 4/6 @30 100 <1m? 200 140(60)/-20(-29) 1000 >25m?
View Complete Details

Rotating Electrical Connector 630)

We are the suppliers of high-quality Mercotac Rotating Connectors (Brushless Slip Ring (630)) in Mumbai, Maharashtra (India). Brushless Slip Ring (630) can be used in any electromechanical system that requires unrestrained, intermittent or continuous rotation while transmitting power and / or data. Brushless Slip Ring (630) that we offer are ideal for applications where high revolutions per minute, low (electrical) noise, and low resistance prohibit the use of conventional slip rings.  Our mission is to provide prompt delivery of the highest quality rotating electrical connectors at very competitive prices.

Graph Image


Download Detail File : Click Here

Specifications

Model No. Conductors Description Voltage AC/DC AMP Rating at 240 VAC Max Freq. Mhz. Contact Resistance Max OP. RPM Temperature Max. F(C)/ Min. F(C) Rotation Torque(gm-cm)
630 6 Standard Model 0-250 2@4/4@30` 100 <1m? 300 140(60)/-20(-29) 700
630-SS 6 Stainless Steel Bearing 0-250 2@4/4@30 100 <1m? 300 140(60)/-20(-29) 700
View Complete Details

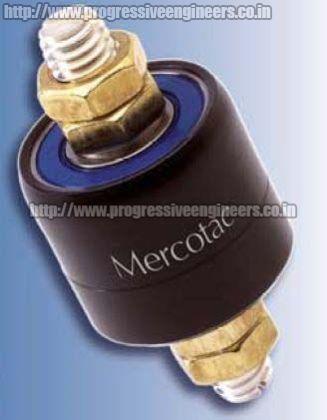

Rotating Electrical Connector (1250)

We are the suppliers of high-quality Mercotac Rotating Connectors (Brushless Slip Ring (1250)) in Mumbai, Maharashtra (India). It is an electric transmission device that allows energy flow between two electrical rotating parts, such as in a motor. These rotating electrical connectors have been developed to meet the needs of a variety of industrial machinery applications. They can be used on any rotating object to transfer power, control circuits, or analog or digital signals including data such as those found on aerodrome beacons, rotating tanks, power shovels, radio telescopes or heliostats. Our mission is to provide prompt delivery of the highest quality Brushless Slip Ring (1250) at very competitive prices.

Graph Image


Download Detail File : Click Here

Specifications

Model No. Conductors Description Voltage AC/DC AMP Rating at 240 VAC Max. Freq. Mhz Contact Resistance Max. OP. RPM Temperature Max. F(c)/Min. F(c) Rotation Torque (gm-cm) Circuit Separation
1250 1 Standard Model N/A 250 200 <1M? 1200 140(60)/-20(-29) 250 N/A
1250-SS 1 Stainless Steel Bearing N/A 250 200 <1M? 1200 140(60)/-20(-29) 250 N/A
1250-M 1 Metric Thread (10x1.5) N/A 250 200 <1M? 1200 140(60)/-20(-29) 250 N/A
1250-MS 1 Metric Thread & Stainless Steel Bearing N/A 250 200 <1M? 1200 140(60)/-20(-29) 250 N/A
1250-SX 1 Stainless Steel Body & Bearing N/A 250 200 <1M? 1200 140(60)/-20(-29) 250 N/A
1250-MSX 1 Metric Thd. Stainless Steel Body & Bearing N/A 2500 200 <1M? 1200 140(60)/-20(-29) 250 N/A
View Complete Details

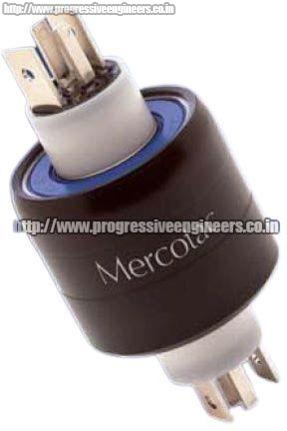

Rotating Electrical Connector (430)

We are the suppliers of high-quality Mercotac Rotating Connectors (Brushless Slip Ring (430)) in Mumbai, Maharashtra (India). These rotating electrical is a method of making an electrical connection through a rotating assembly. Rotating Electrical Connectors are commonly found in slip ring motors, electrical generators for alternating current (AC) systems and alternators. They also have a long life than others in the competition. We ensure a prompt delivery of the highest quality rotating electrical connectors at very competitive prices. We are well-capacitated to deliver them in bulk quantities, within the given time frame.

Graph Image


Download Detail File : Click Here

Specifications

Conductors Description Voltage AC/DC AMP Rating At 240 VAC Max Freq. Mhz Contact Resistance Max OP. RPM Temperature Max. F(c)/ min. F(C) Rotation Torque (gm-cm) Circuit Sepration
4 Standard model 0-250 2@4/2@30 100 <1m? 1200 140(60)/-20(-29) 400 >25m?
4 Stainless steel Bearing 0-250 2@4/2@30 100 >1m? 1200 140(60)/-20(-29) 400 >25m?
View Complete Details

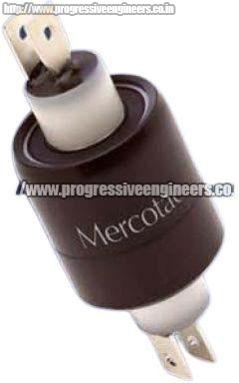

Rotating Electrical Connector (230

Our company is an established name in the market, providing customers with uniquely designed Mercotac Rotating Connectors (Brushless Slip Ring (230)) that guarantee satisfaction every time. A Brushless Slip Ring (230) can be used in any electromechanical system that requires unrestrained, intermittent or continuous rotation while transmitting power and / or data. These durable, compact and maintenance-free rotating electrical connectors are useful in areas such as IT, instrumentation, thermo-couplings, robotics, and video and audio applications. Our mission is to provide prompt delivery of the highest quality rotating electrical connectors at very competitive prices.

Graph Image


Download Detail File : Click Here

Specifications

Model No. Conductors Description Voltage AC/DC AMP Rating at 240 VAC Max. Freq. Mhz Contact Resistance Max. OP. RPM Temperature Max. F(C)/Min. F(c) Rotation Torque (gm-cm) Circuit Separation
230 2 Standard Model 0-250 30 200 <1m? 1800 140(60)/-20(-29) 200 >25m
230-SS 2 Stainless Steel Bearing 0-250 30 200 <1m? 1800 140(60)/-20(-29) 200 >25m
View Complete Details

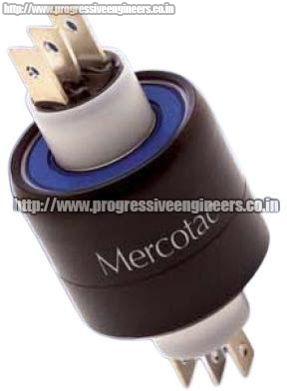

Rotating Electrical Connector (330)

Our company is an established name in the market, providing customers with uniquely designed Mercotac Rotating Connectors (Brushless Slip Ring (330)) that guarantee satisfaction every time. The rotating electrical connectors are using the special insulation, sealing, and conductive technologies. Brushless Slip Ring (330) are commonly found in packaging machinery, cable reels, wind turbines, etc., these rotating electrical connectors have been developed to meet the needs of a variety of industrial machinery applications. We are proud to offer unique, high quality, low cost rotating electrical connectors to our clients.

Graph Image


Download Detail File : Click Here

Specifications

Model No. Conductors Description Voltage AC/DC AMP Rating at 240 VAC Max. Freq. Mhz Contact Resistance Max. OP. RPM Temperation Max. F(c)/Min. F (c) Rotation Torque (gm-cm) Circuit Separation
330 3 Standard Model 0-250 30 100 <1m? 1200 140(60)/-20(-29) 300 >25m?
330-SS 3 Stainless Steel Bearing 0-250 30 100 <1m? 1200 140(60)/-20(-29) 300 >25m?
View Complete Details

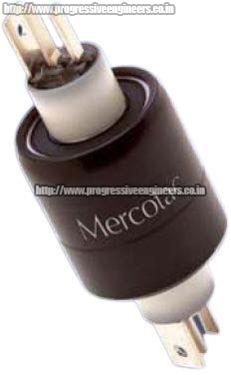

Rotating Electrical Connector (331)

Our company is an established name in the market, providing customers with uniquely designed Mercotac Rotating Connectors (Brushless Slip Ring (331)) that guarantee satisfaction every time. These rotating electrical connectors have been developed to meet the needs of a variety of industrial machinery applications. Brushless Slip Ring (331) that we offer are ideal for transmitting signal and control circuits, in applications where high revolutions per minute, low (electrical) noise and low resistance prohibit the use of conventional slip rings. We are proud to offer unique, high quality, low cost rotating electrical connectors to our clients.

Graph Image


Download Detail File : Click Here

Specifications

Model No. Conductors Description Voltage AC/DC AMP Rating at 240 VAC Max Freq. Mhz Contact Resistance Max OP. RPM Temperature Max. F(C)/Min. F (C) Rotation Torque (gm-cm) Circuit Separation
331 3 Standard Model 0-250 2@4/1@30 100 <1m? 1800 140(60)/-20(-29) 200 >25m?
331-SS 3 Stainless Steel Bearing 0-250 2@4/1@30 100 <1m? 1800 140(60)/-20(-29) 200 >25m?
View Complete Details

Rotating Electrical Connector (110)

We are the suppliers of high-quality Mercotac Rotating Connectors (Brushless Slip Ring (110)) in Mumbai, Maharashtra (India). These rotating electrical connectors have been developed to meet the needs of a variety of industrial machinery applications. Brushless Slip Ring (110) is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. It produces low (electrical) noise, low resistance and has a long life than others in the competition. Our mission is to provide prompt delivery of the highest quality Brushless Slip Ring (110) at very competitive prices.

Graph Image


Download Detail File : Click Here

Specifications

Model. No Conductors Description Voltage AC/DC AMP Rating at 240 VAC Max Freq. Mhz Contact Resistance Max. OP. RPM Temperature Max. F(C)/Min. F (C) Rotation Torque (gm-cm) Circuit Separation
110 1 Standard Model N/A 10 200 <1m? 3600 140(60)/-20(-29) 35 N/A
110-SS 1 Stainless Steel Bearing N/A 10 200 <1m? 3600 140(60)/-20(-29) 35 N/A
110-L 1 Low Torque N/A 10 200 1m? 1200 140(60)/-20(-29) 10 N/A
View Complete Details

Rotating Electrical Connector 110-T)

We are the suppliers of high-quality Mercotac Rotating Connectors (Brushless Slip Ring (110-T)) in Mumbai, Maharashtra (India). Brushless Slip Ring (110-T) are commonly found in slip ring motors, electrical generators for alternating current(AC) systems and alternators and in packaging machinery, cable reels, and wind turbines. We offer these Rotating Electrical Connectors to our client from manufacturers who utilize the latest technology equipment available and time-tested quality control measures to assure reliable Connectors. Our mission is to provide prompt delivery of the highest quality rotating electrical connectors at very competitive prices.

Graph Image


Download Detail File : Click Here

Specifications

Model No. Conductors Description Voltage AC/DC AMP Rating at 240 VAC Max. Freq. Mhz Contact Resistance Max. OP. RPM Temperature Max. F(C)/min. F (C) Rotation Torque (gm-cm)
110-T 1 Standard Model N/A 10 200 <1M? 3600 140(60)/-20(-29) 35
110-TS 1 Stainless Steel Bearing N/A 10 200 <1M? 3600 140(60)/-20(-29) 35
110-TL 1 Low Torque N/A 10 200 <1M? 1200 140(60)/-20(-29) 10
105 1 High Temp. High RPM N/A 4 200 <1m? Call for Specification
105-ss 1 Stainless Steel Bearing N/A 4 200 <1M? Call for Specification
View Complete Details

Rotating Electrical Connector (305)

We are the suppliers of high-quality Mercotac Rotating Connectors (Brushless Slip Ring (305)) in Mumbai, Maharashtra (India). The rotating electrical connectors are using the special insulation, sealing, and conductive technologies. Brushless Slip Ring (305) are commonly found in packaging machinery, cable reels, wind turbines, etc., these rotating electrical connectors have been developed to meet the needs of a variety of industrial machinery applications. They also have a long life than others in the competition. Our mission is to provide prompt delivery of the highest quality rotating electrical connectors at very competitive prices.

Graph Image


Download Detail File : Click Here

Specifications

Model No. Conductors Description Voltage AC/DC AMP Rating at 240 VAC Max Freq. Mhz. Contact Resistance Max OP. RPM Temperature Max. F(C)/Min. F(c) Rotation Torque(gm-cm) Circuit Separation
305 3 Stainless Steel Bearing Standard 0-250 4 200 <1m? 1800 140 (60)/45(7) 100 >25m
305-L 3 Low Temperature 0-250 4 200 <1m? 1000 140(60)/-20(-29) 100 >25m
View Complete Details

Rotating Electrical Connector (205)

  • Model Number 205

We are the suppliers of high-quality Mercotac Rotating Connectors (Brushless Slip Ring (205)) in Mumbai, Maharashtra (India). These rotating electrical connectors have been developed to meet the needs of a variety of industrial machinery applications. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints. They also have a long life than others in the competition. We are proud to offer unique, high-quality, low cost rotating electrical connectors to our clients. We are capable of delivering it in bulk quantities, within the stipulated time frame.

Graph Image


Download Detail File : Click Here

Specifications

Model No. Conductors Description Voltage AC/DC AMP Rating at 240 VAC Max. Freq. Mhz Contact Resistance Max. OP. RPM Temperature Max. F(C)/Min. F(C) Rotation Torque (gm-cm) Circuit Sepration
205 2 Standard Model 0-250 4 200 <1m 2000 140(60)/45(7) 75 >25m
205-SS 2 Stainless Steel Bearing 0-250 4 200 <1m 2000 140(60)/45(7) 75 >25m
205-L 2 Low Torque/Low Temp. 0-250 4 200 <1m 1200 140(60)/-20(-29) 20 >25m
205-LS 2 Low Temp. Stainless Steel Bearing 0-250 4 200 <1m 1200 140(60)/-20(-29) 75 >25m
205-H 2 High RPM 0-250 4 200 <1M 3600 140(60)/45(7) 35 >25M
205-HS 2 High Stailess Steel Bearing 0-250 4 200 <1m 3600 140(60)/45(7) 35 >25m
View Complete Details

Brushless Slip Ring (335)

  • Brand Name Mercotac
  • Material Rotating Connectos
  • Application WindMill, Lamination Machine

As a quality-driven firm, we bring forth a high quality array of Brushless Slip Ring (335) in the Indian market. We are reckoned Supplier of Electrical Connector from Maharashtra, India. The Model 335 that we offer is typically mounted by either the black body or the white plastic bushing on either end using a set screw. When mounting horizontally, mount the Mercotac so the body of the connector rotates. Interested buyers are required to place orders with us and can expect timely deliveries of the same.

Specifications

Model No. Terminals Voltage
AC/DC
Amp
Rating
@500VAC
Max.
Freq.
MHz
Contact Resistance Max.
RPM
Temp
Max. F (C) /
 Min. F (C)
Rotation
Torque (gm-cm)
Circuit
Separation
335 3 0-500 30 100 <1m Ω 500 140 (60) /-20(-29) 700 >50m Ω
335-SS 3 0-500 30 100 <1m Ω 500 140 (60) /-20(-29) 700 >50m Ω










Download


Download Detail File : Click Here
View Complete Details
