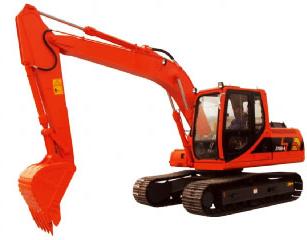

ZY150 Crawler Excavator

Listing ID #381358

Get Latest Price

Supply Type Manufacturer, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

We are renowned as one of the prominent ZY150 Crawler Excavator Suppliers in Mumbai (India). The ZY150 Crawler Excavator, which we offer, is known for its unsurpassed performance and longer working life. The ZY150 Crawler Excavator can be availed from us at the most competitive prices. Details

Isuzu engine
Optimized hydraulic system

Technical Parameters

Specification
Operating weight	6650kg
Standard bucket capacity	0.22mÂ³
track shoe width	400mm
arm length	1700mm
Engine
Model	Yanmar 4TNV94L-SFN
Type	natural aspirated
Power	37.9kw/2200rpm
Max.torque	217Nm at 1000rpm
No.of cylinders	4
Displacement	3.054L
Hydraulic system
Main pump
Type	Variable displacement axial piston pumps
Max. displacement	138.6L/min
Working pressure	25Mpa
Hydraulic motor
Slew	Fixed displacement axial piston motor
Travel	Variable displacement axial piston motor
Performance
Slew speed	12rpm
Min. back slew radius	1660mm
Max. travel speed high/low	4.8/2.6km/h
Gradeability	35Â°
Travctive effort	46.3kN
Max. digging force of bucket	44.5kN
Max. digging force of arm	30.7kN
Ground pressure	0.337kg/c
Tank capacity
Fuel tank capacity	135L
Hydraulic tank capacity	95.8L
