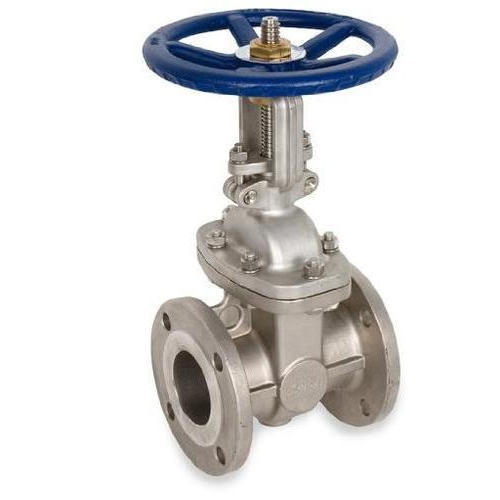

ZIRCONIUM GATE VALVE

ZIRCONIUM GATE VALVE

Listing ID #6002412

Get Latest Price
  • BodyZirconium 702, Zirconium 705, Monel 400, Monel K500, Monel 600, Duplex, Super Duplex Stainless Steel
  • OperationsHandwheel Operated, Electric Actuated, Pneumatic Actuated
  • Butt welded End DimensionANSI B16.5
  • Nominal PressurePN 1.0 to 25 Mpa, Class 150 to 2500
  • Supply Type Exporter, Supplier, Retailer, Distributor, Trader
  • Preferred Buyer Location India only
View More Details
Send Enquiry

Company Information

specialityvalve verified-icon
Pn Palayam, Coimbatore, Tamil Nadu
View Number
  • Member Since 3 Years
  • Nature of Business Manufacturer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Butt welded End Dimension ANSI B16.5
  • Nominal Pressure PN 1.0 to 25 Mpa, Class 150 to 2500
  • End Connections Flanged, Socketweld, Buttweld
  • Body Zirconium 702, Zirconium 705, Monel 400, Monel K500, Monel 600, Duplex, Super Duplex Stainless Steel
  • Face to Face Dimension ANSI B16.10, API 6D
  • Operations Handwheel Operated, Electric Actuated, Pneumatic Actuated
  • Nominal Size DN50 to DN600

Dimensions                                                                Unit: mm

Class 150

DN L L1 L2 H W
50 178 191 216 341 200
65 190 203 241 371 200
80 203 216 283 402 250
100 229 241 305 472 280
125 254 267 381 530 300
150 267 279 403 587 300
200 292 305 419 743 350
250 330 343 457 904 400
300 356 368 502 1047 450
350 381 394 572 1172 500
400 406 419 610 1297 600
450 432 445 660 1433 680
500 457 470 711 1590 750
600 508 521 813 1898 800
