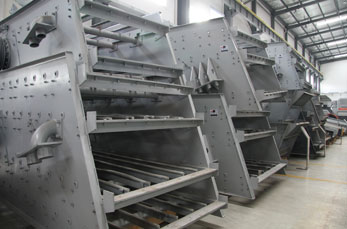

Contact SupplierDepend on decades-years’ experience in mining industry and latest technology, SBM designed the YKN series vibrating screen, which has high-strength exciting force.YKN series vibrating screen adopts the eccentric vibration exciter of N series. And the transmission adopts flexible connector. As a result, the amplitude is bigger and the vibration is much more stable than old types. Also the throughput and screening efficiency are greatly improved.
FeaturesYKN Vibrating Screen is widely used for grading and screening materials in the following fields: minerals, quarry, building materials, water conservancy and hydropower, transportation, chemical industry, smelting and so on. For material quality of screen mesh is changeable, the application is quite extensive.
Model |
Screen Size(mm) |
Layers |
Mesh Size(mm) |
Feeding Size(mm) |
Capacity(t/h) |
Power (kw) |
D-Amplitude(mm) |
Angle(°) |
2YKN2160 |
2100×6000 |
2 |
6~150 |
400 |
100~600 |
30 |
7~11 |
20 |
3YKN2160 |
2100×6000 |
3 |
6~150 |
400 |
100~600 |
37 |
7~11 |
20 |
4YKN2160 |
2100×6000 |
4 |
6~150 |
400 |
100~600 |
45 |
7~11 |
20 |
2YKN2460 |
2400×6000 |
2 |
6~150 |
400 |
150~850 |
30 |
7~11 |
20 |
3YKN2460 |
2400×6000 |
3 |
6~150 |
400 |
150~850 |
37 |
7~11 |
20 |
4YKN2460 |
2400×6000 |
4 |
6~150 |
400 |
150~850 |
45 |
7~11 |
20 |
