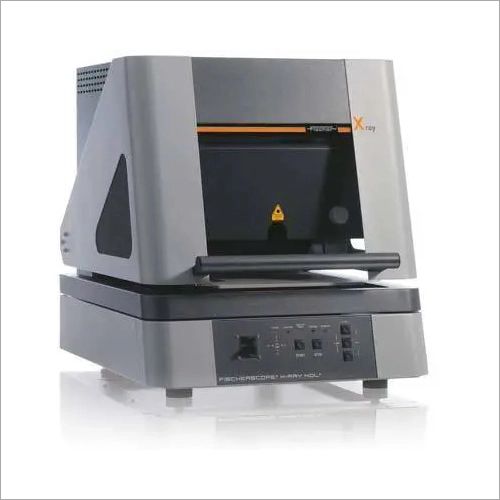

X-RAY XDAL-237 Gold Testing Machine For Hallmarking Centres

Listing ID #6155186

• These are uniquely designed and developed with high-precision, programmable XY-stage and an electrically.
• These are user-friendly bench-top instruments acclaimed for sample stage moves into the loading position automatically, when the protective hood is opened.
• These are compact sized, robust designed and ensure longer stability. Its laser pointer works as a positioning aid and supports the quick alignment of the sample to be measured.
• These are operated through the powerful and user-friendly WinFTM® software and designed as per German regulations Deutsche Rontgenverordnung-rov". Its entire operation and evaluation of measurements as well as the clear presentation of measurement data is performed on a PC through software.

• Intended use: Energy dispersive X-ray fluorescence measuring instrument (EDXRF) to determine thin coatings and alloys
• Element range:Aluminum Al (13) to Uranium U (92)  up to 24 elements simultaneously
• Design:Bench-top unit with hood opening upwards XY-stage and Z-axis  electrically driven and programmable,Motor-driven changeable apertures and filters Video camera and laser pointer (class 1) for orienting the sample
• Measuring direction: Top down

X-Ray Source

• X-ray tube Micro focus tungsten tube with beryllium window
• High voltage Three steps 10 kV, 30 kV, 50 kV
• Aperture (Collimator):4x changeable: 0.1 mm (3.9 mils), 0.3 mm (11.8 mils),˜ 0.6 mm (23.6 mils) slot 0.5 x 0.15 mm (19.7 x 5.9 mils), others on request
• Primary filter: 3x changeable (Standard configuration: Nickel, Aluminum, no filter)
• Measurement spot: Depending on the measuring distance and on the aperture, the actual spot size is shown in the video image. Smallest measurement approx. 0.15 mm (5.9 mils) with aperture 0.1 mm (3.9 mils)

• X-ray detector Silicon PIN detector with peltier cooling

• Resolution (fwhm for Mn-K±) 200 eV

• Measurement distance:0 80 mm (0 3.2 in) Distance compensation with patented DCM method for simplified measurements at varying distances. For particular applications or for higher demands on accuracy an additional calibration might be necessary.

• Video microscope High-resolution CCD color camera for optical monitoring of the measurement location along the primary beam axis,manual focusing and auto-focus, crosshairs with a calibrated scale (ruler) and spot-indicator,adjustable LED illumination, laser pointer (class 1) to support accurate sample placement.
• Zoom factor Digital 1x, 2x, 3x, 4x

Sample Stage

• Design Programmable, motor-driven XY-stage
• Maximum Travel X/Y-axis: 255 x 235 mm (10 x 9 in); Z-axis: 140 mm (5 in)
• Max. travel speed 80 mm/s (3.2 in/s)
• Repeatability precision XY ‰0.01 mm (0.4 mils), unidirectional
• Usable sample placement area Width x depth [mm]: 300 x 350 mm, [in]: 12 x 14
• Max. sample weight 5 kg, with reduced approach travel precision 20 kg
• Max. sample height 140 mm (5.5 in)

Electrical Data

• Power supply AC 115 V or AC 230 V 50 / 60 Hz
• Power consumption Max. 120 W ,without evaluation PC
• Protection class IP40

Dimensions

• External dimensions Width x depth x height [mm]: 570 x 760 x 650 mm, [in]: 22 x 30 x 26

• Interior dimensions Width x depth x height [mm] measurement chamber: 460 x 495 x 146 mm, [in]: 18 x 19.5 x 5.7
• Weight Approx.:115 kg (52 lb)

Environmental Conditions

• Temperature: Operation10°C 40°C / 50°F 104 °F
• Temperature Storage/Transport: 0°C €“50°C / 32°F 122 °F
• Admissible air humidity 95 %, non-condensing

• Computer Windows®-PC
• Software Standard:Fischer WinFTM® BASIC including PDM®
• Optional: Fischer WinFTM® SUPER
