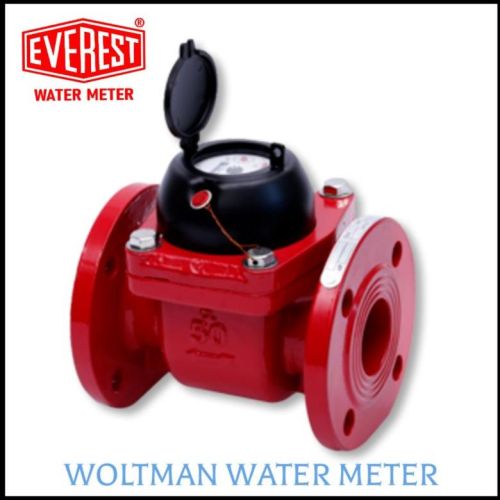

Contact SupplierWe are one of the eminent Manufacturers, Exporters and Suppliers of superior-grade Woltman Water Meters (Hot Water) in Delhi, India. Our company is engaged in designing and fabrication precision engineered Woltman Water Meters (Hot Water) that are used in various industries, for irrigation purposes, and larger residential supplies. Our meters are easy to install and guarantee continuous operation. They are reliable and guarantee a long service life, as they are manufactured from premium raw materials using the latest technologies.
Quality
Characteristics
Features :
The Woltman meter is mainly used in the industrial field or for larger residential supplies.
Use for industry and irrigation.
Water Meter Conforming to International Standard ISO : 4064 Class - B and IS : 2373/81.
Horizontal Woltman with removable insert.
Sealed counter mechanism with magnetic transmission.
Direct reading on numerical rolls.
Prepared for impulse switch (mountable even after installation).
First quality materials resistant to corrosion.
Hot Water Temp. Upto 80oC.
METER SIZE |
50mm |
80mm |
100mm |
150mm |
200mm |
250mm |
---|---|---|---|---|---|---|
Max. Recording Cap. in Ltrs |
100 |
100 |
100 |
100 |
100 |
100 |
Min. Reading Qty in Ltrs |
10 |
10 |
100 |
100 |
100 |
100 |
Outside dia. of flanges |
165 |
200 |
220 |
285 |
340 |
395 |
Dia of Bolt Circle |
125 |
160 |
180 |
240 |
295 |
350 |
Thickness of Flanges |
19 |
19 |
19 |
23 |
23 |
23 |
Holes No. |
4 |
4 |
8 |
8 |
8 |
8 |
Holes Dia |
19 |
19 |
19 |
19 |
19 |
19 |
Hydrostatic test (E-Type and I-Type) |
1.6 MPa |
1.6 MPa |
1.6 MPa |
1.6 MPa |
1.6 MPa |
1.6 MPa |
Nom. cap. of water meters discharge ltrs./hrs at 1m loss of head |
50000 |
125000 |
200000 |
500000 |
800000 |
1100000 |
Intermediate Cap. of Water meter discharge Ltr./hrs. at 1m loss of head |
20000 |
62000 |
100000 |
250000 |
400000 |
550000 |
Metering Accuracy |
+2% |
+2% |
+2% |
+2% |
+2% |
+2% |
Minimum starting flow Lt. per hr. |
500 |
1000 |
1500 |
3500 |
5500 |
9000 |
Permissible loading ltrs/ day (8 hours) |
200000 |
620000 |
1000000 |
2500000 |
4000000 |
5500000 |
