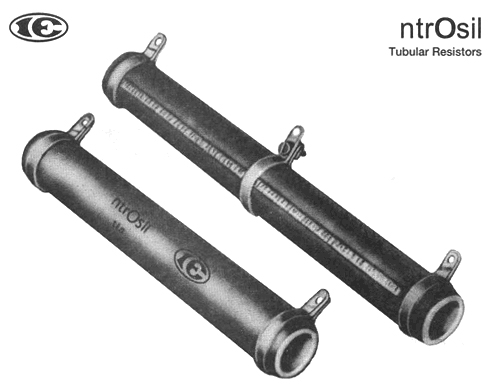

Contact SupplierSilicone Cement Coated Tabular Resistors from the most compact and reliable type of unit possible for rating from 10 Watt to 500 Watt. They are mechanically robust, constant in Ohmic Value and withstand the most severe conditions of humidity. | |||||||
 | |||||||
Construction : | |||||||
Former :Â High Quality Ceramic Former, impervious to Moisture penetration and exceptional ability to withstand thermal shock. Â
|
Wattage | Former Type | Length mm | OD mm | ID mm |
10 | X2 | 50.8 | 11.5 | 4.8 |
20 | Z2H | 63.5 | 16.7 | 9.5 |
30 | Z3 | 76.2 | 16.7 | 9.5 |
40 | Z4 | 101.6 | 16.7 | 9.5 |
40 | S4 | 101.6 | 22.0 | 12.7 |
40 | K85 | 85.0 | 23.0 | 15.0 |
50 | Z5 | 127.0 | 16.7 | 9.5 |
50 | S4H | 114.3 | 22.0 | 12.7 |
50 | K102 | 102.0 | 23.0 | 15.0 |
Wattage | Former Type | Length mm | OD mm | ID mm |
60 | S5H | 139.7 | 22.0 | 12.7 |
63 | K125 | 125.0 | 23.0 | 15.0 |
74 | S6H | 165.1 | 22.0 | 12.7 |
120 | T6H | 165.1 | 31.0 | 19.0 |
150 | T8 | 203.2 | 31.0 | 19.0 |
200 | T10 | 254.0 | 31.0 | 19.0 |
230 | T12 | 305.0 | 31.0 | 19.0 |
350 | U10 | 254.0 | 53.0 | 38.1 |
500 | U14 | 355.6 | 53.0 | 38.1 |
