Contact SupplierTechnical details :-
Product: Winkerlight for Flexible Hoses (SBM)
Model: Flexiguard
Height: 133cms.
Weight: 15 Kg Approx
Lens-Glass Colour: White, Blue, Green, Yellow and Red (as per Customer’s Choice)
Visibility: 360’ Degrees
Range: 2.5 Nautical Miles
Flashing Rate: User Programmable 200 Iala Marine Flashing Codes
Operative Period: Auto Starts At Sunset Hours and Auto Stops At Sunrise Hours It also Starts During Foggy Weather and in Poor Visibility
Light Source: 6 Ultra High Intensity Led's
Glass Colour: Transperent White
Light Output: @ 9º Angle of Divergence
Green - 8.3cd(candela)
White - 8.3cd
Red - 5cd
Yelllow - 4cd
Blue - 8.3cd
[1]With Retro Reflective Tapes On the Main Body At Three Places
[2]Base Plate Where the Light Lens is Installed is of Stain Less Steel GR 316
[3]Saftey Cage Guard for the Lens of Stain Less Steel of 20 MM Thickness
[4]Flange Holding Screws of LN Type
By Above New Added Features Ensures Increase in the Life of the Main Body.
Current Draw Day Time: Nil
10% Duty Cycle: 10ma (max Power Setting)
Lamp (Led) Life: Excess of 100,000 Hrs.
Solar Module: 1watt 2 Volt Sealed Inside Lens Unit with Charge Controller
Flash Codes: 250 International Codes Adjustable Via Two Rotary Switches
Pulse Adjustment: Via 2 Dip Switches
Unit Has Been Designed to Fit On the Top of the Flexible Hose of 24 Inches Dia or as per Order.
Whole Unit Has Been Designed as Water Resistive and Coated with Marine Grade Paint
Unit is Inrisically Safe to Operate in the Hydro- Carbon Content Atmosphere as all Electrical Parts are Sealed Inside polycarbonate Sterene Glass Material Which Helps to Increase Light Transperency also Ribs On the Glass Helps to Amplify the Different Viewing Angles
specifications are Subject to Change Without Notice for Quality Improvement.
customers are Requested to Give Their Drawings of the Flexible Hoses Flange with the Nuts and Bolts Sizes to Precisly Design the Mounting Base.
any More Suggestion from Customer for Product Modifications/improvement is the Most Welcome.
Commercial Details
Name of Product :- Winker Light for Flexible Hoses of SBM
Model :- Flexiguard
Delivery :- Within 20 Days After Confirmed Order
Payment :- By Cheque, On the Name “ Networks United”. 100% Payment to Be Made Within 30 Days After Delivery

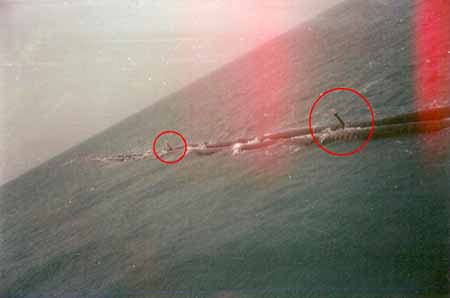

This Lights are Mounted On Top of the Mounting Assembly On the Sbm’s Flexible Hoses.
