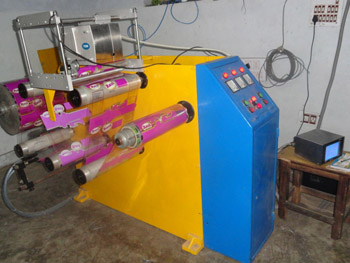

Contact Supplier  Salvage Rewinding (Correcting badly Wounded Reels for Inspection & Doctoring Operation.)
INTRODUCTION:
In any paper, film and foil conversing industries, the Winder/Rewinder  is used widely for on-line printing of Mfg. Dt., Exp. Dt. B. No. etc. using Ink- jet printer or other contact coding machines from Roll to Roll at high speeds & then these printed roll are used in various packaging machines.
FEATURES:
Cantilever design balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Ink Jet Printing System with Hot air ink drying.
STRUCTURE FITTING:
M.S. CHANNEL FRAME BODY with mechanical clutch & break unwind / unwind system, unwind / rewind shaft & cones for printed material holding cores for printed material cores, alum – guide roller & all other standard accessories.
ACCESSORIES FOR INKJET CODER MOUNTING INCLUDED IN THE MACHINE
Web Width / Weight | : | 75-500 mm. / 50 Kg. (Above 500 mm – Heavy Duty Machine) | |
Max. Max. Parent Reel Dia | : | 400 mm. | |
Max. Rewind reel dia. | : | 400 mm | |
Rewind Core dia. | : | 76 mm | |
Motor | : | 2 HP DC motor | |
Max. Designed Speed | : | 100 to 150 Mtrs / min. |
