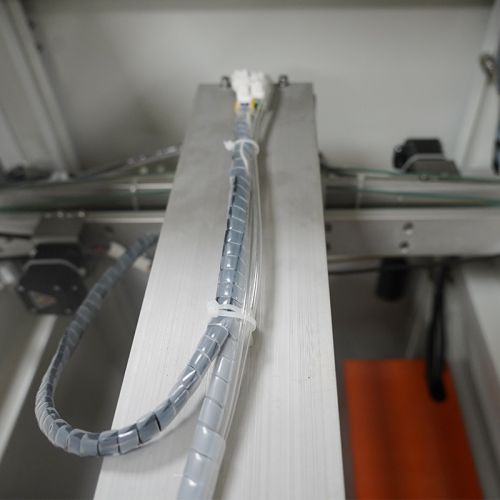

Smt pcb board flipper automatic pcba inverter

Listing ID #6624851

Function:

This machine is used to inverter flip PCBs (180degrees) for double side process.

Features:

1. PLC control system +Touch-screen panel which is stable and reliable, easy to operate.;
2. Flipping power supply by stepping motor, speed fast;
3. With preventing plate to avoid board stuck, optical sensor to make sure the flipping safety;
4. Professional guide rail design with all aluminum material, Swift, smooth and precise operations;
5. Full closed design make sure the highest operation protection level;
6. Trouble-locating and security detection system, visual sound-light alarm;
7. Standard SMEMA signal cable to communicate with other equipment to achieve inline operation.

   Specification

   Model	WIT-PC460A
   DimensionL×W×H	603×970×1250(mm)
   PCB SizeL×W	50×50-535×460(mm)
   PCB Thickness	0.6-4(mm)
   Transport direction	L-R or R-L (optional)
   Transport speed	0.5-5m/min
   Transport Height	900±30(mm)
   Power Supply	AC220V±10V,50/60HZ
   Power	500W
   Control Mode	PLC+ Touch Screen
