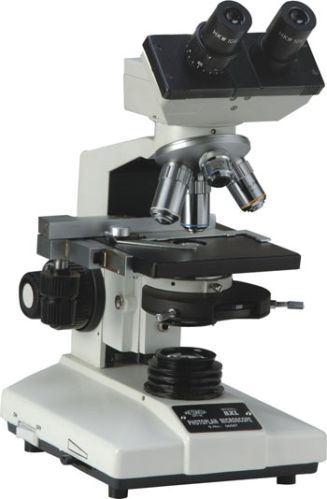

Contact SupplierWe are offering phase contrast microscope.
Stand rigid & heavy single mold aluminum die-cast stand.
Observation head binocular or trinocular head inclined at 45o and rotatable in 360o lockable at any angle. Both eyepiece tubes focusable to match objectives tube length. Interpupillary distance adjustments provided.
Eyepiece keowa h6x and hkw 10x (paired) & one centering telescope eyepiece.
Nosepiece quadruple ball bearing nosepiece with positive click stop & rubber grip.
Objectives achromatic objectives 4xna 0.10 ph, 10xna 0.25 ph, 40xna 0.65(sl) ph and 100xna 1.25(sl, oil imm) ph.
Stage mechanical stage( ball bearing type) of size 120x140mm having low positioned co-axial controls. Both x & y axis having graduated scale & verniers reading to 0.1mm.
Focusing co-axial fine & coarse focusing control with ball bearing guideways based on four stage gear reduction system, free from any back lash & large knobs provide a soft & sophisticated touch to the microscope.
Tension control ring enable you to adjust tension on coarse focusing knobs.
Condenser focusable abbe two lens type condenser na 1.25 fitted with iris diaphragm and swing out filter holder with blue filter moving up and down through rack and pinion mechanism.
Phase contrast attachment phase annular rings built inside matching with annular phase plates provided in a substage condenser having a turret to bring in position the required phase rings suitable for the particular objective which is in position.
Illumination built-in base illumination with 6v-20w halogen lamp & intensity controlled power supply.
Electricals built-in transformer with universal input 100v-240v ac.
Packaging contents
packed in shockproof styrofoam molded box or in a plywood cabinet having provision for placing eyepieces, objectives.
Nylon dust cover.
Detachable power cord and 3-pin plug.
Warranty information
2 years parts.
1 year electronics.
