Welt and Venner Insert Machine, Certification : CE Certified

Listing ID #4385924

15 Lakh - 22 Lakh / Piece
Get Latest Price
  • Country of OriginIndia
  • Overall Weight100-1000kg,1000-2000kg,2000-3000kg
  • Brand NameTechnocrat Mouldings
  • MaterialMild Steel
  • Supply Type Exporter, Supplier, Retailer
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

  • Member Since 13 Years
  • Nature of Business Manufacturer
  • GST No. 06AAACT0473B1ZW

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Country of Origin India
  • Overall Weight 100-1000kg,1000-2000kg,2000-3000kg
  • Brand Name Technocrat Mouldings
  • Material Mild Steel
  • Driven Type Electric
  • Color Blue
  • Condition New
  • Automatic Grade Fully Automatic
  • Power 6-9kw
  • Certification CE Certified
  • Weight 2000-3000kg,1000-2000kg,100-1000kg
  • Warranty 1year

Machines to manufacture Welt & Insert type soles

  • The machine is equipped with sliding and rotational plates which provide easier access for insertion of welt, insert or veneer in the moulds.
  • Compact and easily accessible layout.
  • Sliding system ensures faster mounting of moulds.


Specification Units Techro 1 Techro 2
Screw Diameter MM 65 65
Screw Speed RPM 220/3 Speed Gear Box 220/3 Speed Gear Box
Heating Load KW 3.2 6.4
Electrical Motors KW 17 28
Total Connected Load KW 20.2 34.4
Clamping Force Ton 50/70/100/125 50/70/100/125
Production Capacity Pair/Hr 30-120 60-220
Standard Mould Size MM 300X400 300X400
Net Weight Kgs 1800 3700
Machine Dimensions MM 760(W) x 3000(L) x 2500(H) 1524(W) x 3000(L) x 2500 (H)
Capacity of Oil Tank Ltrs 250 350
Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry

Product Images

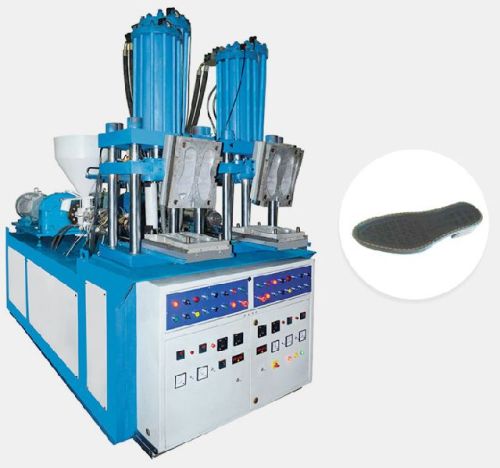

  • Welt and Venner Insert Machine
  • Welt and Venner Insert Machine

Company Details close-icon

Technocrat Moldings Are Engaged In Manufacturing Footwear-Related Machinery To Manufacture TPR/ TPU Soles, PVC Soles, Shoe Last Making Machine, Apart From This We Also Manufacture Paver & Tile Mold Molding Machine And Other Footwear Components.
We also manufacture TAP TAP TUP TUP machine. We also manufacture Air Blown, Airmix, Lightweight, Airfoam, PCU Expanded TPR TE Sandal Slipper Sole Machines.
Our manufacturing facilities are equipped with the latest precision tools and the latest machine to roll out a flawless product.
Our engineering jobs are done on imported machines and the very best hydraulics and electrical are incorporated in the machines.
We have been making world-class unit sole molding machines to process TPR, PVC & TPU material. We manufacture extrusion type as well as screw piston injection type machines.
We at Technocrat Mouldings believe that the growth of the company depends on the faith and belief of our customers in our products and services, which has helped us in building a unique repeat-order customer base.
By means of advanced technology, the most outstanding products, and our passion for quality, we deliver high-performance solutions to meet your individual needs.
  • Nature of Business Manufacturer / Exporter / Supplier / Retailer
  • Number of Employees 20 - 50
  • Year of Establishment 1987
