Supply Type
Manufacturer, Exporter, Supplier
-
Preferred Buyer Location
All over the world
Diameter 4 12" dia bore holes
Depth 150 mtr

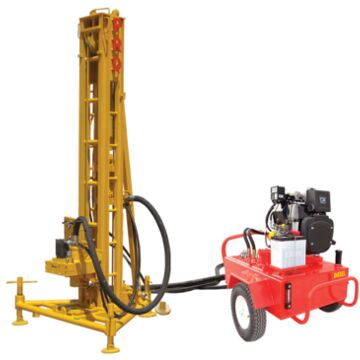

Application Water Well Drilling Rig
Formation soft hard
PRIME MOVER Diesel Deck engine of 15 bhp for hydraulic operated rig from compressor air for Pneumatic operated rig
MOUNTING Stand base
MAST Max Capacity - 8 tons (17600 lbs)
Height- 2.4 mtr (8 ft)
Rod handling - 1.5 mtr(5ft)
PULL UP SPEED 8.5 mtr min (28 ft min)
PULL UP FORCE 2694 kg 5926 lbs
PULL DOWN FORCE 1814kg (3990 lbs)
PULL DOWN SPEED 12.5mtr min
HYDRAULIC SYSTEM 140 kg cm2 (2000 psi)
JACKS Manual screw jack
COMPRESSOR SUITABLE COMPRESSOR
