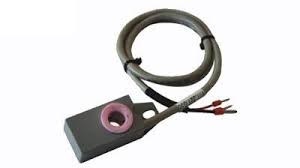

Weft Break Detection Weft Sensor

Listing ID #3597640

The Weft sensor is a highly sophisticated and reliable device to sense the weft breakages, empty bobbin, and uneven weft tension of shuttle in Circular Loom. The design of sensor is heavy - duty type and suitable for environmental conditions of Plastic Woven Sacks Industry. The sensor works on principle of magnetism, thereby eliminating the malfunction due to dust, ambient light, reflection of fabric, which are prominent in light based sensors. The sensor is totally sealed and hence virtually no maintenance is required in day-to-day operations, if setting is not disturbed. The installation is very simple and requires fitting of boom reflector assemblies (with magnets fitted in place of diamond) on boom pipe, mounting of sensor on the loom and fitting of relay card in panel. The magnets are arranged in such a way that north and south poles of the magnets come under sensor alternately, avoiding magnetization of sensor. The 3 - core wire from sensor connects to Relay PCB. When shuttle bobbin runs out of the tape or if the shuttle tape breaks, then the magnet rotates and comes under weft sensor. This magnetic field is sensed by sensor, and Relay is energized. The contact of the Relay is wired to stop the loom and missing tape is compensated by cramming the fabric. Cramming device avoids gap due to missing tape.
