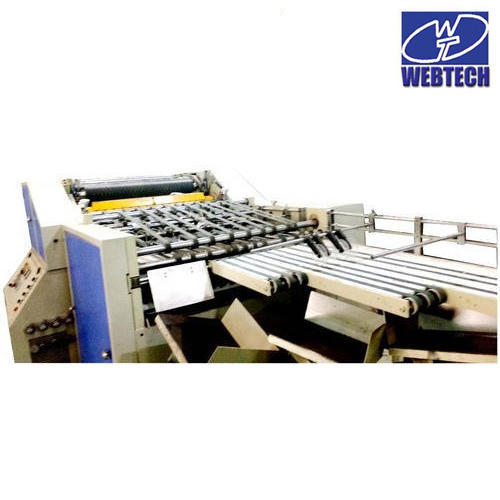

Contact SupplierThe Webtech Copier Cutting Machine is designed for slitting and sheeting of a wide range of papers to produce copier paper direct from reel to sheet to save costly wastage. This machine is suited for Paper mills, Converting houses etc. the machine is designed with HMI controls. The HMI controls all the operations from starting of the machine, speed acceleration, sheet counting, machine de-acceleration and stopping of the machine after preset no of sheets, clearing of sheets on the conveyor and restarting of the machine. this helps the operator to just pick the sheets from the joggers after each batch.
Technical Specifications:
ΓΆ€ΒΆ Maximum Web Width: 900 mm
ΓΆ€ΒΆ Substrate: Paper 53 -105 gsm
ΓΆ€ΒΆ Maximum Sheet Length: 420 mm
ΓΆ€ΒΆ Minimum Sheet Length: 210 mm
ΓΆ€ΒΆ Design Speed: 110 mpm
ΓΆ€ΒΆ Designed Knife Load: 250 gsm
ΓΆ€ΒΆ Cut Length Accuracy: +-0.5 mm
ΓΆ€ΒΆ Unwind Reel Dia (max): 1005 mm on 3" I,d cores
ΓΆ€ΒΆ A number of Unwind Station: 2 Nos.
ΓΆ€ΒΆ Main Motor: 7.5 HP
ΓΆ€ΒΆ Jogger: Individual Motorised Jogging table.
Automatic Controls the following controls are programmed for one-touch operation.
ΓΆ€ΒΆ Preset Number of Sheets
ΓΆ€ΒΆ Slow Down setting
ΓΆ€ΒΆ Machine Speed
ΓΆ€ΒΆ Conveyor running time
ΓΆ€ΒΆ Machine stop time
ΓΆ€ΒΆ Machine acceleration and deceleration times
ΓΆ€ΒΆ Speed meter batch counter
