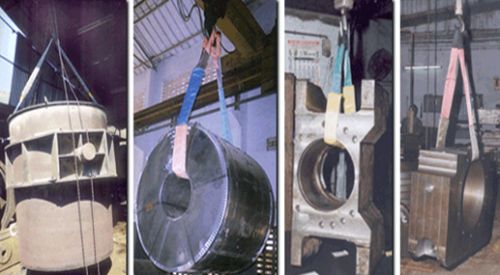

WEBBING SLINGSÂ belongs to the flexible lifting equipment group generally known as Lifting Sling. The flat woven webbing sling is a sling consisting of webbing with woven edges and reinforced eyelets at both ends. These can be provided with Anti-abrasive/Protective sleeve. Maximum mass which webbing component of a flat slings is designed to sustain in straight pull and which a slings or slings authority is designed to sustain in general lifting services.
|
||||||||||||||
 | ||||||||||||||
|
||||||||||||||
 | ||||||||||||||
Polyester Slings Should be kept in a place which is clean and free from dust, grime and foreign material. Mild soap and water can be used for cleaning purpose. Before Putting the Slings back in Storage ensure also allows easy inspection for inspection for possible damage.  WEBBING SLINGS belongs to the flexible lifting equipment group generally known as Lifting Sling. The flat woven webbing sling is a sling consisting of webbing with woven edges with reinforced eyelets at both ends. These can be provided with Anti-abrasive/Protective sleeve. |
Vertical Straight lift |
Colour |
Width |
Choker |
Basket |
Basket 45° |
Basket 90° |
Code No |
 1 TON | VIOLET | 25 mm |    800 kg | 2000 kg | 1800 kg | 1400 kg | W-2481 |
 2 TON | GREEN | 50 mm |  1600 kg | 4000 kg | 3600 kg | 2800 kg | W-2482 |
 3 TON | YELLOW | 75 mm |  2400 kg | 6000 kg | 5400 kg | 4200 kg | W-2483 |
 4 TON | GREY | 100 mm |  3200 kg | 8000 kg | 7200 kg | 5600 kg | W-2484 |
 5 TON | RED | 125 mm |  4000 kg | 10000 kg | 9000 kg | 7000 kg | W-2485 |
 6 TON | BROWN | 150 mm |  4800 kg | 12000 kg | 10800 kg | 8400 kg | W-2486 |
 8 TON | BLUE | 200 mm |  6400 kg | 16000 kg | 14400 kg | 11200 kg | W-2487 |
10 TON | ORANGE | 250 mm | Â 8000 kg | 20000kg | 18000 kg | 14000 kg | W-2488 |
12 TON | ORANGE | 300 mm | Â 9600 kg | 24000 kg | 21600 kg | 16800 kg | W-2489 |
15 TON | ORANGE | 250 mm 3ply | 12000 kg | 30000 kg | 27000 kg | 21000 kg | W-24810 |
20 TON | ORANGE | 250 mm 4ply | 16000 kg | 40000 kg | 36000 kg | 28000 kg | W-24811 |
24 TON | ORANGE | 300 mm 4ply | 19200 kg | 48000 kg | 43200 kg | 33600 kg | W-24812 |
30 TON | ORANGE | 250 mm 6ply | 24000 kg | 60000 kg | 54000 kg | 42000 kg | W-24812A |
36 TON | ORANGE | 300 mm 6ply | 28800 kg | 72000 kg | 64800 kg | 50400 kg | W-24812B |
40 TON | ORANGE | 250 mm 8ply | 32000 kg | 80000 kg | 72000 kg | 56000 kg | W-24812C |
48 TON | ORANGE | 300 mm 8ply | 38400 kg | 96000 kg | 86400 kg | 67200 kg | W-24812D |
