Water Well Drilling Rig

Listing ID #600131

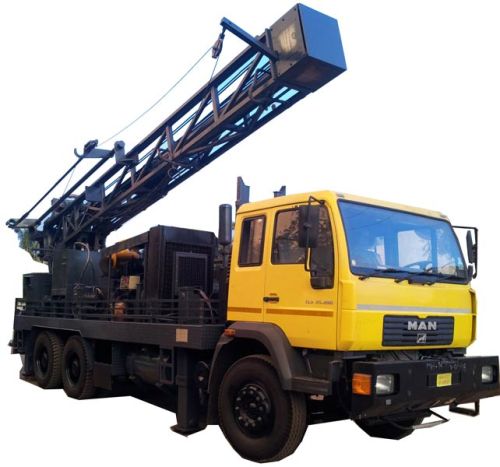

Avail from us water well drilling rig (dth 600) that finds application in a host of industries. We are a famed name as water well drilling rig manufacturer, exporter and supplier in andhra pradesh, india. The water well drilling rig range, provided by us, is reckoned for seamless construction and efficient operation. brief description

• the dth600 drill rig is ideal for water well drilling application in rock formation.
• thanks to its simple and compact design, excellent performance, high accessibility and reliability at afford cost in its class.
• the dth600 rigâ��s flexibility means it can be mounted on single truck version, two truck versions and on local truck matching the rig to the terrain it will be used.
• optional : skid mounting highlights
  • proven technology ensures easy maintenance and more productive.
  • the rig can be customized as per customer requirement.
  • all the actuators are operated by proportional control valves.
  • key specification
    • drill rod handling 15feet (4.5meters)-20 feet (6.0 meters)
    • drilling depth up to 2000feet (600meters)
    • drilling diameter 6inch (152mm)-8inch (203mm)
    • pull up force 17000kgf
    • drill head torque 360 kg.m (optional: 450 kg.m)
    • air compressor 1200 cfm320psi (optional: 1100 cfm 350 psi)
