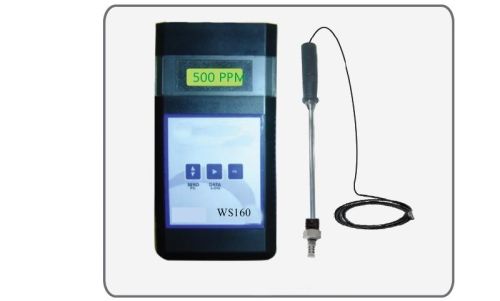

WATER-IN-OIL-METER

Listing ID #3801465

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Air or Gas samples up to 12kg/cm² pressure and temperature up to 75°C can be directly measured. For higher temperature applications, a Heat sink tubing can be used. The meter can also be connected....

View More Details

Send Enquiry

Product Details

AMM 60 Measures the dew point precisely by utilizing a highly reliable microprocessor based electronic circuit to convert the sensor signal by the use of psychometrics equations. Assembled in a ABS plastic housing, It has inbuilt sensor manifold with an orifice that means line pressure for true pressure dew point readings.

Endee Model AMM-60 Dew Point Meter, a portable instrument is designed to measure the performance of compressed air and process drying systems. It is ideal for Moisture monitoring in commercial and industrial applications.

Periodic monitoring of industrial Air systems results in a reduced maintenance cost & down time caused by condensate, the leading cause of corrosion in pneumatic systems.

Handy and Light Weight
Instant Direct dew point reading
Digital Display
Over all range - 60° C TO + 30°C
Samples Pressure Upto 12 Kg/C2M
Inbuilt Thin film water vapour sensor
Optional RS 232 Computer Interface & Data Logger

PRINCIPLE	CAPACITIVE THIN FILM Polymer
DEW POINT RANGE	- 60° C TO + 30°C
MOISTURE.	0 - 23000 PPM
ACCURACY	+/- 2% of FS
MAXIMUM SAMPLE TEMP.	75°C
MAXIMUM PRESSURE	12kg/cm
RESPONSE TIME	10 SECONDS FOR 63% STEP CHANGE
DISPLAY	3 1/2 DIGIT LCD (Alpha Numeric)
POWER	Rechargeable Batteries
INLET SAMPLE PORT.	1/4” OD TUBING
DIMENSIONS.	196 X 100 X 40 mm ABS ENCLOSURE
WEIGHT	1/2 KG
ADDITIONAL FEATURES (OPTIONAL)
Computer Interface	RS-232 link for Data in ASCII Delimited Format, 2400 Baud 8 Bits, 1 Stop, 1 Start, No Parity.
Data Logger	32 Kbyte, Non-Volatile Memory
ACCESSORIES	Charger working on 230V AC 50 Hz, Instruction manual, calibration test certificate, Leather carrying case, 5LPM flow meter, 2 mtr teflon tubing
