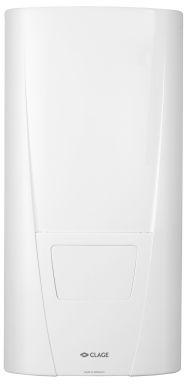

The basic model of the electronic instantaneous water heater series requires no operating elements whatsoever. As a result, the DBX is available for a surprisingly favourable price.

1. Electronically controlled basic instantaneous water heater for multipoint applications
2. The output power is automatically adapted according to the flow rate and inlet temperature; outlet temperature factory set to 50 °C (internally adjustable)
3. Electronic safety system with temp­era­ture and pressure cutoff
4. Easy to install thanks to open mounting space and variable connection options
5. Performance:
   DBX 18: 18 kW 400 V (approx. 7 l / min 50°C)
   DBX 21: 21 kW 400 V (approx. 8 l / min 50°C)
   DBX 24: 24 kW 400 V (approx. 9 l / min 50°C)
   DBX 27: 27 kW 400 V (approx. 9 l / min 50°C)
6. Dimensions (H × W × D): 46.6 × 23 × 9.7 cm
7. Energy efficiency class A
