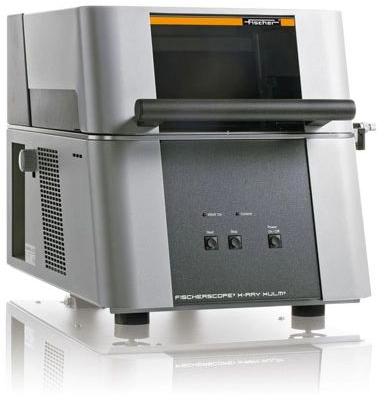

Wafer Frame Coating Thickness Measurement System

Listing ID #6156683

Get Latest Price

Power ConsumptionMax. 120 W
DesignBench-top Unit with Hood Opening
Power SupplyAC 115 V or AC 230 V 50 / 60 HzAC 115 V or AC 230 V 50 / 60 Hz
Aperture4x Changeable
Supply Type Exporter, Supplier, Retailer, Importer
Preferred Buyer Location All over the world

View More Details

Product Details

Power Consumption Max. 120 W
Protection Class IP40
Power Supply AC 115 V or AC 230 V 50 / 60 HzAC 115 V or AC 230 V 50 / 60 Hz
Design Bench-top Unit with Hood Opening
Brand Name Fischer
Aperture 4x Changeable
Dimension 660 x 835 x 720 mm

Coating thickness gauge for electroplating and electroless coatings XDV-U or X-Ray Fluorescence Tester is available in various technical specifications. These are widely used for non-destructive analyses and measurements of coating thickness on very small components and structures, even with complex coating systems.
Applications

Measurements on very small flat components and structures such as printed circuit boards, contacts or lead frames
Analysis of very thin coatings, e.g., gold/palladium coatings of 0.1 ¼m (0.004 mils)
Measurement of functional coatings in the electronics and semiconductor industries
Determination of complex multi-coating systems
Automated measurements, e.g., in quality control

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

Fischer Measurement Technologies (India) Pvt. Ltd., is an ISO 9001 certified company and 100% subsidiary of Helmut Fischer Group, Germany.
Founded in 1953, Helmut Fischer is an innovative leader in supplying instruments and solutions for precise material analysis, Gold Testing Machine, coating thickness, micro hardness and material testing (electrical conductivity, ferrite content measurement, anodic sealing and porosity testing). Based on its extensive experience, the company is able to offer optimal solutions for projects in any of these fields.
Helmut Fischer is active around the globe with 23 Fischer subsidiaries including India and 32 sales offices in all key industrialized countries.
Fischer Measurement Technologies (India) Pvt. Ltd. is incorporated in India in April 2006 with its head office at Pune and today Fischer instruments are used successfully in the field of automotive, auto-components, electroplating, powder coating, electronics, electrical, galvanizing, jewellery, hallmarking, research & development and various other industries.
We are committed to provide our customers with international quality products and services to augment and enhance their quality, productivity and reliability of their end products.
We offer comprehensive range of products using x-ray fluorescence, beta backscatter, magnetic, magnetic induction, eddy current, electrical resistance or coulometric methods. Our highly dedicated team of sales, service and application engineers are available to offer optimum solution and support in line with your requirements.
