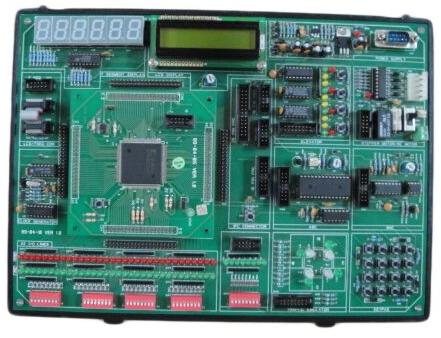

VLSI TRAINER KIT ALS-SDA- FPGA - 04

Listing ID #3384521

32 inputs using 8-way four DIP switches. Each input of these switches has an LED indication.
32 outputs through output ports of FPGA connected to LEDs.
16x2 Alpha�Numeric LCD display with back-light through 10 PIN FRC Connectors to FPGACPLD port pins.
Six-digit 7-segment displays connected through 10 PIN FRC connector to FPGACPLD port pins .
4x4 key matrix.
10 MHz, 5 MHz, 1MHz, 500 KHz, 100 KHz - five different clock frequencies.
On-board Relay connected using 10 pin FRC to FPGACPLD port pins.
On-board Traffic Light Simulator connected to FPGACPLD port pins using 16 pin FRC.
On-board ADC connected to FPGACPLD port pins using 16 pin FRC.
On-board DAC is provided to generate different waveforms and it is connected to FPGACPLD port pins using 16 pin FRC.
On-board four level Elevator connected to FPGACPLD port pins using 16 pin FRC.
Two-pin reliamate is provided on the board to connect external DC motor and it is connected to FPGACPLD port pins using 10 pin FRC.
5-way PowerMate is provided to connect external stepper motor and it is connected to FPGACPLD port pins using 10 pin FRC.
26-PIN FRC header with Cable for connecting to ALS standard interfaces.
8 inputs using 0ne DIP switches. Each input of these switches has an LED indication.
One push button
Four sets of 20x2 female berg connector to plug the DAUGHTER BOARD
