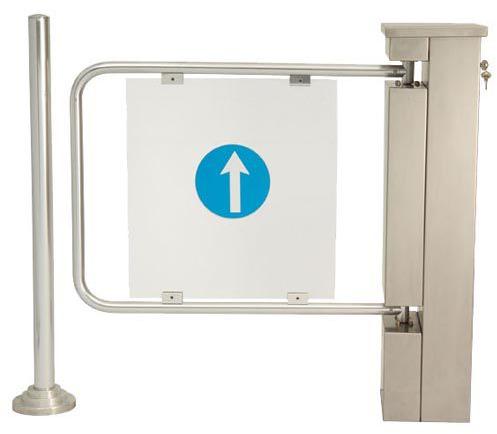

VIP Swing Gate With Wide Arm

Listing ID #283458

Get Latest Price

ApplicationUnique input and output sound effects; pass alert blinkers; optional body colors.
Dimensions940 x 200 x 260 mm
Emergency ModeControl opportunity linking to security systems (automatic free pass mode in emergency situations, and fire alarms) is available. Emergency passes can also be made by remote control. This way, the tourniquets allows for emergency exits.
Smart ArmThe tourniquet may feel any objects it touches during its back and forth movements and react accordingly.
Supply Type Manufacturer, Exporter, Supplier, Trader
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Application Unique input and output sound effects; pass alert blinkers; optional body colors.
Control For pass triggering, it may be used by dry contact or 3-50 V dc impact, or by direct PC control with TTL, CMOS or RS232-RS422-485 can be used.256 swing gates can be controlled by a single PC. All sorts of access control units and other peripherals may be
Technical Service Fast and uninterrupted high-quality, expert technical support throughout Turkey, Turkish Republic of Northern Cyprus, Central Asia and Balkans.
Operational Temparature (-20), (+50) C
Sensor Control In the event that a person stands in front of the tourniquet arm during passing, arm's movement will be prevented thanks to the security sensor even in triggering situation for the closing of tourniquet by any control unit. In the event that passing is co
Display Panels Tree-phase light indicator ensures pass control of system.Green arrow flashes if the tourniquet is ready for the pass. Green arrow is continuously on when one has been permitted to pass. At the moment one has passed througt the tourniguet, red X signal is
Remote Control It may be controlled by button (30 m) or keyless (3 m) remote controls. Thanks to the keyless command module attached to the key holder or that the personnel will keep with them, when one approaches 3 meters to the tourniquet, the tourniquet recognizes th
Emergency Mode Control opportunity linking to security systems (automatic free pass mode in emergency situations, and fire alarms) is available. Emergency passes can also be made by remote control. This way, the tourniquets allows for emergency exits.
Quality Standards TSEK, ISO 9001:2008
Smart Arm The tourniquet may feel any objects it touches during its back and forth movements and react accordingly.
Length of Arm 750, 900 mm or intermediate lengths
Button Control Also works with a single or double button control. In single button control, tourniquet will make its subsequent movement (closes if open, opens if closed) every time the button is pressed. In double button control, there are separate buttons for opening
Warranty 2 years
Body 1,2 mm 304 quality stainless steel or electrostatic paint.
Extras Required feed tension conditions may be provided depending on customer requirements.Optional features are available with the system. Custom solutions may be produced.
Dimensions 940 x 200 x 260 mm
Power Consumption 60 Watt
Power Input 100 - 240 V AC
Time Control If you wish the tourniquet to close automatically some time after opening, it has a time control adjustable to the desired time.
System It has been designed with a microprocessor control.It has bidirectional operation. It has a data output on the pass direction. This output can be either a digital output or be directly sent to a PC when controlled by a PC.
