VIBRO- SEPERATOR

GENERAL :
The vibro seperator is system design for recycling of various scraps and work as heart of the recycling industries. The system consists of two different stages in single operation. The system is having combination of magnetic seperator and vibratory screening machine in a single operation. Advantages of the vibro-seperator recovery of valued material. The system is very efficient and having low operational cost compare to the recovery of valued material or metal

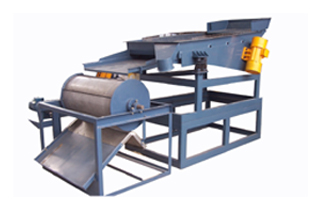

The system is available in two different design as shown in pictures.

1. As shown in picture no.1 the crushed material to be feed in the vibratory screen and will be screened out , undersize material will be directly feed to magnetic seperator , the magnetic seperator will separate the magnetic material , thus we can achieve screening and magnetic separation in single operation .

i.e In steel industries induction furnace slag having some percentage of MS , the slag will be crushed and charged to vibro seperator , the undersize is directly fed to magnetic seperator and we get the recovery of MS without slag impurities.

2. As shown in the picture no. 2 the crushed material to be fed to magnetic seperator first and than it go to vibratory screen.

i.e In rubber recycling industries rubber scrap will be crushed and charged to magnetic seperator , it separate the steel wires and the material directly fed to screening machine and they get the screen rubber material without iron imurietreis,
Features: Heavy Duty Construction, Low Maintenance, Noiseless in operation, Available in Single, Double & Triple Decks, and Dust Proof cover optionally provided. Standard available sizes are of 1500 mm (L)x 600 mm (W), 2000 mm (L)x 1000 mm (W), 2500 mm (L)x 1200mm (W). Special customized sizes can be designed as per requirments.

Applications: Vibro seperator are most useful in industries like foundry / induction furnace slag , rubber recycling industries , Aluminum scrap recycling industries , Iron powder manufacturing industries , House west recycling industries, plastics west recycling , and allied industries.
