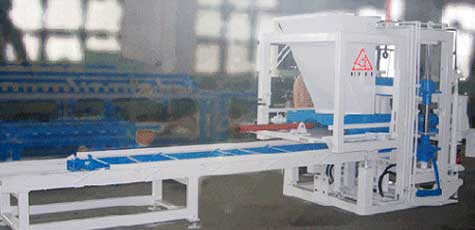

Vibrating Tables RTQT4

Listing ID #80173

Capacity(based on double shift of 300 days and standard block of 390x190x190mm)

• RTQM4: 4 pieces/pallet
• Capacity/Hour: 960standard blocks
• Theoretic Capacity / year: 64,000cubic meters

Main Features:

• Integrated vibrating table and synchronous vibrate system.
• The section steel frame and advanced welding process making machine strong.
• Driven shaker grate with composite move for material feeding.
• Hydraulic components are from overseas.
• Operation is smoothly and reliable.
• PLC control system is Siemens. Control system with automatic operation, inter operation and manual operation.
• The Dimension is very small. For the settlement, a simple workshop is ok. The investment is not big and organization for production is flexible. The range of products is vast.

Main Technical Parameter:

• Operation cycle: 15-28s (depending on the types of products)
• Height of product: 50-200mm
• Pallet size: 900 x 550 x30~ 35mm (wood)
• Work area: 820x500mm
• Machine power: 25kW
• Dimension of machine: 4210x1500x2542mm
• Weight of machine: approximate 6000KG
