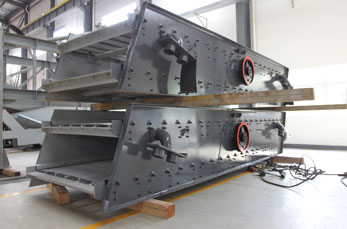

Vibrating Screen

Listing ID #4366057

Get Latest Price

Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

The vibrating screen is a kind of sieving equipment of international advanced level, developed by our company on the basis of carrying on the advantages of traditional screens and absorbing the....

View More Details

Send Enquiry

Product Details

The vibrating screen is a kind of sieving equipment of international advanced level, developed by our company on the basis of carrying on the advantages of traditional screens and absorbing the outstanding technology from abroad. Now they are installed in about 130 countries of the global market.

Features

Long flowing line many screening specifications
Strong violent vibrating force High screening efficiency
Small vibrating noises Firm and durable construction
Convenient maintenance and safe operation

Application

Vibrating Screen is widely used for grading and screening materials in the following fields: minerals, quarry, building materials, water conservancy and hydropower, transportation, chemical industry, smelting and so on. For material quality of screen mesh is changeable, the application is quite extensive.

Technical Data

Model	Deck dimension (mm)	Decks	Leaning angle of screen (℃)	Top deck max.opening (mm)	Maximum feed size (mm)	Speed (r/min)	Double amplitude (mm)	Capacity (t/h)	Power (kw)	Overall dimension (mm)
2Y1237	1200×3700	2	20	3-50	200	970	8	7.5-80	15	4010×2250×2660
3Y1237	1200×3700	3	20	3-50	200	970	8	7.5-80	15	4010×2250×3140
2Y1548	1500×4800	2	20	5-50	400	970	8	50-208	15	5120×2590×3060
3Y1548	1500×4800	3	20	5-50	400	970	8	50-250	15	5120×2590×3540
2Y1848	1800×4800	2	20	5-80	400	970	8	50-260	18.5	5120×2950×3060
3Y1848	1800×4800	3	20	5-80	400	970	8	50-300	18.5	5120×2950×3540
2Y1860	1800×6000	2	20	5-80	400	970	8	50-300	18.5	6260×2950×3480
3Y1860	1800×6000	3	20	5-80	400	970	8	50-350	22	6260×2990×3960
2Y2160	2100×6000	2	20	5-150	400	730	6-8	100-500	22	6270×3410×3670
3Y2160	2100×6000	3	20	5-150	400	730	6-8	100-500	30	6270×3470×4100
2Y2460	2400×6000	2	20	5-150	400	730	6-8	150-700	37	6270×3770×3610
3Y2460	2400×6000	3	20	5-150	400	730	6-8	150-700	37	6270×3790×4100
