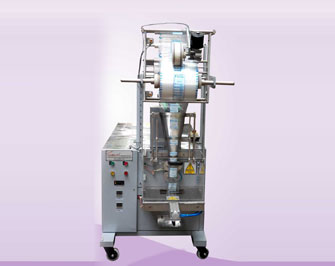

VFFS With Bucket Conveyor Machine

Listing ID #3906018

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product to be filled in VFFS With Bucket Conveyor MachineThis model is suitable for packing free flow products namely hardware items, bolts, nuts, washers, O rings, compound kits, chocolates,....

View More Details

Send Enquiry

Product Details

Product to be filled in VFFS With Bucket Conveyor Machine
This model is suitable for packing free flow products namely hardware items, bolts, nuts, washers, O rings, compound kits, chocolates, candies, beans, kurkure, chips, fryms, mixtures, camphor tablets, medicinal tablets etc.

Description of VFFS With Bucket Conveyor Machine
This is a vertical form, fill and seal machine for packing all types of granular gravity flow products. This machine shall make center seal pouches.
This model is mainly designed to pack 10 gm to 100 gm product packing. Maximum reel width can be used in this model is 250 mm open width with 76 mm core ID, 250 mm OD.
Pouch length is controlled by electromagnetic clutch brake and two pairs of vertical sealing rollers which is synchronized with PLC and print registration sensor as well as shaft encoder.
Unprinted packing material can also be used in this machine.

Technical Information About VFFS with Bucket Conveyer Machine

VFFS With Bucket Conveyor Machine output
Maximum speed up to 30 packs per minute depending on properties of the powder and accuracy of filling

Filling Range
Minimum 10 gm to maximum 100 gm factory set

Pouch Range
Pouch Width : Minimum 50 mm to Maximum 120 mm
Pouch Length : Minimum 100 mm to Maximum 200 mm

Packing Material
Machine is designed for most types of Heat Sealable Laminate up to maximum of 200 gauge.

VFFS With Bucket Conveyor Machine control
Electrical Panel with Omron Make PLC

Main drive
Horizontal sealers will be pneumatically actuated, Pulling with be with mechanical clutch system,

Electrical Data
Power supply: 230 VAC, 1 phase with ground connected

Motor Drive
1 Hp, 440 VAC, 50 Hz, 3 phase with VFD

Air
275 Liter Per Min at 6kg/CM2

Heaters
250 Watt or 300 Watt X 4 heaters

Temperature controller
Omron or Selectron make PID controller

Photocell control
Omron or datalogic make

Length X width of machine
700 mm X 2700 mm with bucket conveyer

Height of machine
1850 mm including roll

Nett Weight of machine
250 Kilogram

Optional arrangements

• Batch cutting facility,
• Online printing,
• Online label applicator,
• Pouch take off conveyer,
• Product infeed systems,

Optional filling systems

• Cup filler
• Auger Filler
• Weigh Filler
• Syringe Filler
• Counting mechanisms

We are leading VFFS With Bucket Conveyor Machine manufacturer and supplier in Navi Mumbai, India, Contact us to know the best price of the VFFS With Bucket Conveyor Machine
