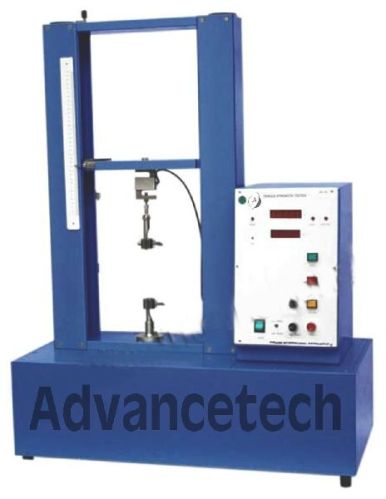

Advancetech Vertical Tensile Tester

Listing ID #3553417

1 Lakh - 2 Lakh / Pcs
Get Latest Price
  • MOQ 1 piece
  • Brand NameAdvancetech
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world

 Tensile Strength, the maximum force developed a test specimen before rupture on the tensile test carried to rupture under prescribed conditions. Tensile Strength (as used here) is the force per....
View More Details
Send Enquiry

Company Information

Mandi Samiti Road, Saharanpur, Uttar Pradesh
08048775720
  • Member Since 7 Years
  • Nature of Business Retailer
  • GST No. 09AXJPR5497G1ZP

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

 Tensile Strength, the maximum force developed a test specimen before rupture on the tensile test carried to rupture under prescribed conditions. Tensile Strength (as used here) is the force per unit width of test specimen. Stretch, the maximum tensile strain developed in the test specimen before ruptrure in a tensile test carried to rupture under prescribed conditions. The stretch (or percentage elongation) is expressed in a percentage i.e. one hundred times the ratio of the increase in length of the test specimen to the original test span.
Details :

  • Tensile energy absorption (TEA), the work done when the specimen is stressed to rupture in tension under prescribed conditions as measured by the integral of the tensile strength over the range of tensile strain from zero to maximum strain. The TEA is expressed as energy per unit area (test sapn X width) of test specimen.
  • Breaking Length, the calculating limiting length of strip of uniform width, beyond which, if sucha strip were suspended by one end, it would break of its own weight.
  • Tensile Index, the tensile strength in N/m divided by grammage.


Specification

Mains Supply 220 Volts ±10%, 50 cycles
(if not otherwise specified in your order and acknowledge by us)
Load Sensor 50.0 kg. or depend on requirment
Measuring Range 499.9N
Accuracy Better than ± 1% of force reading, but not better than ± 1
Display 4 1/2 digit display or lcd display
Clamps Tightening clamps for 15 mm wide strips
Strip Dimension 15 x 180 mm
Clamping length 0-350 mm adjustable
Power Requirement Capacity 500 Watt
Fuse 5 Amp. Glass tube fuse
Deformation Speed Selected/Variable
Automatic return of platens after rapture
Electronic overload protection at load cell capacity
