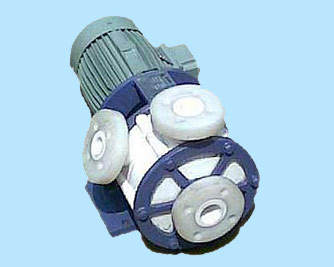

Vertical Sealless And Glandless Pumps

Listing ID #4264029

LEAKLESS (INDIA) ENGINEERING Offer LVGP Series Vertical Sealless And Glandless Pumps Normal hydraulic terms do not differ from any conventional centrifugal pump. No mechanical seal or gland, so no breakdown of pump. The pump is designed in such a way that the liquid would normally try to pass through annular space , Where the impeller drive shaft enters the back plate (stuffing box).This liquid is diverted and returns as a controlled flow to the suction tank. The need for any seal is eliminated by allowing the leakage liquid to escape through the overflow connection to the overflow chamber. The liquid entering the suction flows around the impeller casing and leaves through the delivery under pressure. Between the annular gap of the upper rotor casing and impeller some leakage liquid escapes to the overflow chamber. The auxiliary impeller (Expeller) prevents the leakage liquid going further up and channelizes it through outlet in the overflow chamber. These pumps are ideally suited for continuous operation for clear liquid and slurries. This pump is at its best with negative suction. Compact design to save precious space. No seal or gland so 100% leak proof. No Coupling so no vibration and noise

• POLYPROPYLENE (P.P)
• ULTRA HIGH MOLECULAR WEIGHT (UHMW-PE)
• POLYVINYLIDENE FLUORIDE (PVDF)
• GLASS FILLED POLYPROPYLENE (G.F.P.P)
• POLYTETRAFLUOROETHYLENE (PTFE)
• CAST IRON
• CAST STEEL (WCB)
• CD4MCu
• S.S 316 (CF8M)
• S.S 304 (CF8)
• S.S 316L (CF3M)
• HASTELLOY B (N12MV)
• HASTELLOY C (CW12MW)
• ALLOY 20 (CN7M)
• DUPLEX SS (GRADE 4A,5A,6A)
• NICKEL (CZ-100)
• MONEL (M-35)
• CARPENTAR 20 (CK-20)
• NI-HARD
• BRONZE
• GUN METAL
• HARD METAL CASTING
•
  Applications And Industries Served
  • UNDERGROUND TANK UNLOADING
  • ACID TRANSFER
  • SPRINKLE SYSTEMS
  • FILTERPRESS UNIT
  • LOADING/UNLOADING
  • EFFLUENT TREATMENT PLANT
  • PICKLING PLANT
  • COOLING TOWERS
  • SOLVENTS UNLOADING
  • WATER TREATMENT
  • ELECTRO PLATING
  • SCRUBBER UNIT
